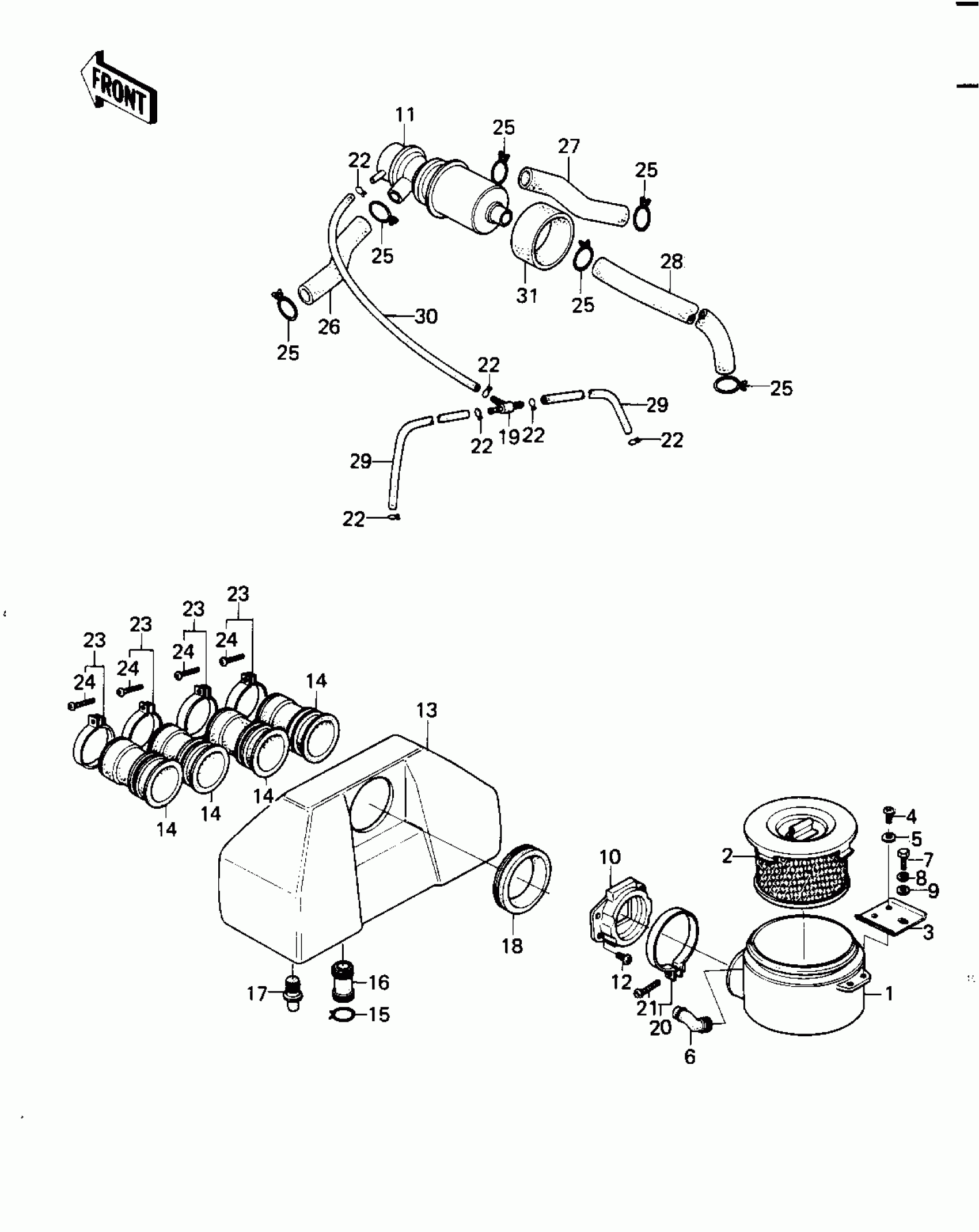

Kawasaki Classic AIR CLEANER Diagram

#

Description
Price

1

BODY,AIR CLEANER

11011-1053

Unavailable

2

ELEMENT,AIR CLNR

11013-1032

Unavailable

3

BRACKET,AIR CLEANER

11034-1737

Unavailable

4

SCREW-PAN-CROS,6X14

220B0614

$1.14

5

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

6

TUBE,AIR SWITTING VLV

92059-1136

$11.29

7

BOLT-UPSET,6X12

112G0612

Unavailable

8

WASHER SPRING 6MM

461F0600

Unavailable

9

WASHER PLAIN 6MM

411B0600

Unavailable

10

HOLDER,AIR FLOW METER

16065-1032

$46.68

11

VALVE ASSY,AIR SWITNG

16126-1015

Unavailable

12

SCREW PAN HEAD 6X12

220B0612

Unavailable

13

CASE,SURGE TANK

11011-1054

Unavailable

14

DUCT,THROTTLE VALVE

14073-1042

Unavailable

15

CLAMP BREATHER PIPE

92037-028

Unavailable

16

TUBE,BREATHER

92059-1119

$4.88

17

PLUG

92066-1048

$4.78

18

SEAL,AIR FLOW METER

92093-1043

$14.32

19

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

20

CLAMP

92037-068

$11.86

21

SCREW PAN HEAD 6X35

220B0635

$1.24

22

CLAMP,TUBE

92037-072

$6.16

23

CLAMP,HOLDER

92037-077

$9.55

24

SCREW,PAN HEAD

92011-037

Unavailable

25

CLAMP,TUBE

92037-213

$3.29

26

TUBE

92059-1065

Unavailable

27

TUBE

92059-1066

Unavailable

28

TUBE,14X20X480

92059-1124

$8.36

29

TUBE,4X9X110

92059-1131

Unavailable

30

TUBE,VACUUM,LONG

92059-1162

$14.40

31

DAMPER,AIR SWITCHNG,V

92075-1195

$3.32
