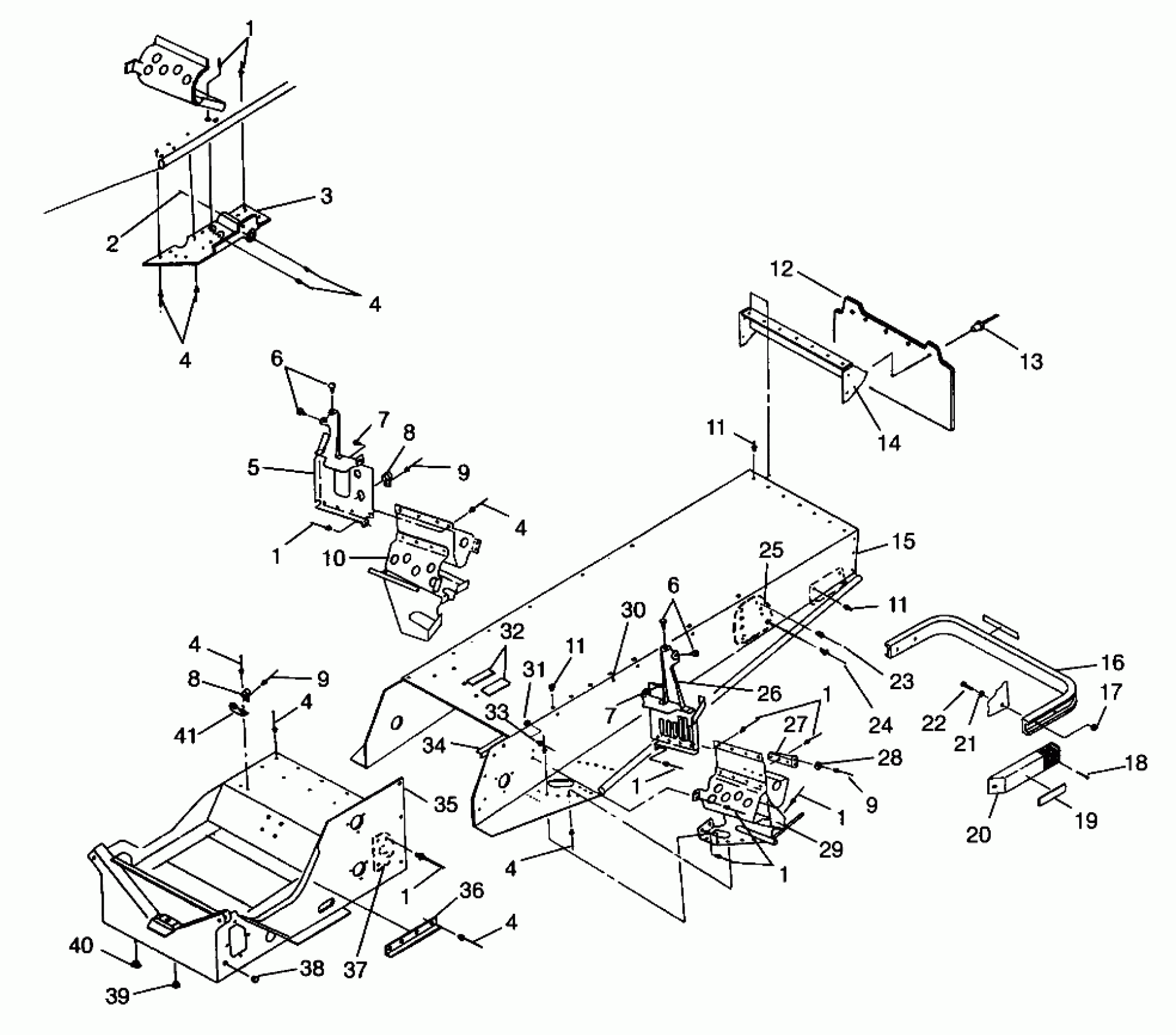

Polaris CLASSIC - 0963865 TUNNEL CLASSIC 0963865 (4935383538A005) Diagram
#
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
1
RIVET,INTERLOCK,B(50)
7661638
$1.49
2
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
3
MT,TRLG.ARM,LH,BLK.
1012054-067
Unavailable
3
MT,TRLG.ARM,RH,BLK.
1012055-067
Unavailable
4
RIVET-3/16-.090-.290
7661637
$1.49
4
RIVET-3/16-.090-.290
7661637
$1.49
4
RIVET-3/16-.090-.290
7661637
$1.49
4
RIVET-3/16-.090-.290
7661637
$1.49
4
RIVET-3/16-.090-.290
7661637
$1.49
4
RIVET-3/16-.090-.290
7661637
$1.49
4
RIVET-3/16-.090-.290
7661637
$1.49
5
MT,CONSOLE,RH
1011952-067
$339.99
6
BUMPER,HOOD
5410768
$2.95
6
BUMPER,HOOD
5410768
$2.95
7
SCREW(10)
7512057
$2.38
7
SCREW(10)
7512057
$2.38
8
GUIDE, RECOIL
5431385
$10.51
8
GUIDE, RECOIL
5431385
$10.51
9
RIVET,3/16X.402(50)
7621432
$1.49
9
RIVET,3/16X.402(50)
7621432
$1.49
9
RIVET,3/16X.402(50)
7621432
$1.49
10
FOOTREST ASM, RH Substituted by 1011935
1012338
Unavailable
11
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
11
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
11
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
12
FLAP,SNOW
5432033
Unavailable
13
POP RIVET(50)
7621418
$1.49
14
PANEL,TUNNELBACK
5241053
Unavailable
15
TUNNEL,LIQ.,BLK. Substituted by 1012343-067 (Incl. Heat Exchangers)
1012343
Unavailable
16
BUMPER,REAR,STD.
5224674-067
Unavailable
17
NUT-LOCK(10)
7542122
$1.49
18
SCREW(10)
7511863
$1.99
19
REFLECTOR RED
2670070
$9.91
20
CAP, BUMPER, BLK.
5430930-070
Unavailable
21
WASHER(10)
7558301
$1.49
22
BOLT(10)
7512240
$3.99
23
RIVET,SEMI-TUBE,(50)
7661841
$1.49
24
RIVET(50)
7661846
$1.99
25
PAD,LH,RR SUSP(X12),BLK
1012431-067
$19.03
25
PAD,RH,RR SUSP(X12),BLK
1012432-067
$18.23
26
MT,CONSOLE,LH
1011951-067
$35.51
27
SUPPORT,BUMPERSIDE,BLK.
5240294-067
Unavailable
28
STOP, BUMPER
5410826
Unavailable
29
FOOTREST ASM, LH Substituted by 1012544
1012337
Unavailable
30
NUT,SERT(10)
7541938
Unavailable
31
SNAP-MALE(10)
7080227
Unavailable
32
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
33
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
34
BRACE,REINF.TUNNEL
5240242
Unavailable
35
BULKHEAD, (500)
1012336-067
$573.29
36
GUARD,ADAPTER GUIDE
5222857
$12.94
37
MOUNT,RH,F.SUSP.BLK.
1012270-067
$66.99
37
MOUNT,LH,F.SUSP.BLK.
1012269-067
$66.99
38
PLUG, HOLE(10)
7080416
$5.65
39
PLUG-HOLE
7080398
$4.84
40
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
41
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
