STEERING CLASSIC 0963865 (4935383538B004)

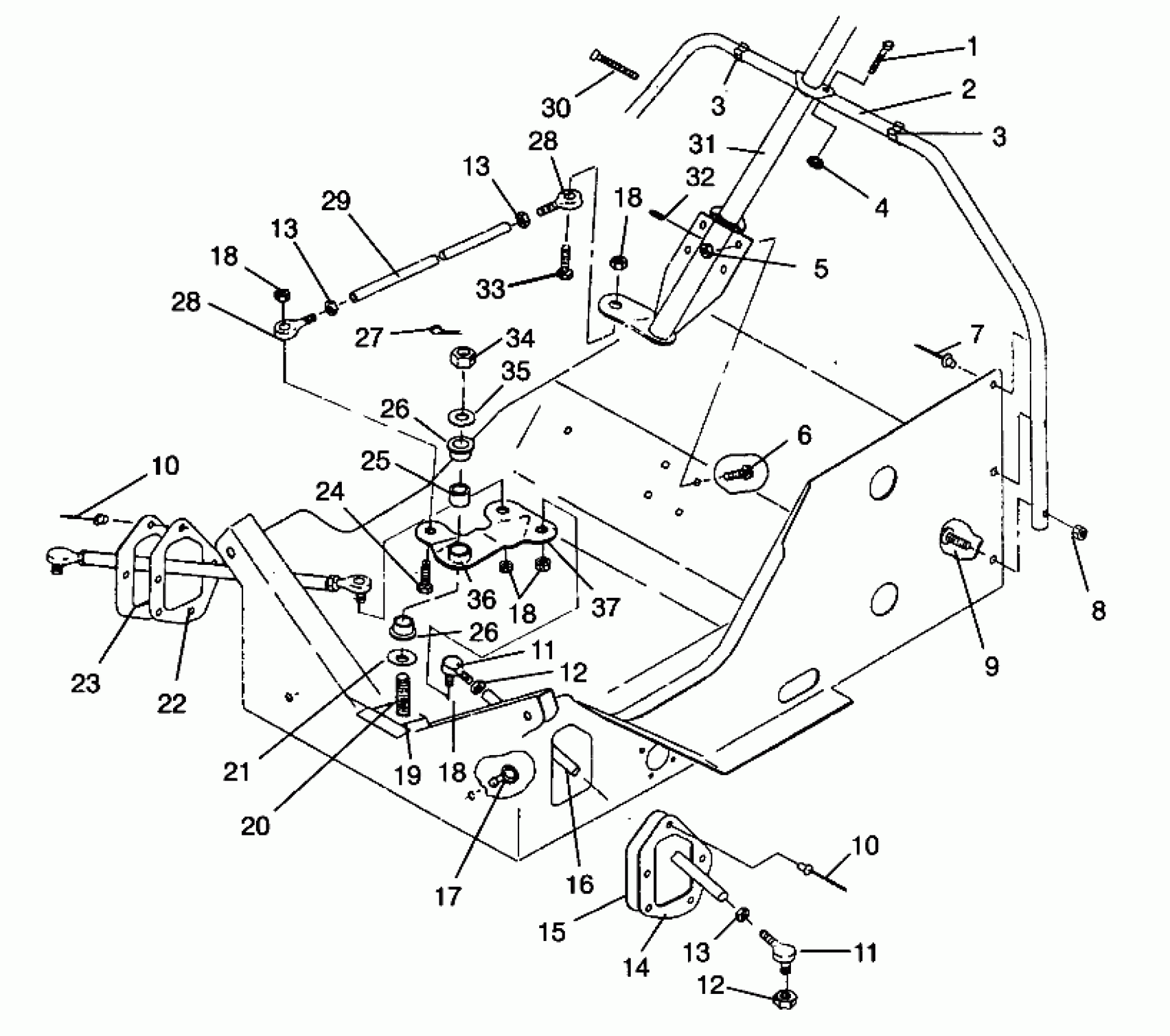

Polaris CLASSIC - 0963865 STEERING CLASSIC 0963865 (4935383538B004) Diagram
#
1
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
2
HOOP,STEERING
1012335-067
Unavailable
3
CLIP(10)
7080278
$2.63
3
CLIP(10)
7080278
$2.63
4
NUT(10)
7542124
Unavailable
5
NUT-5/16-18 NYLOK-Y
7542324
$1.49
6
BOLT(10) Substituted by 7512377
7512394
Unavailable
7
RIVET-3/16-.090-.290
7661637
$1.49
8
NUT, LOCK(10)
7542103
$5.59
9
BOLT-CARRIAGE(10)
7512275
$3.99
10
RIVET(50)
7621340
$0.56
10
RIVET(50)
7621340
$0.56
11
ROD END, RH.
7060174
$48.56
11
ROD END, LH.
7061005
Unavailable
11
ROD END, RH.
7060174
$48.56
11
ROD END, LH.
7061005
Unavailable
12
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT HEX(10)
7542401
$2.39
13
NUT
7542424
$1.49
13
NUT HEX(10)
7542401
$2.39
13
NUT
7542424
$1.49
13
NUT HEX(10)
7542401
$2.39
13
NUT
7542424
$1.49
14
PLATE,BOOTSEAT,BLK.
5211454-067
Unavailable
15
BOOT,LH,TIE-ROD
5410867
Unavailable
16
TIEROD,BLK.
5020819-067
Unavailable
17
CLIP, PLASTIC(10)
4020139
$4.79
18
NUT LOCK(10)
7542403
$3.99
18
NUT LOCK(10)
7542403
$3.99
18
NUT LOCK(10)
7542403
$3.99
18
NUT LOCK(10)
7542403
$3.99
19
BLOCK,STRG,(CAST)
5630563
$32.37
20
BOLT(10)
7512682
Unavailable
21
WASHER,WAVE(10)
7555735
$3.99
22
BOOT,RH,TIE-ROD
5410868
$12.70
23
PLATE,RH,BOOTSEAL,BLK.
5211453-067
$15.67
24
BOLT(10)
7512404
$3.99
25
BUSHING
5010340
Unavailable
26
BUSHING
3563907
$3.99
26
BUSHING
3563907
$3.99
27
PIN COTTER(10)
7661203
$1.49
28
ROD END, RH.
7060165
$48.56
28
ROD END, LH.
7060164
$48.56
28
ROD END, RH.
7060165
$48.56
28
ROD END, LH.
7060164
$48.56
29
ROD-DRAG LINK
5332712
Unavailable
30
STRAP, BLK
7080272
Unavailable
31
POST,STEERING
1822257-067
Unavailable
32
FITTING,LUB/VEN(10)
7080561
$4.79
33
BOLT(10) Substituted by 7515492
7512410
Unavailable
34
NUT FLEX,(10)
7542703
Unavailable
35
WASHER(10)
7555721
$1.49
36
ZERK,FITTING,THREADED(10)
7080433
$1.49
37
STRG.ASM,CTR. (Incl. 21, 26)
1822286
$29.60
