SEAT and GAS TANK CLASSIC 0952865 (4935383538A008)

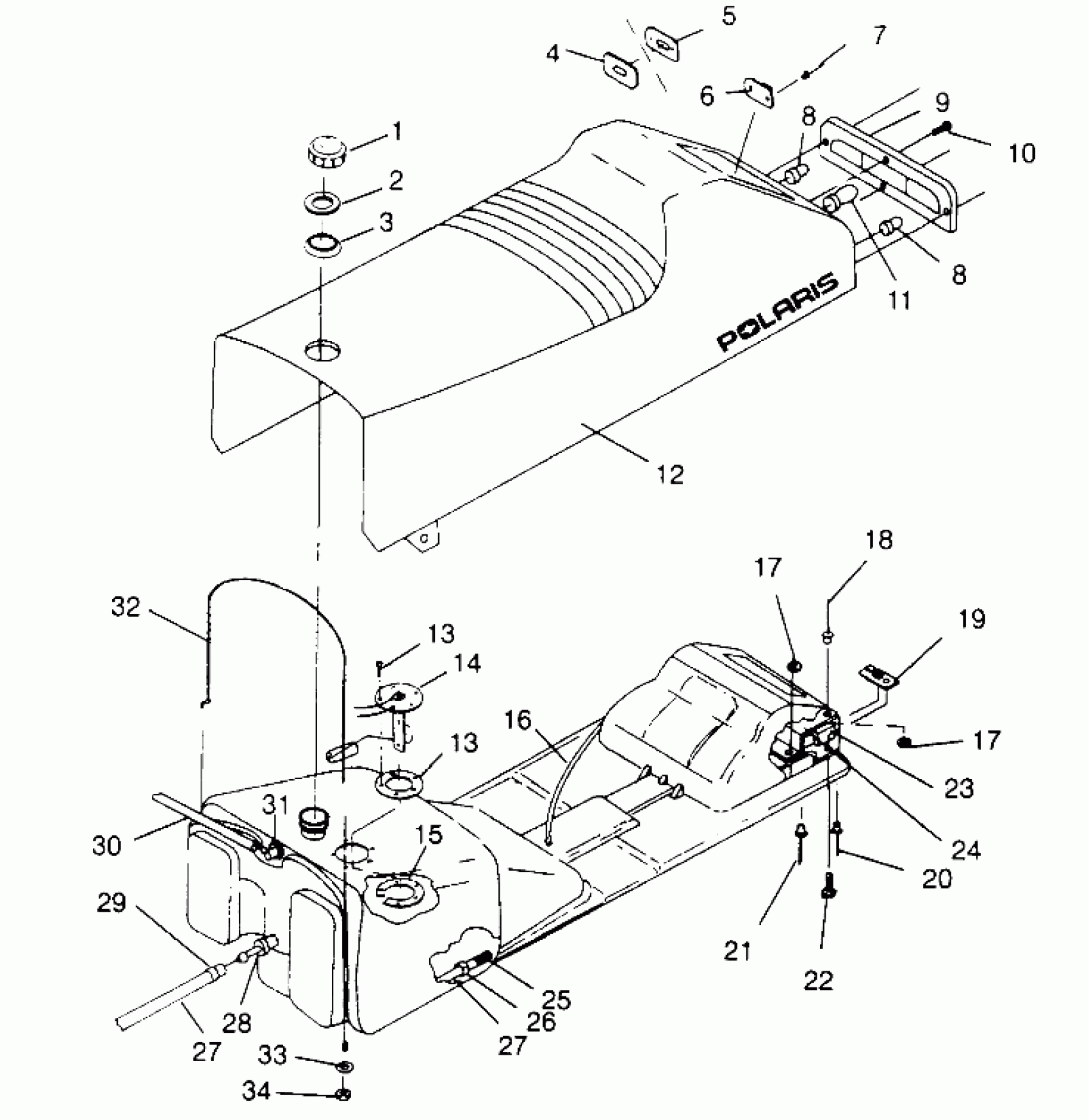

Polaris CLASSIC - 0963865 SEAT and GAS TANK CLASSIC 0952865 (4935383538A008) Diagram
#
1
CAP,FUELTANK,W/GASKET
2511226
Unavailable
2
GASKET, GAS CAP
5810513
$8.89
3
GROMMET,FUELTANK
5410815
Unavailable
4
GROMMET,RELATCH,1",BOTT.(10)
7080550
Unavailable
5
GROMMET,RELATCH,1",TOP(10)
7080549
Unavailable
6
TWISTLOCK,RELATCH,1",W/HOLE(10)
7080548
Unavailable
7
RIVET(50)
7621337
$1.49
8
BULB,TAILLIGHT(10)
4030024
$4.84
8
BULB,TAILLIGHT(10)
4030024
$4.84
9
LENS,TAILLIGHT
5430423
Unavailable
10
SCREW(10)
7511840
Unavailable
11
Bulb, Brakelight
4030045
Unavailable
12
SEAT ASM,LONG (Incl. 4-11, 13-21, 23-28, 31-34)
2681861
Unavailable
12
COVER,SEAT,LONG
2681862
Unavailable
13
HDWE.PKG,SEND.UNIT
2410012
Unavailable
13
HDWE.PKG,SEND.UNIT
2410012
Unavailable
14
SENDER,FUEL-LEVEL,W/GASKET
3280227
Unavailable
15
MTG.FLANGE,FUELTANK Substituted by 5244067
5211308
Unavailable
16
HARNESS,TAILLIGHT
2460398
Unavailable
17
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
17
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
18
RIVET, BLIND(50)
7621467
$1.49
19
NUT,RETAINER-WELD.(10)
7542147
$17.59
20
RIVET(50)
7621301
$3.99
21
RIVET(50)
7621460
$1.49
22
SCREW(10)
7512242
$2.39
23
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
24
COVER,T/L PROTECTOR
5431436
$21.43
25
PICKUP,FUEL,W/STRAINER
7052081
Unavailable
26
RING, COMPRESSION(10)
7080402
$1.60
27
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
27
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
28
FITTING - OUTLET(10)
7052023
$24.99
29
CLAMP, HOSE
7080490
Unavailable
30
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
31
FITTING,90 DEG,1/8,(10)
7052095
$4.79
32
CABLE,TANK,RETENTION
7080559
Unavailable
33
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
34
NUT(10)
7541925
$1.49
