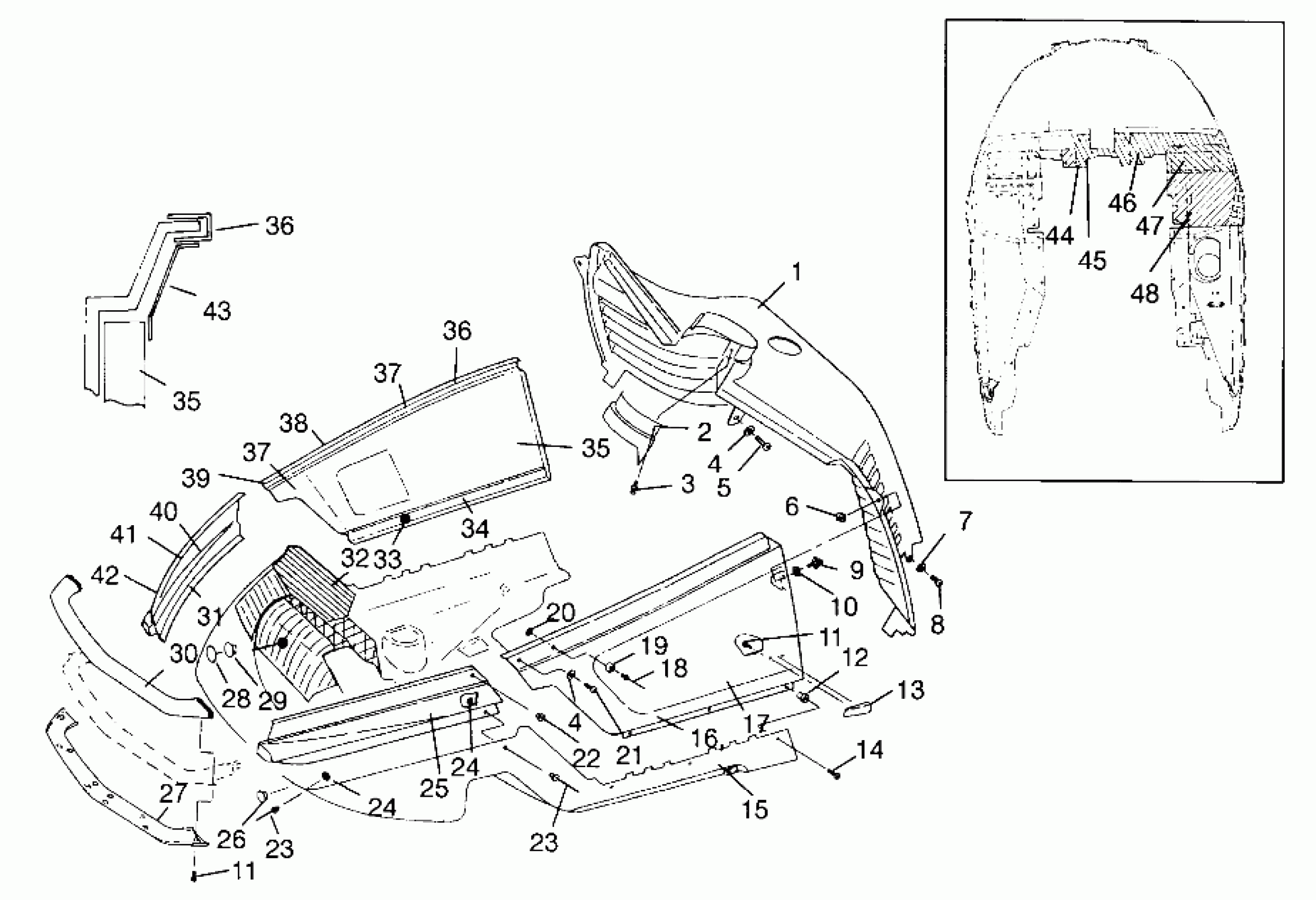

Polaris CLASSIC - 0963865 NOSEPAN CLASSIC 0963865 (4935383538A009) Diagram

#

Description
Price

1

CONSOLE,BASIC

5431467

Unavailable

2

COVER,CONSOLE

5431535

$54.35

3

RIVET,PLASTI-LOC.(50)

7621509

$1.49

4

WASHER(10) Substituted by 7558301

7555776

Unavailable

4

WASHER(10) Substituted by 7558301

7555776

Unavailable

5

SCREW(10)

7512252

Unavailable

6

NUT,RETAINER(10)

7542138

Unavailable

7

WASHER(10)

7555792

$4.79

8

SCREW(10)

7512069

Unavailable

9

RETAINER,HOODLATCH

5431502

$12.94

10

WASHER,RUBBER(10)

7555884

$5.70

11

SCREW(10)

7512068

$2.39

11

SCREW(10)

7512068

$2.39

12

NUT-WELL(10)

7541923

$5.59

13

BUMPER,SIDE PANEL Substituted by 5432456

5431662

Unavailable

14

SCREW(10)

7512279

$1.49

15

NOSEPAN,(EV,W/BATT.)

5432045

$222.22

16

PANEL,LH,SIDE,BLK.MET.

5431742-177

Unavailable

17

FOAM,LH,SIDEPANEL

5811076

Unavailable

18

RIVET(50)

7621315

$3.99

19

BUMPER,RUBBER STOP Substituted by 5411440

5410843

Unavailable

20

RIVET BURR(50)

7555756

$2.99

21

SCREW(10)

7515148

$4.79

22

RIVET(50)

7621472

$1.49

23

RIVET, BLIND(50)

7621467

$1.49

23

RIVET, BLIND(50)

7621467

$1.49

24

BURR,RIVET(50)

7555904

$1.49

24

BURR,RIVET(50)

7555904

$1.49

25

BUMPERSIDE,LH,BLK.

5431492-177

Unavailable

26

PLUG,NOSEPAN HOLE

5410820

$15.99

27

COVER,F.BUMP.BOTTOM

5431481

Unavailable

28

FOIL,TAPE,3"DIA.

5810999

Unavailable

29

PLUG,CATCH HOLE

5410582

$7.27

30

COVER,F.BUMP.TOP,BLK.

5431480-177

Unavailable

31

FOIL,SIDE BUMP,LOWER

5811085

Unavailable

32

FOIL,RH,PANSIDE,#16

5811195

Unavailable

33

FOIL,LOW.SIDEPANEL

5811071

Unavailable

34

TAPE,FOIL,100 CM. (Service)

8360044-100

Unavailable

35

FOAM-FOIL,RH,SIDEPANEL

5811070

Unavailable

35

FOAM-FOIL,RH,SIDEPANEL

5811070

Unavailable

36

FOIL,TOP,OUT.SIDEPANEL

5811075

Unavailable

36

FOIL,TOP,OUT.SIDEPANEL

5811075

Unavailable

37

FOIL,FR.SIDEPANEL

5811072

Unavailable

37

FOIL,FR.SIDEPANEL

5811072

Unavailable

38

PANEL,RH,SIDE,FOIL,BLK. (Incl. 31-37)

2610008-177

Unavailable

39

FOIL,TOP,INNER,SIDEPANEL

5811074

Unavailable

40

FOIL,SIDE BUMP,MIDDLE

5811086

Unavailable

41

FOIL-SIDE BUMPER-UPPER

5811153

Unavailable

42

BUMPER,RH,SIDE/FOIL,BLK.MT. (Incl. 29,38,39)

2610010-177

Unavailable

43

FOIL,UP.SIDEPANEL

5811073

Unavailable

44

FOIL,LH,SHOCKTOWER,#12

5811188

Unavailable

45

FOIL-CENTER, #11

5811187

Unavailable

46

FOIL,RH,SHOCKTOWER,#13

5811192

Unavailable

47

FOIL,RH,SHOCKTOWER,TOP,#14

5811193

Unavailable

48

FOIL,RH,SHOCK TOWER,LOW.

5811194

Unavailable
