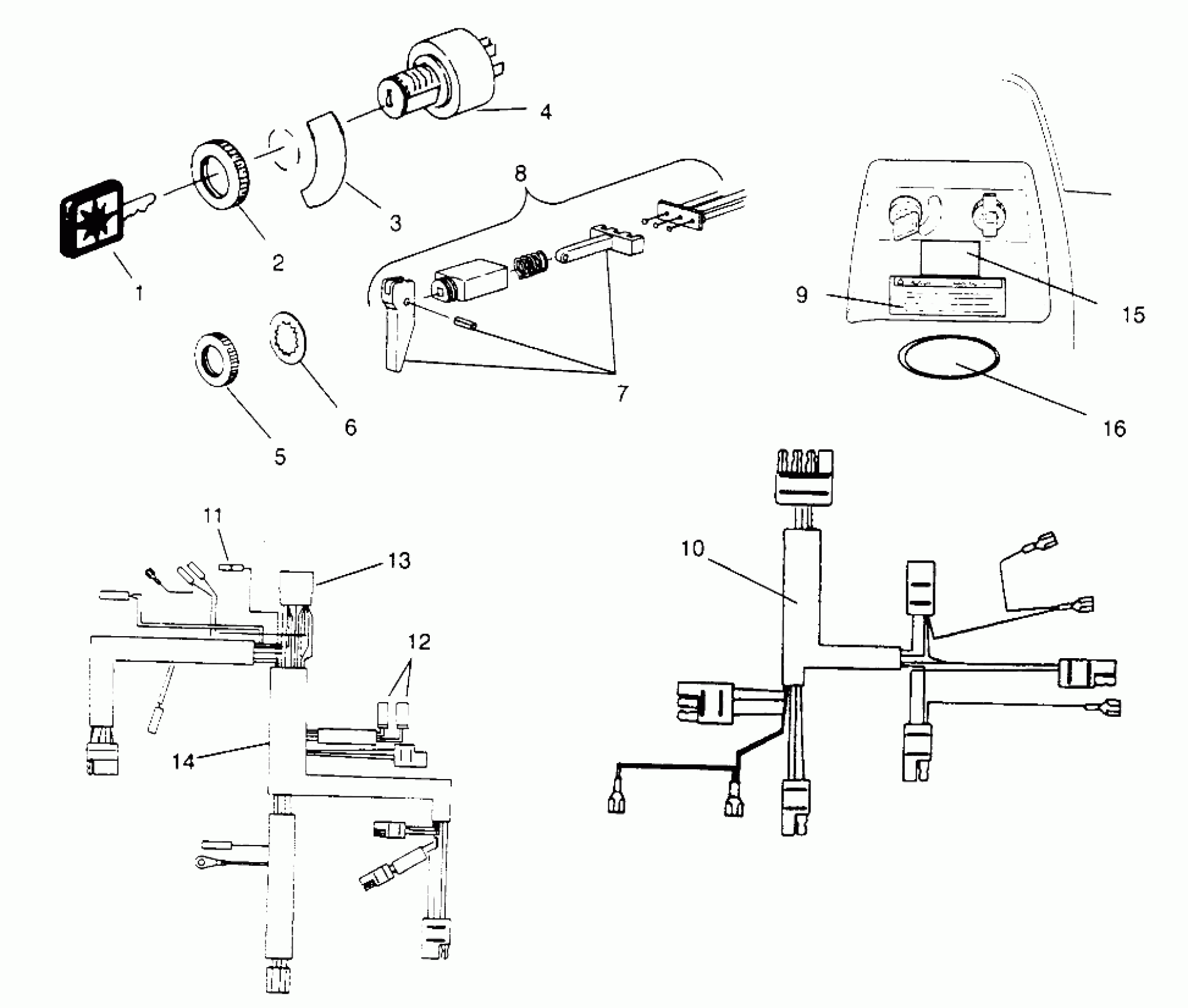

Polaris CLASSIC - 0963865 IGNITION and WIRE HARNESS CLASSIC 0963865 (4935383538A007) Diagram

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly] (See Footnote)

5410611

Unavailable

NUT, IGN.SWITCH(10)

7543101

Unavailable

DECAL,IGN.W/EL.START

7074203

Unavailable

KIT,IGN.SWITCH

2200358

$76.89

Nut

7080229

$19.99

WASHER-LOCK(10)

7571610

$3.99

KIT-CHOKE CONTROL

2200188

$24.27

Cable, Choke Control (Incl. 7)

7080290

$105.22

DECAL,"NO PASS." WARN,BLK(10)

7075438

Unavailable

HARNESS,HANDLEBAR

2460506

Unavailable

HOUSING

4020133

Unavailable

Housing

4020153

$1.49

Housing w/Receptacle

4020057

$3.51

HARNESS, MAIN

2460441

Unavailable

LABEL, 'U.S.A.'

7073024

Unavailable

LOGO,ELEC.START NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code

5432070

Unavailable
