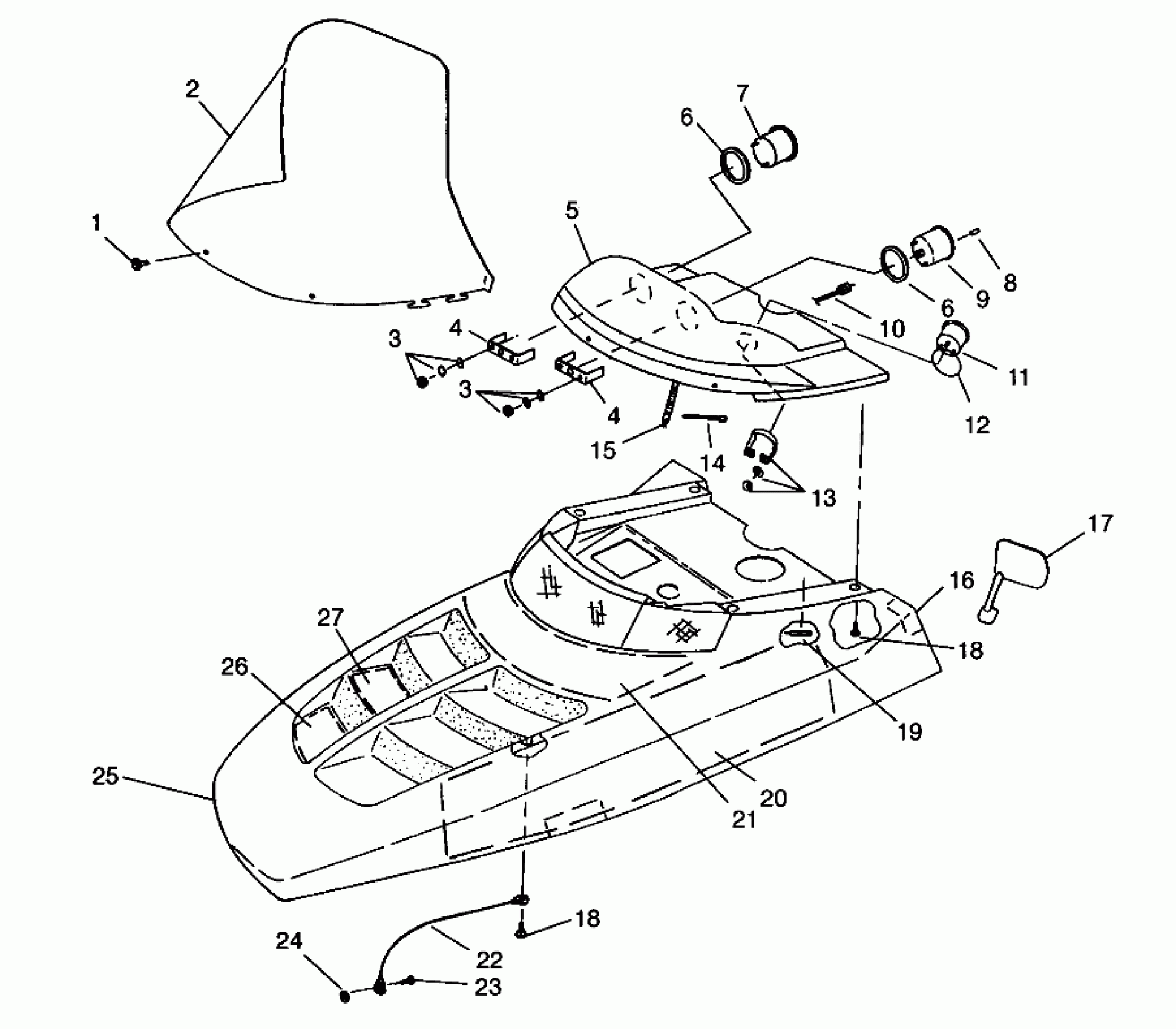

Polaris CLASSIC - 0963865 HOOD CLASSIC 0963865 (4935383538A011) Diagram
#
Description
Price
1
RIVET,PLASTI-LOC.(50)
7621509
$1.49
2
WNDSHLD,STD,SMOKE,EV.
5431930
Unavailable
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
4
BRKT,TACH/SPEEDO,5"
3280210
$28.32
4
BRKT,TACH/SPEEDO,5"
3280210
$28.32
5
HOUSING ASM,INST. (Incl. Warning Decals)
2652148
Unavailable
6
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
6
CUSHION,TACH/SPEEDO,RUBBER
3280209
$3.99
7
BULB TAILLIGHT(10)
4030015
$4.03
7
TACHOMETER,BACKLIT Substituted by 3280246 (Incl. 3, 4, 6)
3280205
Unavailable
8
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
9
SPEEDO,BACKLIT (Incl. 3, 4, 6, 8)
3280204
Unavailable
10
CABLE,SPEEDO.
3280094
$60.70
11
FUELGAUGE,BACKLIT,2"
3280226
$96.97
12
CUSHION,FUELGAUGE,(2"),RUBBER
3280230
$3.41
13
HDWE.PKG,FUEL INDIC.
3280119
$24.79
14
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
15
HARNESS, H/L
2460528
Unavailable
15
FUSE,(.2 AMP) Substituted by 4060139
4060134
Unavailable
16
FOIL,TAPE,1.5X6
5810949
$3.19
17
PR,MIRRORS,R.VIEW
2870938
Unavailable
18
SCREW(10)
7512070
Unavailable
18
SCREW(10)
7512070
Unavailable
19
RETAINER,WINDSHIELD,(10)
5410970
$1.49
20
FOAM,LH,HOOD
5810876
Unavailable
20
FOAM,RH,HOOD
5810877
Unavailable
20
FOIL,RH,HOOD
5810905
Unavailable
21
FOAM,HOOD,CTR.
5810875
Unavailable
22
CABLE,HOOD RETAINER
7080521
$24.27
23
SCREW(10)
7511930
$2.39
24
NUT FLEX LOC(10)
7541906
$3.19
25
HOOD ASM. (Incl. 20-21)
2631591-204
Unavailable
26
FOIL,HOOD,FRONT
5810874
Unavailable
27
FOIL,HOOD,CTR.
5810873
Unavailable
