DRIVE TRAIN CLASSIC 0963865 (4935383538B009)

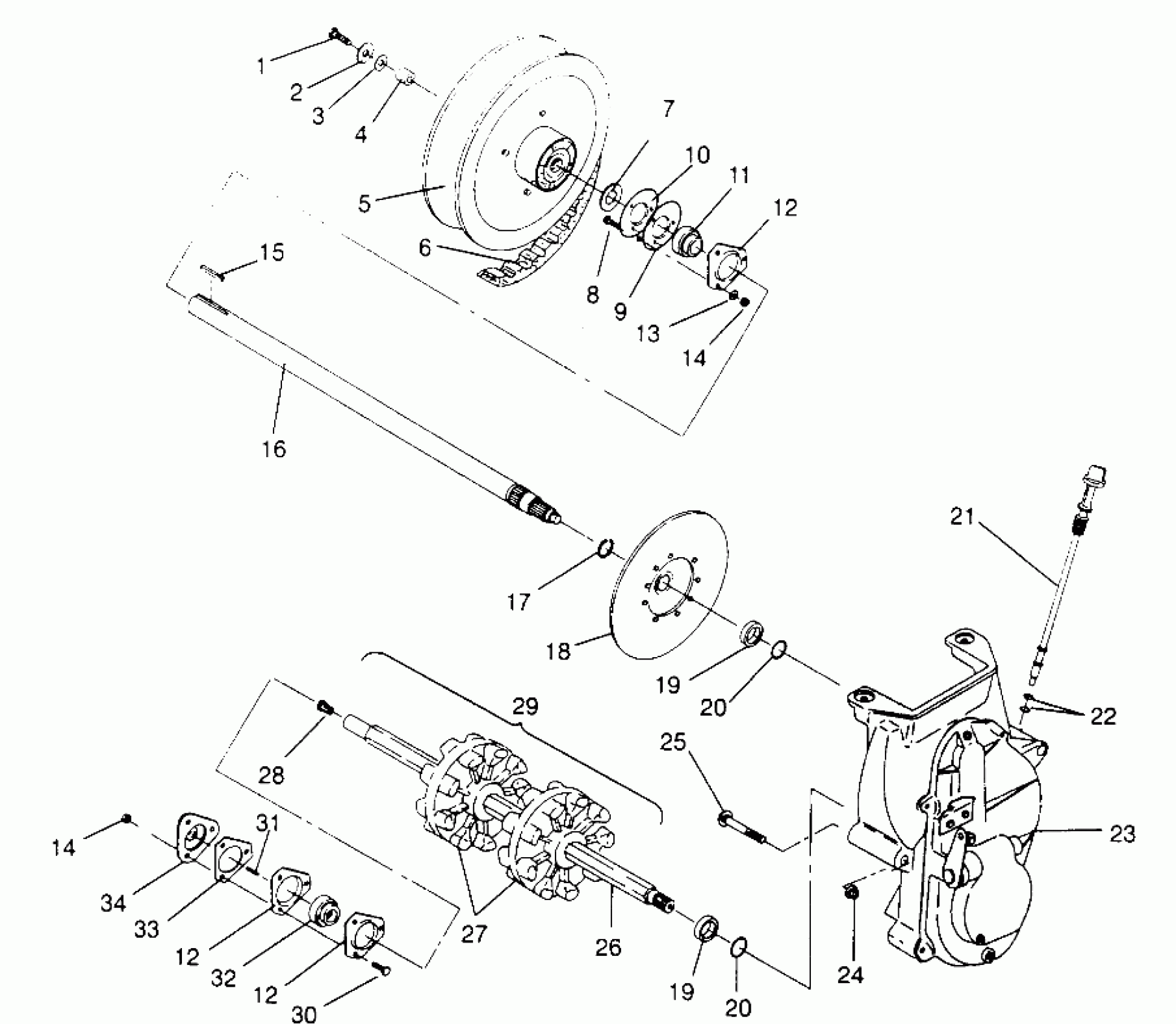

Polaris CLASSIC - 0963865 DRIVE TRAIN CLASSIC 0963865 (4935383538B009) Diagram
#
Description
Price
1
BOLT(10)
7515301
Unavailable
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER
5020291
Unavailable
5
Asm., Driven Clutch (See Pg. A29, Ref. 15)
-------
Unavailable
6
BELT DRIVE(5)
3211042
$109.99
7
WASHER SPECIAL(10)
7556509
Unavailable
8
BOLT(10) Substituted by 7512377
7512394
Unavailable
9
GASKET,JACKSHAFT,BLK.
5811095
$2.41
10
FLANGE RD,RELUBE W/ZERK
5241359
$32.37
11
BEARING,JACKSHAFT
3514519
$64.99
12
FLANGETTE
5222751
$16.44
12
FLANGETTE
5222751
$16.44
12
FLANGETTE
5222751
$16.44
13
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
NUT-5/16-18 NYLOK-Y
7542324
$1.49
15
KEY-SQUARE(10)
7721204
$3.19
16
JACKSHAFT,15T SPLINE Substituted by 1332167-171 (Incl. 17)
1332167
Unavailable
17
RING, RETAINING(10)
7710422
$3.99
18
DISC ASM, BRAKE
1910086
Unavailable
19
SLEEVE, SEAL
5020588
$23.99
19
SLEEVE, SEAL
5020588
$23.99
20
O RING,(10)
5410613
$1.99
20
O RING,(10)
5410613
$1.99
21
DIPSTICK Substituted by 1332143
5431419
Unavailable
22
O-RING
5410675
$1.60
23
Cover, Chaincase (See Pg. A21, Ref. 17)
-------
Unavailable
24
NUT(10)
7542423
$3.99
25
BOLT(10)
7515428
$4.79
26
SHAFT,DRIVE(HI.STRENGTH)
6230083
Unavailable
27
SPROCKET, 9T
5430571
Unavailable
28
BUSHING METAL SPEEDO
3280019
$11.99
29
DRIVESHAFT ASM,HD,2DR Substituted by 1590250 (Incl. 26-28)
1590249
Unavailable
30
BOLT(10)
7512331
$3.99
31
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
32
BEARING,DRIVESHAFT
3514518
$64.99
33
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
34
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
