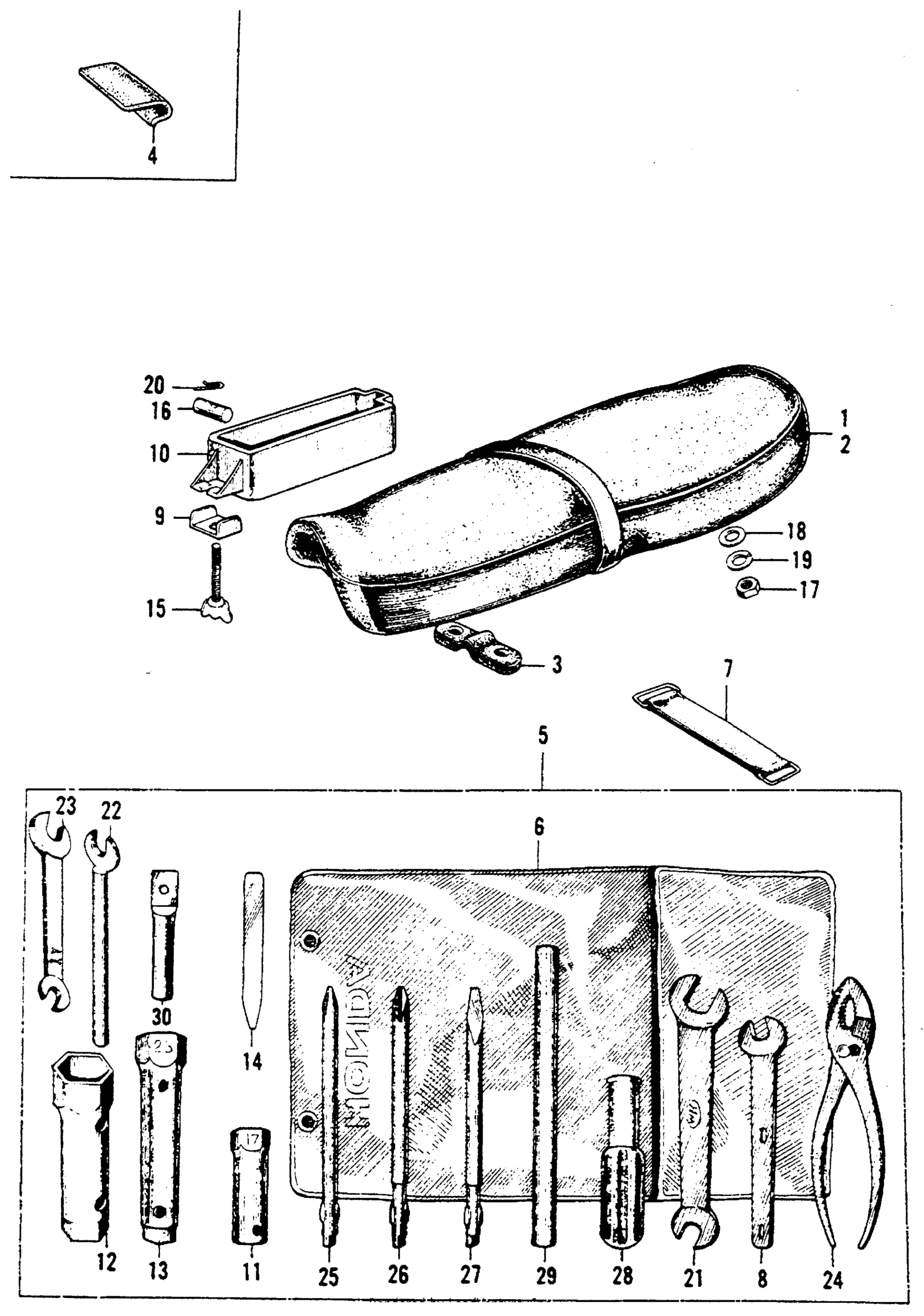

Honda CL90A MOTORCYCLE, JPN, VIN# CL90-106956 SEAT + TOOL SET Diagram

#

Description
Price

2

SEAT (NOT AVAILABLE) | Use from Frame SN 106956

77200-056-000

Unavailable

3

RUBBER, SEAT MOUNT (NOT AVAILABLE) | Use from Frame SN 108299

77201-051-000

Unavailable

5

TOOL SET (NOT AVAILABLE) | Use from Frame SN 106956 to 330067

89010-028-000

Unavailable

8

SPANNER (9MM) (N/A: SEE ASSEMBLY) | Use from Frame SN 106956 to 330367

89203-200-000

Unavailable

9

PLATE, TOOL BOX SETTING (NOT AVAILABLE) | Use from Frame SN 106956 to 105116

89204-028-000

Unavailable

10

BOX, TOOL | Use from Frame SN 106956

89211-028-000

Unavailable

11

WRENCH, BOX (17MM) | Use from Frame SN 106956 to 330367

89212-028-000

Unavailable

12

WRENCH (14X17) (N/A: SEE ASSEMBLY) | Use from Frame SN 275568 to 330367

89213-028-000

Unavailable

12

WRENCH, BOX (14X17) | Use from Frame SN 330068 to 330367

99004-14170

Unavailable

13

WRENCH, SPARK PLUG (NOT AVAILABLE) | Use from Frame SN 106956 to 275567

89216-028-000

Unavailable

13

WRENCH, SPARK PLUG (NOT AVAILABLE) | Use from Frame SN 330368

99004-18230

Unavailable

14

GAUGE, TAPPET CLEARANCE | Use from Frame SN 106956 to 330367

89231-001-000

Unavailable

15

BOLT, TOOL BOX FIXING (NOT AVAILABLE) | Use from Frame SN 106956 to 105116

90161-028-000

Unavailable

16

NUT, TOOL BOX SETTING (NOT AVAILABLE) | Use from Frame SN 106956 to 105116

90301-028-000

Unavailable

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, SPRING (6MM)

94111-06000

$1.49

20

PIN, COTTER (2.0X12)

94201-20120

$1.49

21

WRENCH (8X12) (OPEN END) | Use from Frame SN 275568 to 330367

99001-08120

$2.75

22

WRENCH (9MM) (OPEN END) (NOT AVAILABLE) | Use from Frame SN 275568 to 330367

99001-09000

Unavailable

23

WRENCH (10X12) (OPEN END) | Use from Frame SN 330368

99001-10120

$4.69

23

WRENCH (10X14) (OPEN END) | Use from Frame SN 275568 to 330367

99001-10140

$2.92

24

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

25

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

27

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

28

GRIP

99003-50000

$3.27

29

BAR A, HANDLE | Use from Frame SN 275568 to 330367

99005-01000

$1.49

29

BAR B, HANDLE | Use from Frame SN 330368

99005-02000

$2.52

30

WRENCH, SOCKET (3MM) (NOT AVAILABLE)

89215-107-000

Unavailable
