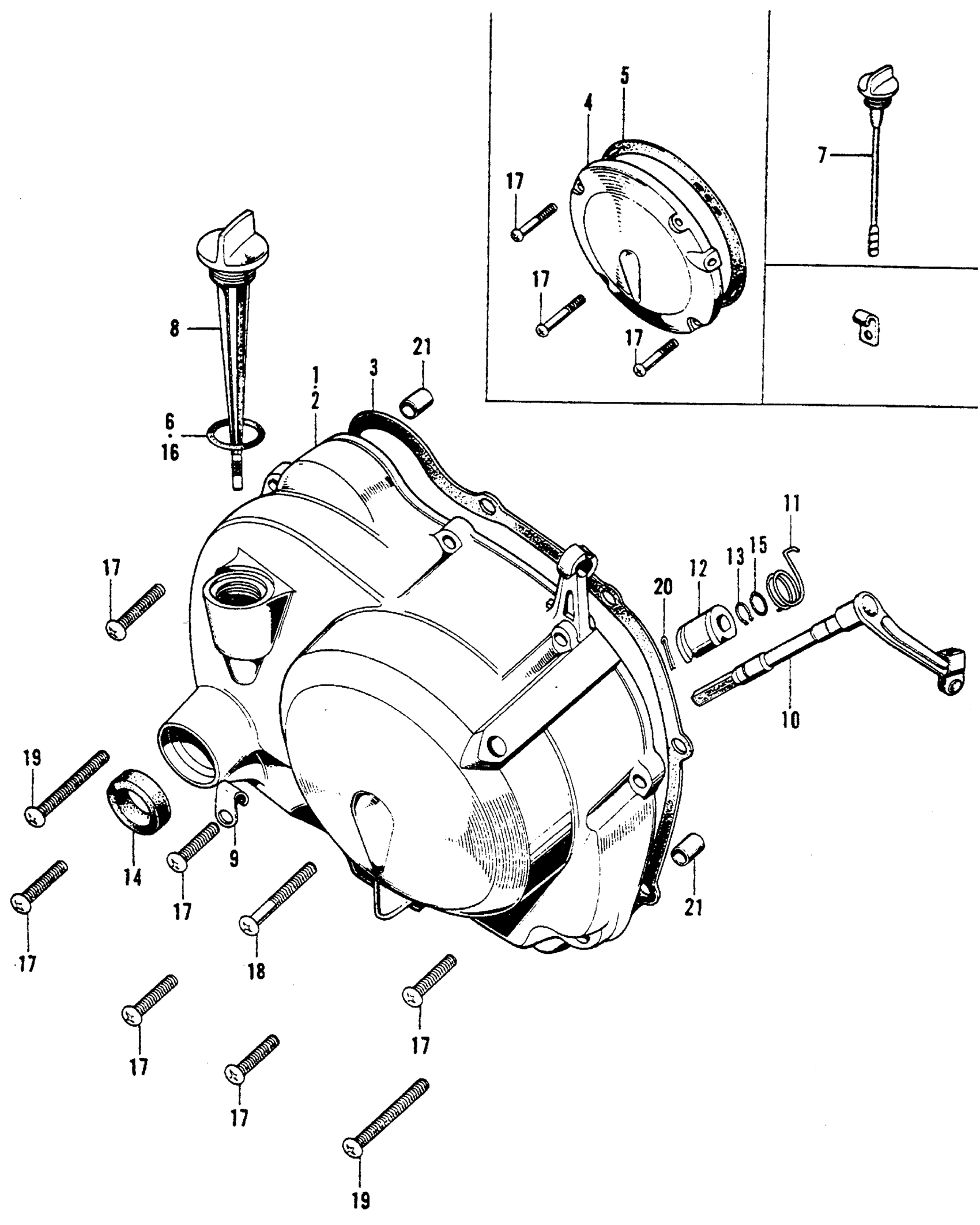

Honda CL90A MOTORCYCLE, JPN, VIN# CL90-106956 RIGHT CRANKCASE COVER Diagram

#

Description
Price

2

COVER, R. CRANKCASE | Use from Engine SN 106956 to 120014 This part replaces 11330-056-000.

11330-056-020

Unavailable

2

COVER, R. CRANKCASE | Use from Engine SN 106956

11330-056-020

Unavailable

3

GASKET, R. CRANKCASE COVER | Use from Engine SN 106956 This part replaces 11393-028-020.

11393-028-306

$12.58

3

GASKET, R. CRANKCASE COVER | Use from Engine SN 106956

11393-028-306

$12.58

4

COVER, CLUTCH (NOT AVAILABLE) | Use from Engine SN 106956 to 120014

11650-028-010

Unavailable

5

GASKET, CLUTCH COVER | Use from Engine SN 106956 to 120014 This part replaces 11692-028-000.

11692-028-306

Unavailable

6

GASKET, OIL CAP (NOT AVAILABLE) | Use from Engine SN 106956 to 120014

15619-001-000

Unavailable

8

DIPSTICK, OIL (NOT AVAILABLE) | Use from Engine SN 106956 to 120014 This part replaces 15650-056-000.

15650-056-010

Unavailable

8

DIPSTICK, OIL (NOT AVAILABLE) | Use from Engine SN 106956

15650-056-010

Unavailable

9

CLAMP, OVERFLOW TUBE | Use from Engine SN 106956

16236-045-000

Unavailable

10

LEVER, CLUTCH (NOT AVAILABLE) | Use from Engine SN 106956

22810-028-000

Unavailable

11

SPRING, CLUTCH LEVER (NOT AVAILABLE) | Use from Engine SN 106956

22815-030-010

Unavailable

12

ARM, CLUTCH LIFTER (NOT AVAILABLE) | Use from Engine SN 120015

22834-028-000

Unavailable

12

ARM, CLUTCH LIFTER (NOT AVAILABLE) | Use from Engine SN 106956 to 120014

22834-030-000

Unavailable

13

SNAP-RING (10MM) (NOT AVAILABLE) | Use from Engine SN 106956

22875-030-000

Unavailable

14

OIL SEAL (14X26X6) | Use from Engine SN 106956 This part replaces 91203-023-020.

91251-ZW5-003

$3.81

14

OIL SEAL (14X26X6) | Use from Engine SN 106956

91251-ZW5-003

$3.81

15

O-RING (6.8X1.9) | Use from Engine SN 106956 This part replaces 91301-027-000.

91306-PJ4-000

$3.01

15

O-RING (6.8X1.9) | Use from Engine SN 106956

91306-PJ4-000

$3.01

15

O-RING (6.8X1.9) | Use from Engine SN 106956 This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

16

O-RING (18X3) (ARAI) | Use from Engine SN 120015

91307-KF0-003

$2.92

16

O-RING (18X3) | Use from Engine SN 120015

91307-035-000

$2.92

17

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

17

SCREW, PAN (6X20)

93500-06020-0A

$1.49

18

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

18

SCREW, PAN (6X32)

93500-06032-0A

$1.49

19

PIN, COTTER (2.0X15)

94201-20150

$1.49

20

PIN, COTTER (2.0X15)

94201-20150

$1.49

21

PIN A, DOWEL (10X14)

94301-10140

$2.28
