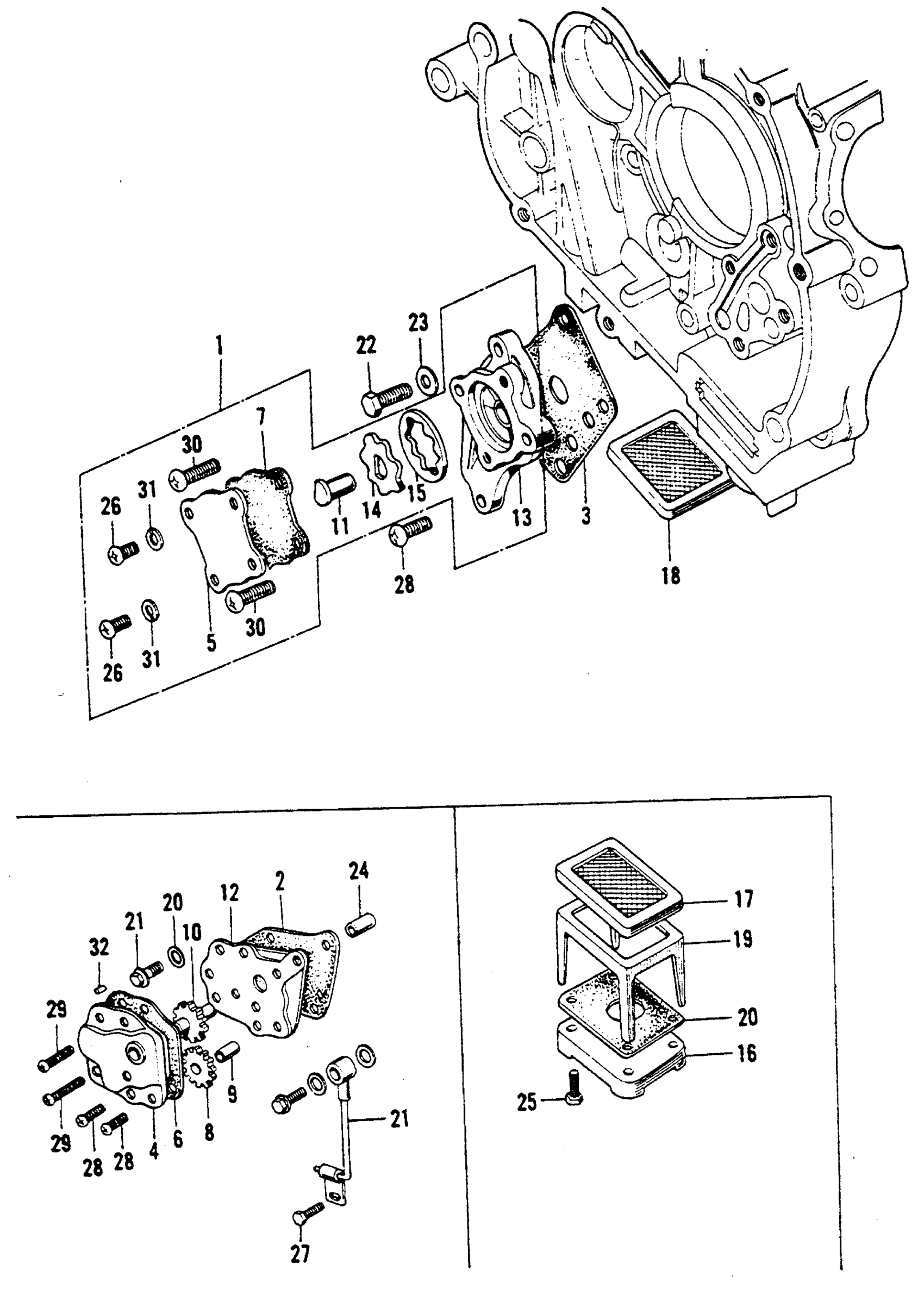

Honda CL90A MOTORCYCLE, JPN, VIN# CL90-106956 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL (NOT AVAILABLE) | Use from Engine SN 127467

15100-028-020

Unavailable

2

GASKET, OIL PUMP BODY (NOT AVAILABLE) | Use from Engine SN 106956 to 127466

15119-028-010

Unavailable

3

GASKET, OIL PUMP BODY | Use from Engine SN 330257 This part replaces 15119-028-030.

15119-028-306

Unavailable

3

GASKET, OIL PUMP BODY | Use from Engine SN 330257

15119-028-306

Unavailable

4

COVER, OIL PUMP | Use from Engine SN 106956 to 127466

15121-028-040

Unavailable

5

COVER, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 127467

15121-028-060

Unavailable

6

GASKET, OIL PUMP COVER (NOT AVAILABLE) | Use from Engine SN 106956 to 127466

15128-028-010

Unavailable

7

GASKET, OIL PUMP COVER | Use from Engine SN 127467

15128-028-030

Unavailable

8

GEAR B, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 106356 to 127466

15141-028-030

Unavailable

9

SHAFT, OIL PUMP DRIVEN GEAR (NOT AVAILABLE) | Use from Engine SN 106956 to 127466

15161-028-030

Unavailable

10

GEAR, OIL PUMP DRIVE (NOT AVAILABLE) | Use from Engine SN 106956 to 127466

15180-028-040

Unavailable

11

DRIVESHAFT, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 127467

15181-028-050

Unavailable

12

BODY, OIL PUMP | Use from Engine SN 106956 to 127466

15210-028-030

Unavailable

13

BODY, OIL PUMP (NOT AVAILABLE) | Use from Engine SN 275567

15210-028-060

Unavailable

14

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE) | Use from Engine SN 127467 This part replaces 15331-035-000.

15331-035-004

Unavailable

14

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE) | Use from Engine SN 127467

15331-035-004

Unavailable

15

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) | Use from Engine SN 127467 This part replaces 15332-035-000.

15332-035-004

Unavailable

15

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) | Use from Engine SN 127467

15332-035-004

Unavailable

18

SCREEN, OIL FILTER | Use from Engine SN 106956

15421-035-010

$3.80

22

BOLT, OIL JOINT (NOT AVAILABLE) | Use from Engine SN 106956

90015-028-000

Unavailable

23

GASKET, OIL PIPE JOINT | Use from Engine SN 106956

90405-001-000

$1.89

24

PIN, KNOCK (13X11) (NOT AVAILABLE) | Use from Engine SN 106956 to 127466

90701-028-000

Unavailable

26

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

26

SCREW, PAN (5X12)

93500-05012-0A

$1.49

27

SCREW, PAN (5X14) This part replaces 93500-05014.

93500-05014-0A

$1.49

27

SCREW, PAN (5X14)

93500-05014-0A

$1.49

28

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

28

SCREW, PAN (6X16)

93500-06016-0A

$1.49

29

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

29

SCREW, PAN (6X20)

93500-06020-0A

$1.49

30

SCREW, PAN (6X25) This part replaces 93500-06025.

93500-06025-0A

$1.49

31

WASHER, SPRING (5MM)

94111-05000

$1.49

32

PIN, DOWEL (4X65) (NOT AVAILABLE)

94302-04065

$2.14
