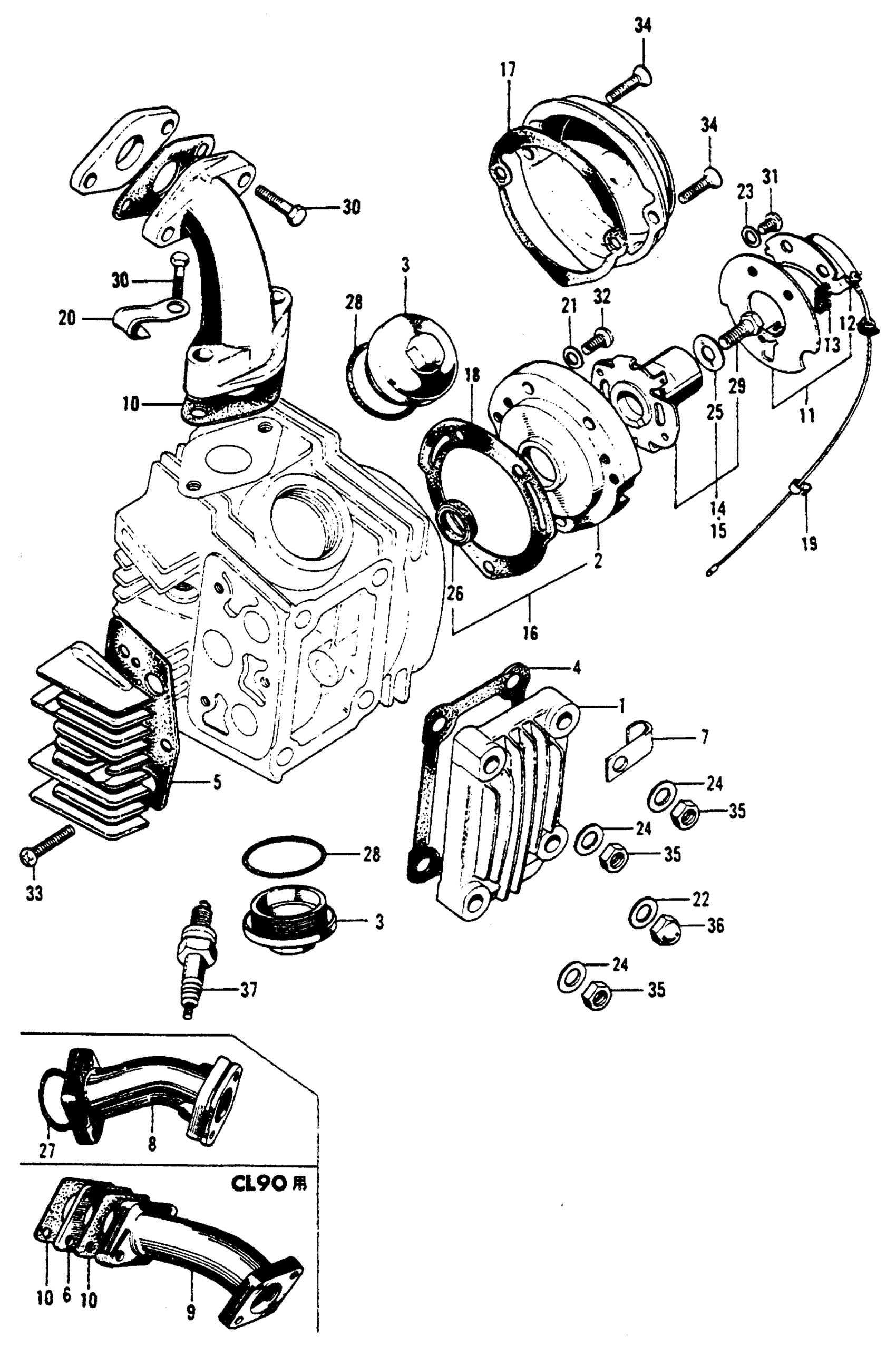

Honda CL90A MOTORCYCLE, JPN, VIN# CL90-106956 CYLINDER HEAD COVER + POINTS BASE Diagram

#

Description
Price

1

COVER, CYLINDER HEAD (NOT AVAILABLE) | Use from Engine SN 106956

12301-028-010

Unavailable

2

BASE, POINTS (NOT AVAILABLE) This part replaces 12332-028-030.

12332-028-040

Unavailable

3

CAP, VALVE ADJ.

12361-028-000

$7.89

4

GASKET, CYLINDER HEAD COVER | Use from Engine SN 106956 This part replaces 12391-028-000.

12391-121-630

Unavailable

4

GASKET, CYLINDER HEAD COVER | Use from Engine SN 106956 This part replaces 12391-028-306.

12391-121-630

Unavailable

4

GASKET, CYLINDER HEAD COVER | Use from Engine SN 106956

12391-121-630

Unavailable

5

GASKET, R. CYLINDER HEAD SIDE COVER | Use from Engine SN 106956 This part replaces 12394-028-010.

12394-121-630

Unavailable

5

GASKET, R. CYLINDER HEAD SIDE COVER | Use from Engine SN 106956 This part replaces 12394-028-020.

12394-121-630

Unavailable

5

GASKET, R. CYLINDER HEAD SIDE COVER | Use from Engine SN 106956

12394-121-630

Unavailable

6

INSULATOR, IN. PIPE | Use from Engine SN 106956 This part replaces 16212-046-000.

16212-046-306

Unavailable

9

PIPE, INLET | Use from Engine SN 106596

17111-056-000

Unavailable

10

GASKET, IN. PIPE | Use from Engine SN 106596 This part replaces 17119-046-000.

17119-046-306

$4.69

10

GASKET, IN. PIPE | Use from Engine SN 106596

17119-046-306

$4.69

11

POINTS ASSY. (DENSO) | Use from Engine SN 106956 This part replaces 30200-028-003.

30200-107-014

$52.64

11

POINTS ASSY. (DENSO) | Use from Engine SN 106956 This part replaces 30200-028-004.

30200-107-014

$52.64

11

POINTS ASSY. (DENSO) | Use from Engine SN 106956 This part replaces 30200-028-005.

30200-107-014

$52.64

11

POINTS ASSY. (DENSO) | Use from Engine SN 106956 This part replaces 30200-028-013.

30200-107-014

$52.64

11

POINTS ASSY. (DENSO) | Use from Engine SN 106956

30200-107-014

$52.64

12

POINTS (KOKUSAN) | Use from Engine SN 106956

30202-028-003

Unavailable

12

POINTS (DENSO) | Use from Engine SN 106956

30202-107-004

$38.65

12

POINTS (TOYO) | Use from Engine SN 106956

30202-107-154

$24.86

13

FELT, OIL (KOKUSAN) (NOT AVAILABLE) | Use up to Engine SN 106956

30205-028-003

Unavailable

13

FELT, OIL (KOKUSAN) (NOT AVAILABLE) | Use from Engine SN 106956 This part replaces 30205-028-004.

30205-028-003

Unavailable

14

POINTS | Use from Engine SN 106956 to 210105

30220-028-004

Unavailable

15

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE) | Use from Engine SN 210106 This part replaces 30220-053-003.

30220-053-154

Unavailable

15

ADVANCER ASSY., SPARK (DENSO) | Use from Engine SN 210106

30220-053-004

Unavailable

15

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE) | Use from Engine SN 210106

30220-053-154

Unavailable

16

BASE ASSY., POINTS | Use from Engine SN 275568 This part replaces 30360-028-020.

30360-028-030

Unavailable

16

BASE ASSY., POINTS | Use from Engine SN 275568

30360-028-030

Unavailable

17

GASKET, POINT COVER | Use from Engine SN 106956 This part replaces 30391-028-000.

30391-459-952

$3.90

17

GASKET, POINT COVER | Use from Engine SN 106956 This part replaces 30391-459-950.

30391-459-952

$3.90

18

GASKET, POINTS BASE | Use from Engine SN 106956 This part replaces 30392-028-020.

30392-028-306

Unavailable

18

GASKET, POINTS BASE | Use from Engine SN 106956

30392-028-306

Unavailable

19

CLIP, POINT LEAD WIRE (NOT AVAILABLE) | Use from Engine SN 106956

32901-028-000

Unavailable

20

CLIP, COIL CABLE | Use from Engine SN 106956

32906-028-000

Unavailable

21

WASHER, SEALING (6MM) | Use from Engine SN 106956

90441-028-010

$2.80

22

WASHER, SEALING (8MM) | Use from Engine SN 106956

90442-028-000

$1.61

23

WASHER (5MM) | Use from Engine SN 106956

90482-028-000

$2.00

24

WASHER (8MM) | Use from Engine SN 106956

90483-028-000

$1.38

25

WASHER, SPARK ADVANCER SETTING | Use from Engine SN 106956

90486-028-000

$2.03

26

OIL SEAL (13X22X5) | Use from Engine SN 106956 This part replaces 91201-028-000.

91201-028-005

$7.54

26

OIL SEAL (13X22X5) | Use from Engine SN 106956

91201-028-005

$7.54

28

O-RING (33.5X3.0) | Use from Engine SN 106956 This part replaces 91302-200-000.

91304-HB3-003

$7.18

28

O-RING (33.5X3.0) | Use from Engine SN 106956 This part replaces 91302-943-003.

91304-HB3-003

$7.18

28

O-RING (33.5X3.0) | Use from Engine SN 106956

91304-HB3-003

$7.18

29

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.32

29

BOLT, HEX. (6X14)

92101-06014-0A

$1.32

30

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.48

30

BOLT, HEX. (6X25)

92101-06025-0A

$1.48

31

SCREW, PAN (5X10) This part replaces 93500-05010.

93500-05010-0A

Unavailable

31

SCREW, PAN (5X10)

93500-05010-0A

Unavailable

31

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

Unavailable

31

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

Unavailable

32

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$0.83

32

SCREW, PAN (5X12)

93500-05012-0A

$0.83

32

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$0.90

32

SCREW, PAN (6X12)

93500-06012-0A

$0.90

32

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$0.90

33

SCREW, PAN (5X20) This part replaces 93500-05020.

93500-05020-0A

$0.75

33

SCREW, PAN (5X20)

93500-05020-0A

$0.75

33

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$0.93

33

SCREW, PAN (6X20)

93500-06020-0A

$0.93

33

SCREW, PAN (5X20) This part replaces 93520-05020.

93500-05020-0A

$0.75

33

SCREW, PAN (5X20) This part replaces 93520-05020-0A.

93500-05020-0A

$0.75

34

SCREW, OVAL (5X25) (NOT AVAILABLE) This part replaces 93700-05025.

93700-05025-02

Unavailable

34

SCREW, OVAL (5X25)

93700-05025-0A

$0.48

34

SCREW, OVAL (5X25) (NOT AVAILABLE)

93700-05025-02

Unavailable

35

NUT, HEX. (8MM)

94001-08000-0S

$1.19

35

NUT, HEX. (8MM)

94030-08000

$0.97

36

NUT, CAP (8MM) This part replaces 90012-286-000.

94021-08000-0S

$1.48

36

NUT, CAP (8MM) This part replaces 94021-08000.

94021-08000-0S

$1.48

36

NUT, CAP (8MM)

94021-08000-0S

$1.48

36

NUT, CAP (8MM) This part replaces 94022-08000-0S.

94021-08000-0S

$1.48

37

SPARK PLUG (D8HA) (NGK) This part replaces 98066-58714.

98066-58717

$2.16

37

SPARK PLUG (D8HA) (NGK)

98066-58717

$2.16
