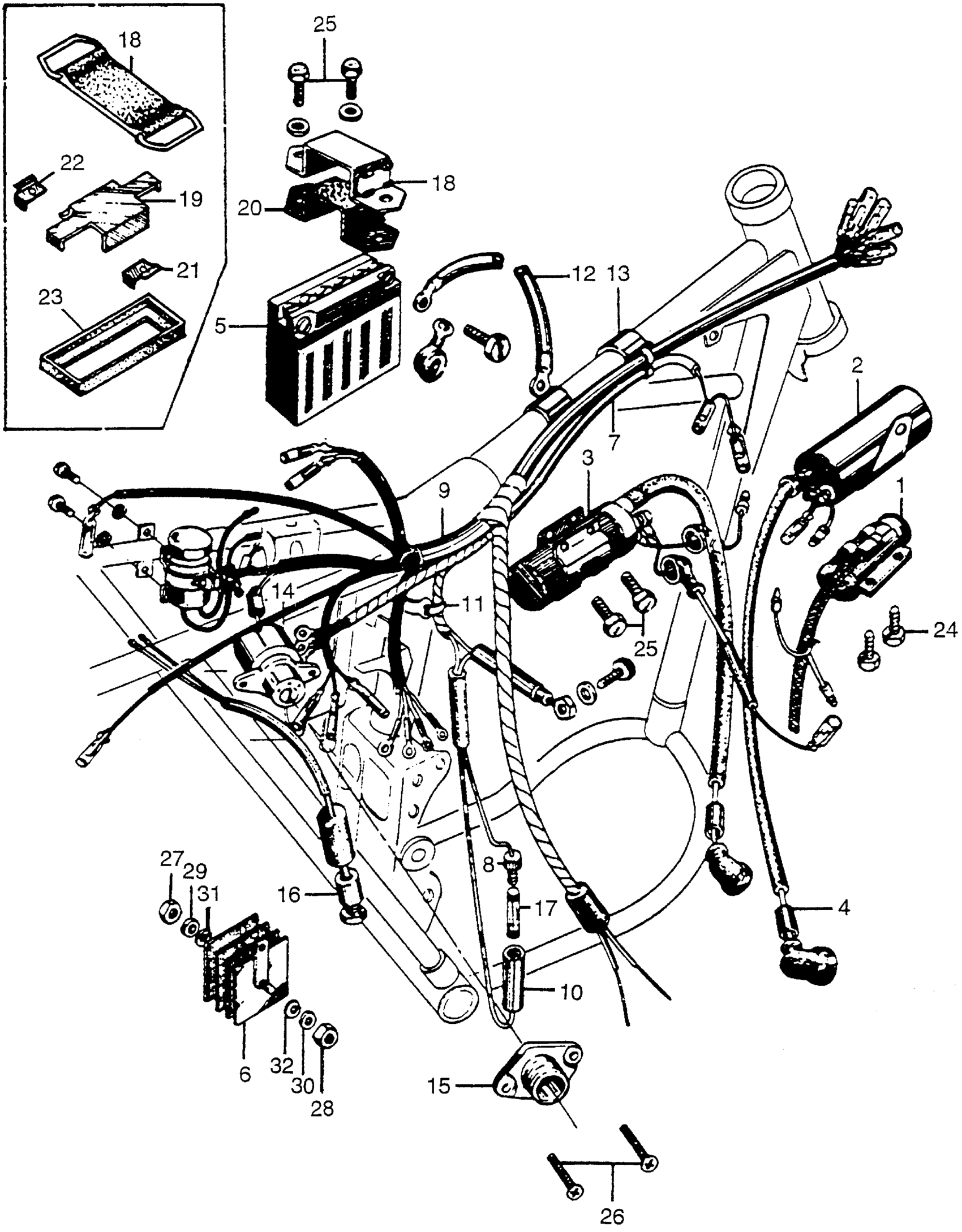

Honda CL72A MOTORCYCLE, JPN, VIN# CL72-100001 WIRE HARNESS + BATTERY Diagram

CONDENSER (NOT AVAILABLE)

30250-273-000

Unavailable

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-273-305.

30500-273-405

Unavailable

COIL ASSY., IGNITION (NOT AVAILABLE)

30500-273-405

Unavailable

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30510-273-000.

30500-273-405

Unavailable

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30520-273-000.

30500-273-405

Unavailable

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30500-273-305.

30500-273-405

Unavailable

COIL ASSY., IGNITION (NOT AVAILABLE)

30500-273-405

Unavailable

COIL ASSY., IGNITION (NOT AVAILABLE) This part replaces 30520-273-000.

30500-273-405

Unavailable

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

CAP ASSY. This part replaces 30700-243-610.

30700-MG7-003

$14.30

CAP ASSY. This part replaces 30700-259-600.

30700-MG7-003

$14.30

BATTERY ASSY. (12N5-4B) This part replaces 31500-273-000.

31500-313-677

Unavailable

BATTERY ASSY. (12N5-4B)

31500-313-677

Unavailable

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE) | Use from Frame SN 0311270 to 0317995 This part replaces 31700-273-000.

31700-273-305

Unavailable

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE) | Use from Frame SN 1000001 This part replaces 31700-273-000.

31700-273-305

Unavailable

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459 This part replaces 31700-273-000.

31700-273-305

Unavailable

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196 This part replaces 31700-273-000.

31700-273-305

Unavailable

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

31700-273-305

Unavailable

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

31700-273-305

Unavailable

RECTIFIER ASSY., SELENIUM (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

31700-273-305

Unavailable

WIRE HARNESS A (NOT AVAILABLE)

32100-273-000

Unavailable

CONNECTOR B, FUSE (NOT AVAILABLE)

32106-253-010

Unavailable

WIRE HARNESS B (NOT AVAILABLE) This part replaces 32110-273-000.

32110-273-010

Unavailable

WIRE HARNESS B (NOT AVAILABLE)

32110-273-010

Unavailable

CONNECTOR A, FUSE (NOT AVAILABLE)

32112-253-010

Unavailable

BAND B3, WIRE This part replaces 32163-268-000.

95014-62300

$2.25

BAND B3, CABLE HARNESS

95014-62300

$2.25

CABLE, BATTERY GROUND (NOT AVAILABLE)

32601-273-000

Unavailable

BAND B1, CABLE This part replaces 32161-268-000.

32161-404-000

$2.23

BAND B1, CABLE

32161-404-000

$2.23

BAND B1, CABLE This part replaces 32983-268-000.

32161-404-000

$2.23

BAND B1, CABLE This part replaces 95014-61100.

32161-404-000

$2.23

SWITCH ASSY., COMBINATION (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

35010-273-000

Unavailable

SWITCH ASSY., COMBINATION (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

35010-273-000

Unavailable

SWITCH ASSY., COMBINATION (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

35010-273-000

Unavailable

SWITCH ASSY., COMBINATION (NOT AVAILABLE) | Use from Frame SN 1001045

35010-273-010

Unavailable

RETAINER, MAIN SWITCH (NOT AVAILABLE) | Use from Frame SN 1001045

35141-273-000

Unavailable

SWITCH ASSY., STOP LIGHT (NOT AVAILABLE)

35350-273-000

Unavailable

FUSE A (15A) This part replaces 38201-250-000.

98200-11500

$1.49

FUSE A (15A)

98200-11500

$1.49

BAND, BATTERY | Use from Frame SN 0020002 to 0317995

83631-273-000

Unavailable

BAND, BATTERY | Use from Frame SN 1000001 to 1008850

83631-273-000

Unavailable

BAND, BATTERY | Use from Frame SN 1100001 to 1109459

83631-273-000

Unavailable

BAND, BATTERY | Use from Frame SN 4000001 to 4003196

83631-273-000

Unavailable

BAND, BATTERY (NOT AVAILABLE)

83631-273-010

Unavailable

BAND E, BATTERY | Use from Frame SN 1008851 This part replaces 95012-16000.

95012-16001

$7.19

BAND E, BATTERY | Use from Frame SN 1008851

95012-16001

$7.19

COVER, BATTERY (NOT AVAILABLE)

83632-273-000

Unavailable

COVER, BATTERY (NOT AVAILABLE) This part replaces 83636-273-000.

83632-273-000

Unavailable

RUBBER, BATTERY BAND (NOT AVAILABLE)

83634-273-000

Unavailable

HOOK, R. BATTERY BAND (NOT AVAILABLE) | Use from Frame SN 1008851

83638-273-303

Unavailable

HOOK, L. BATTERY BAND (NOT AVAILABLE) | Use from Frame SN 1008851

83639-273-303

Unavailable

MAT, BATTERY RUBBER (NOT AVAILABLE) | Use from Frame SN 1008851

83640-273-000

Unavailable

BOLT, HEX. (5X12) This part replaces 92000-05012.

92101-05012-0G

$1.49

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

BOLT, HEX. (5X12) This part replaces 93300-05012-1H.

92101-05012-0G

$1.49

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

NUT, HEX. (8MM)

94030-08000

$1.49

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
