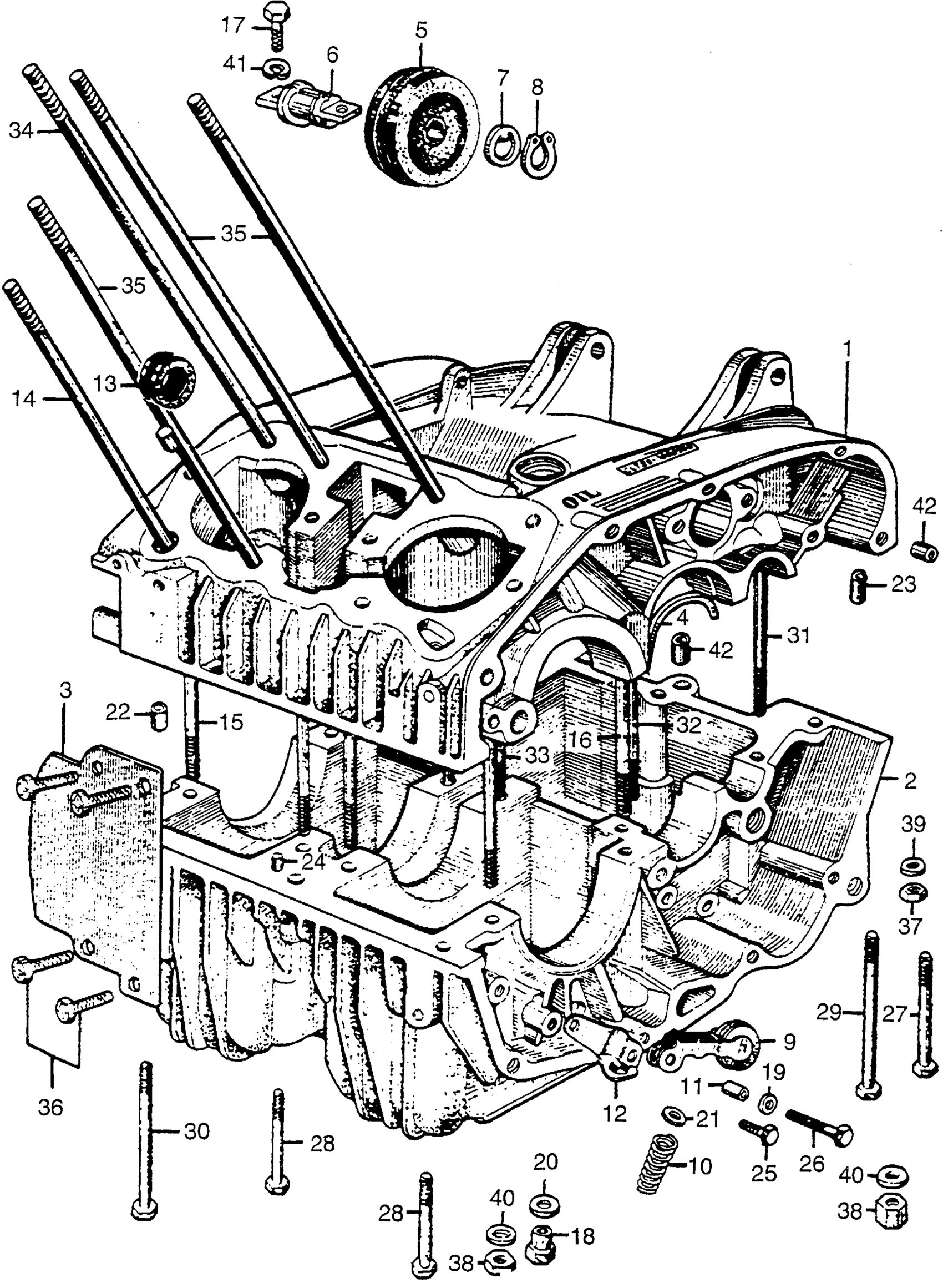

Honda CL72A MOTORCYCLE, JPN, VIN# CL72-100001 UPPER & LOWER CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (UPPER) | Use from Engine SN 0210002 to 0317995

11100-273-010

Unavailable

1

CRANKCASE (UPPER) | Use from Engine SN 1000001

11100-273-010

Unavailable

1

CRANKCASE (UPPER) | Use from Engine SN 1100001 to 1109459

11100-273-010

Unavailable

1

CRANKCASE (UPPER) | Use from Engine SN 4000001 to 4003196

11100-273-010

Unavailable

2

CRANKCASE (LOWER) | Use from Engine SN 0210002 to 0317995

11200-259-060

Unavailable

2

CRANKCASE (LOWER) | Use from Engine SN 1000001

11200-259-060

Unavailable

2

CRANKCASE (LOWER) | Use from Engine SN 1100001 to 1109459

11200-259-060

Unavailable

2

CRANKCASE (LOWER) | Use from Engine SN 4000001 to 4003196

11200-259-060

Unavailable

3

SUB-COVER, CRANKCASE (NOT AVAILABLE)

11381-273-000

Unavailable

4

RING, BEARING SET (62MM) (NOT AVAILABLE)

13491-259-000

Unavailable

5

ROLLER, CAM CHAIN GUIDE (NOT AVAILABLE)

14611-250-310

Unavailable

6

PIN, CAM CHAIN GUIDE ROLLER (NOT AVAILABLE)

14612-250-300

$21.23

6

PIN, CAM CHAIN GUIDE ROLLER (NOT AVAILABLE) This part replaces 14612-258-000.

14612-250-300

$21.23

7

WASHER (14MM) (NOT AVAILABLE)

14615-250-300

Unavailable

8

CIRCLIP (OUTER) (14MM) This part replaces 14616-250-300.

94510-14000

$1.49

8

CIRCLIP (OUTER) (14MM) This part replaces 90605-001-000.

94510-14000

$1.49

8

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

9

TENSIONER, PRIMARY CHAIN

23170-259-000

Unavailable

10

SPRING, PRIMARY CHAIN TENSIONER (NOT AVAILABLE)

23181-259-000

Unavailable

11

PIECE, DISTANCE (NOT AVAILABLE)

23912-259-000

Unavailable

12

SEAT, SPRING (NOT AVAILABLE)

23942-259-000

Unavailable

13

GROMMET, LOW TENSION WIRE (NOT AVAILABLE)

32951-250-000

Unavailable

14

STUD A, CYLINDER (NOT AVAILABLE) | Use from Engine SN 0210002 to 0316974

90031-259-010

Unavailable

14

STUD A, CYLINDER (NOT AVAILABLE) | Use from Engine SN 0316975 to 0317955

90031-259-020

Unavailable

14

STUD A, CYLINDER (NOT AVAILABLE) | Use from Engine SN 1100001 to 1109459

90031-259-020

Unavailable

14

STUD A, CYLINDER (NOT AVAILABLE) | Use from Engine SN 4000001 to 4003437

90031-259-020

Unavailable

15

BOLT, STUD (8X116) (NOT AVAILABLE)

90062-259-000

Unavailable

16

BOLT, STUD (8X128) (NOT AVAILABLE)

90063-259-000

Unavailable

17

BOLT, KNOCK (6MM) (NOT AVAILABLE)

90081-253-000

Unavailable

18

NUT, SEALING (6MM) (NOT AVAILABLE)

90241-259-000

Unavailable

19

WASHER, LOCKING

90432-259-000

Unavailable

20

WASHER A (6.5MM)

90481-250-000

$1.93

21

WASHER (14MM) (NOT AVAILABLE)

90483-259-000

Unavailable

22

PIN, KNOCK (7X5X12) (NOT AVAILABLE)

90701-259-010

Unavailable

23

PIN A, DOWEL (10X14) This part replaces 90703-200-000.

94301-10140

$2.28

23

PIN A, DOWEL (10X14)

94301-10140

$2.28

24

PIN, KNOCK (7X12) (NOT AVAILABLE)

90705-259-020

Unavailable

25

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

25

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

26

BOLT, HEX. (6X30) This part replaces 92000-06030.

92101-06030-0A

$1.79

26

BOLT, HEX. (6X30)

92101-06030-0A

$1.79

27

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

27

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

27

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

28

BOLT, HEX. (6X55) This part replaces 92000-06050.

92101-06055-0A

$1.98

28

BOLT, HEX. (6X55) This part replaces 92000-06050-0A.

92101-06055-0A

$1.98

28

BOLT, HEX. (6X55) This part replaces 92000-06055.

92101-06055-0A

$1.98

28

BOLT, HEX. (6X55) This part replaces 92000-06055-0A.

92101-06055-0A

$1.98

28

BOLT, HEX. (6X55)

92101-06055-0A

$1.98

29

BOLT, HEX. (6X70) This part replaces 92000-06070.

92101-06070-0A

$2.34

29

BOLT, HEX. (6X70) This part replaces 92000-06070-0A.

92101-06070-0A

$2.34

29

BOLT, HEX. (6X70)

92101-06070-0A

$2.34

30

BOLT, HEX. (6X75) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-06075.

92101-06075-0A

Unavailable

30

BOLT, HEX. (6X75) (SOURCE: VINTAGE PARTS INC.)

92101-06075-0A

Unavailable

31

BOLT, STUD (6X100) This part replaces 92700-06103.

92700-06100

Unavailable

32

BOLT, STUD (6X120) (SOURCE: VINTAGE PARTS INC.)

92700-06120

Unavailable

33

BOLT, STUD (8X95) (NOT AVAILABLE)

92700-08095-30

Unavailable

33

BOLT, STUD (8X95) (NOT AVAILABLE) This part replaces 92700-08096-30.

92700-08095-30

Unavailable

34

BOLT, STUD (8X262) (NOT AVAILABLE)

92700-08262-35

Unavailable

35

BOLT, STUD (8X267) (NOT AVAILABLE)

92700-08267-35

Unavailable

36

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

36

SCREW, PAN (6X12)

93500-06012-0A

$1.49

36

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

37

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

37

NUT, HEX. (6MM)

94001-06200-0S

$1.49

37

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

38

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

38

NUT, HEX. (8MM)

94030-08000

$1.49

38

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

39

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

39

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

39

WASHER, PLAIN (6MM)

94101-06800

$1.49

40

WASHER, PLAIN (8MM)

94101-08000

$1.49

41

WASHER, SPRING (6MM)

94111-06000

$1.49

42

PIN A, DOWEL (10X20)

94301-10200

$2.35
