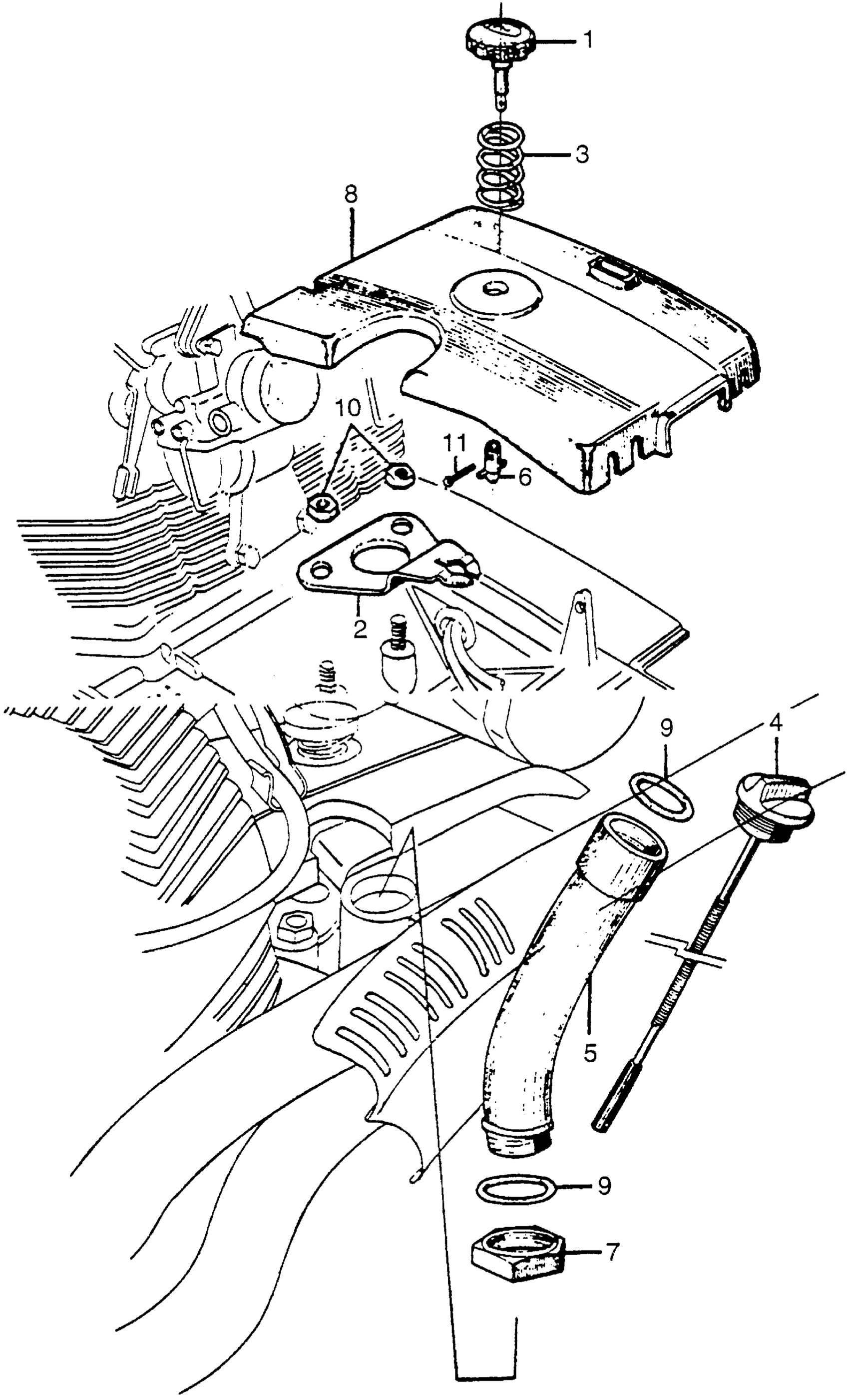

Honda CL72A MOTORCYCLE, JPN, VIN# CL72-100001 UPPER CRANKCASE COVER Diagram

#

Description
Price

1

LATCH, CASE COVER (NOT AVAILABLE)

11941-268-000

Unavailable

2

PLATE, STOPPER (NOT AVAILABLE)

11942-268-000

Unavailable

3

SPRING, STOPPER (NOT AVAILABLE)

11943-268-000

Unavailable

4

DIPSTICK, OIL (NOT AVAILABLE)

15620-273-000

Unavailable

5

JOINT, OIL FILLER (NOT AVAILABLE)

15631-273-000

Unavailable

6

CONNECTOR, DUST SEAL (NOT AVAILABLE)

17494-259-000

Unavailable

7

NUT, SPECIAL (24MM) (NOT AVAILABLE)

90281-273-000

Unavailable

8

COVER, CRANKCASE (UPPER) (NOT AVAILABLE)

90706-268-010

Unavailable

9

O-RING (21.5X3.2) This part replaces 91301-250-000.

91307-425-003

$2.59

9

O-RING (22X3.0)

91307-425-003

$2.59

10

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

10

NUT, HEX. (8MM)

94030-08000

$1.49

10

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

11

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

11

PIN, COTTER (2.0X22)

94201-20220

$1.49

11

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

11

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

11

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

11

PIN, COTTER (2.0X35)

94201-20350

$1.49

11

PIN, COTTER (2.0X22)

94201-29220

$1.49
