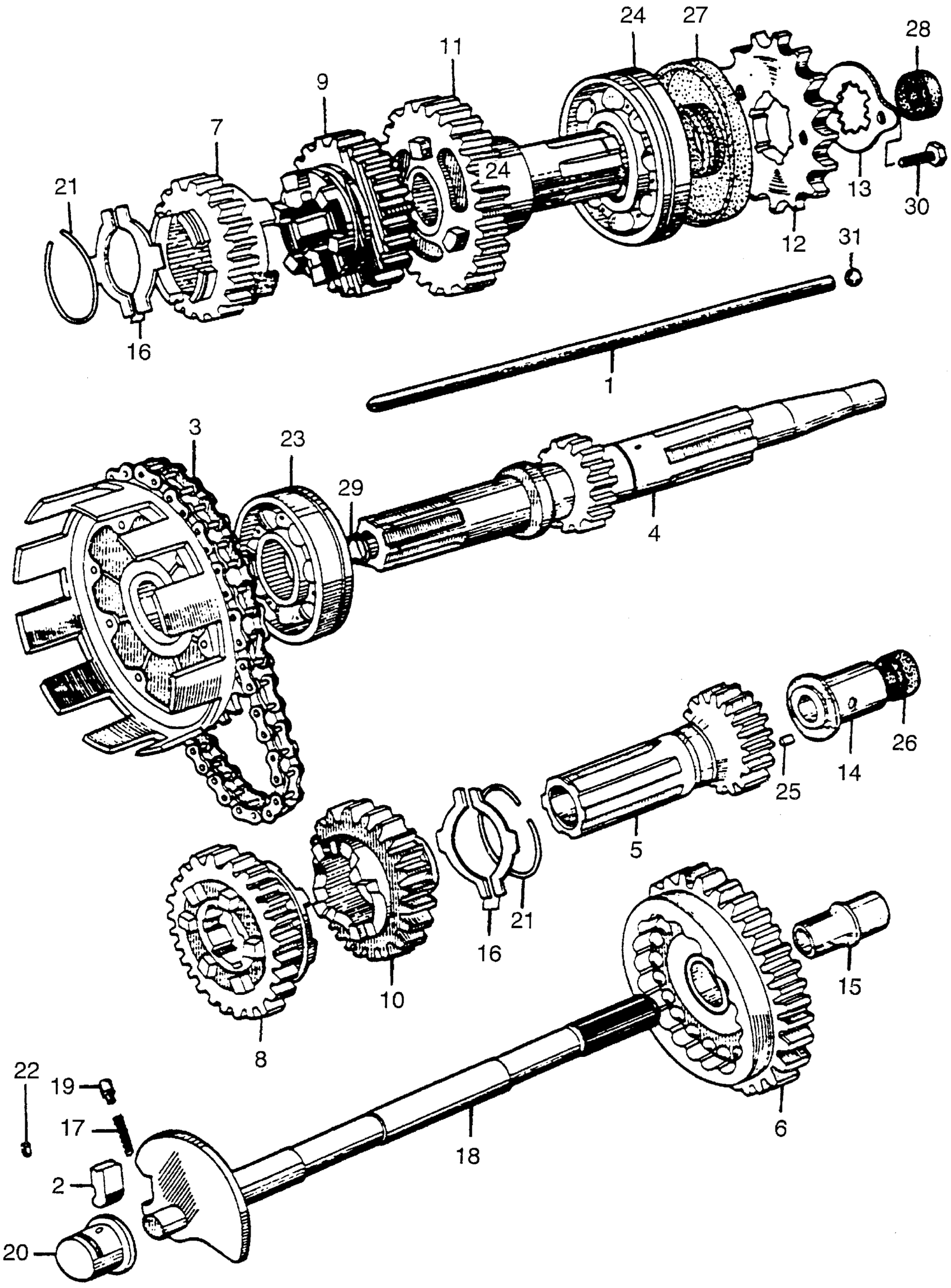

Honda CL72A MOTORCYCLE, JPN, VIN# CL72-100001 TRANSMISSION Diagram

#

Description
Price

1

ROD, CLUTCH LIFTER (NOT AVAILABLE)

22850-259-010

Unavailable

2

PAWL, SPINDLE (NOT AVAILABLE)

28255-250-020

Unavailable

3

CHAIN, PRIMARY DRIVE (NOT AVAILABLE)

23120-268-000

Unavailable

4

MAINSHAFT, TRANSMISSION (18T) (NOT AVAILABLE)

23211-268-010

Unavailable

5

COUNTERSHAFT (21T) (NOT AVAILABLE)

23221-258-000

Unavailable

6

GEAR, LOW (34T) | Use from Engine SN 0210002 to 0317995

23420-268-000

Unavailable

6

GEAR, LOW (34T) | Use from Engine SN 0400001 to 4003437

23420-268-000

Unavailable

6

GEAR, LOW (34T) (NOT AVAILABLE) | Use from Engine SN 1009471

23420-268-020

Unavailable

7

GEAR, SECOND MAINSHAFT (24T) (NOT AVAILABLE)

23430-258-000

Unavailable

8

GEAR, SECOND COUNTERSHAFT (27T) This part replaces 23441-268-000.

23441-268-010

Unavailable

8

GEAR, SECOND COUNTERSHAFT (27T)

23441-268-010

Unavailable

9

GEAR, THIRD COUNTERSHAFT (27T) This part replaces 23451-268-000.

23451-268-010

Unavailable

9

GEAR, THIRD COUNTERSHAFT (27T)

23451-268-010

Unavailable

10

GEAR, THIRD COUNTERSHAFT (23T) (NOT AVAILABLE)

23460-268-000

Unavailable

11

GEAR, TOP (31T) (NOT AVAILABLE)

23470-268-020

Unavailable

12

SPROCKET, DRIVE (15T) (NOT AVAILABLE) This part replaces 23801-268-020.

23801-268-030

Unavailable

12

SPROCKET, DRIVE (15T) (NOT AVAILABLE)

23801-268-030

Unavailable

12

SPROCKET, DRIVE (1ST) (NOT AVAILABLE) This part replaces 23801-273-830.

23801-273-831

Unavailable

12

SPROCKET, DRIVE (1ST) (NOT AVAILABLE)

23801-273-831

Unavailable

13

PLATE, DRIVE SPROCKET (NOT AVAILABLE) This part replaces 23811-259-000.

23811-259-010

Unavailable

13

PLATE, DRIVE SPROCKET (NOT AVAILABLE)

23811-259-010

Unavailable

14

BUSHING (14MM) (NOT AVAILABLE)

23931-259-010

Unavailable

15

BUSHING C (14MM) (NOT AVAILABLE) | Use from Engine SN 0210002 to 0317995

23933-253-000

Unavailable

15

BUSHING C (14MM) (NOT AVAILABLE) | Use from Engine SN 1009471

23933-259-010

Unavailable

16

COTTER, GEAR (NOT AVAILABLE)

23941-250-010

Unavailable

16

COTTER, GEAR (NOT AVAILABLE)

23941-259-305

Unavailable

16

COTTER, GEAR (NOT AVAILABLE)

23943-259-305

Unavailable

17

SPRING, KICK SPINDLE PAWL (NOT AVAILABLE)

28228-250-010

Unavailable

18

SPINDLE, KICK STARTER

28250-259-000

Unavailable

18

SPINDLE, KICK STARTER This part replaces 28251-259-000.

28250-259-000

Unavailable

19

PIN, KICK SPINDLE PAWL (NOT AVAILABLE)

28256-250-000

Unavailable

20

BUSHING, KICK SPINDLE METAL (NOT AVAILABLE)

28258-259-010

Unavailable

21

CIRCLIP (22MM) (NOT AVAILABLE)

90602-250-000

Unavailable

22

PIN, KNOCK (7X12) (NOT AVAILABLE)

90705-259-020

Unavailable

23

BEARING, RADIAL BALL (6305) (NTN CORP.) This part replaces 91003-259-000.

91003-KY2-003

Unavailable

24

BEARING, RADIAL BALL (6206) (NOT AVAILABLE) This part replaces 91004-259-000.

91006-422-004

Unavailable

25

ROLLER (5X6.25)

91102-253-000

Unavailable

26

OIL SEAL (14X25X7)

91202-250-000

Unavailable

27

OIL SEAL (30X62X8)

91203-259-000

Unavailable

28

OIL SEAL (8216) (TC-TYPE)

91205-259-000

Unavailable

29

O-RING (12.5X2.2)

91303-634-010

$5.69

29

O-RING (12.5X2.2) This part replaces 91305-259-000.

91303-634-010

$5.69

30

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

30

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

31

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
