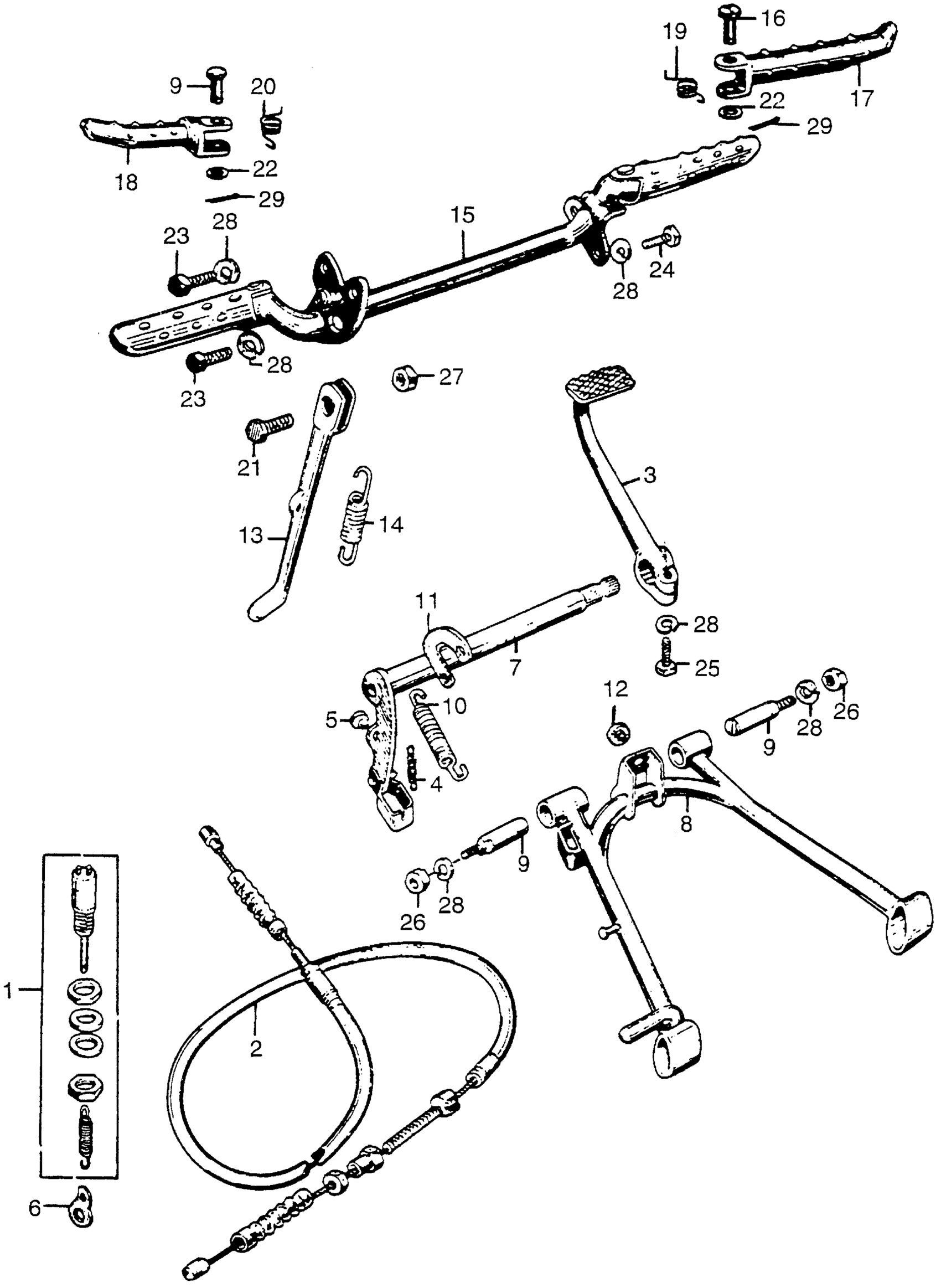

Honda CL72A MOTORCYCLE, JPN, VIN# CL72-100001 MAIN STAND + STEP BAR Diagram

#

Description
Price

1

SWITCH ASSY., STOP LIGHT (NOT AVAILABLE)

35350-273-000

Unavailable

2

CABLE, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

43460-273-000

Unavailable

2

CABLE, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1000001

43460-273-010

Unavailable

3

PEDAL, BRAKE (NOT AVAILABLE)

46500-273-670

Unavailable

4

SPRING, BRAKE PEDAL RETURN (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

46514-273-010

Unavailable

4

SPRING, BRAKE PEDAL RETURN | Use from Frame SN 1000001 This part replaces 50542-273-010.

95014-72302

Unavailable

4

SPRING, BRAKE PEDAL RETURN | Use from Frame SN 4001597 to 4003196 This part replaces 50542-273-010.

95014-72302

Unavailable

4

SPRING, BRAKE PEDAL RETURN | Use from Frame SN 1000001 This part replaces 95014-72301.

95014-72302

Unavailable

4

SPRING, BRAKE PEDAL RETURN | Use from Frame SN 4001597 to 4003196 This part replaces 95014-72301.

95014-72302

Unavailable

4

SPRING, BRAKE PEDAL RETURN | Use from Frame SN 1000001

95014-72302

Unavailable

4

SPRING, BRAKE PEDAL RETURN | Use from Frame SN 4001597 to 4003196

95014-72302

Unavailable

5

RUBBER, RR. BRAKE STOPPER (NOT AVAILABLE)

46516-273-000

Unavailable

6

HOOK, BRAKE PEDAL SPRING (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

46517-273-000

Unavailable

6

HOOK, BRAKE PEDAL SPRING (NOT AVAILABLE) | Use from Frame SN 1000001

46517-273-010

Unavailable

7

SPINDLE, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

46520-273-000

Unavailable

7

SPINDLE, RR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1000001

46520-273-010

Unavailable

8

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-273-670B

Unavailable

9

SHAFT, MAIN STAND (NOT AVAILABLE)

50521-273-000

Unavailable

10

SPRING, MAIN STAND (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

50522-250-000

Unavailable

10

SPRING, MAIN STAND (NOT AVAILABLE) | Use from Frame SN 1008851

50522-268-000

Unavailable

11

HOOK, MAIN STAND SPRING (NOT AVAILABLE)

50523-273-010

Unavailable

12

RUBBER, MAIN STAND STOPPER (NOT AVAILABLE)

50524-273-000

Unavailable

13

BAR, SIDE STAND (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

50530-273-010

Unavailable

13

BAR, SIDE STAND (NOT AVAILABLE) | Use from Frame SN 1100001 to 4003196

50530-273-010

Unavailable

14

SPRING D, SIDE STAND This part replaces 50542-273-000.

95014-72402

$2.92

14

SPRING, BRAKE PEDAL RETURN This part replaces 50542-273-010.

95014-72302

Unavailable

14

SPRING D, SIDE STAND This part replaces 50542-286-000.

95014-72402

$2.92

14

SPRING, BRAKE PEDAL RETURN This part replaces 95014-72301.

95014-72302

Unavailable

14

SPRING, BRAKE PEDAL RETURN

95014-72302

Unavailable

14

SPRING D, SIDE STAND This part replaces 95014-72400.

95014-72402

$2.92

14

SPRING D, SIDE STAND This part replaces 95014-72401.

95014-72402

$2.92

14

SPRING D, SIDE STAND

95014-72402

$2.92

15

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50600-273-670B

Unavailable

16

PIN, STEP BAR JOINT

50603-MN1-670

Unavailable

16

PIN, STEP BAR JOINT This part replaces 50603-273-671.

50603-MN1-670

Unavailable

17

ARM, R. STEP *NH1* (BLACK) (NOT AVAILABLE)

50604-273-670B

Unavailable

18

ARM, L. STEP *NH1* (BLACK)

50640-273-670B

Unavailable

19

SPRING, R. STEP RETURN (NOT AVAILABLE)

50662-273-670

Unavailable

20

SPRING, L. STEP RETURN (NOT AVAILABLE)

50663-273-670

Unavailable

21

BOLT, SIDE STAND BAR PIVOT (NOT AVAILABLE)

90108-273-000

Unavailable

22

WASHER, PLAIN (8MM) This part replaces 90507-222-000.

90518-921-000

$1.49

22

WASHER, PLAIN (8MM)

90518-921-000

$1.49

22

WASHER, PLAIN (8MM) This part replaces 90518-931-000.

90518-921-000

$1.49

22

WASHER, PLAIN (8MM) This part replaces 90555-283-000.

90518-921-000

$1.49

23

BOLT, HEX. (8X16) This part replaces 92000-08016.

92101-08016-0A

$1.49

23

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

23

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

23

BOLT, HEX. (8X16) This part replaces 92200-08016-OA.

92101-08016-0A

$1.49

24

BOLT, HEX. (8X25) This part replaces 92000-08025.

92101-08025-0A

$1.74

24

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

24

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

25

BOLT, HEX. (8X28) This part replaces 92000-08028.

92101-08028-0A

$1.80

25

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

25

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

26

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

26

NUT, HEX. (8MM)

94030-08000

$1.49

26

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

27

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

27

NUT, HEX. (10MM)

94030-10000

$1.49

27

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

28

WASHER, SPRING (8MM)

94111-08000

$1.49

29

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

29

PIN, COTTER (1.6X25)

94201-16250

$1.49
