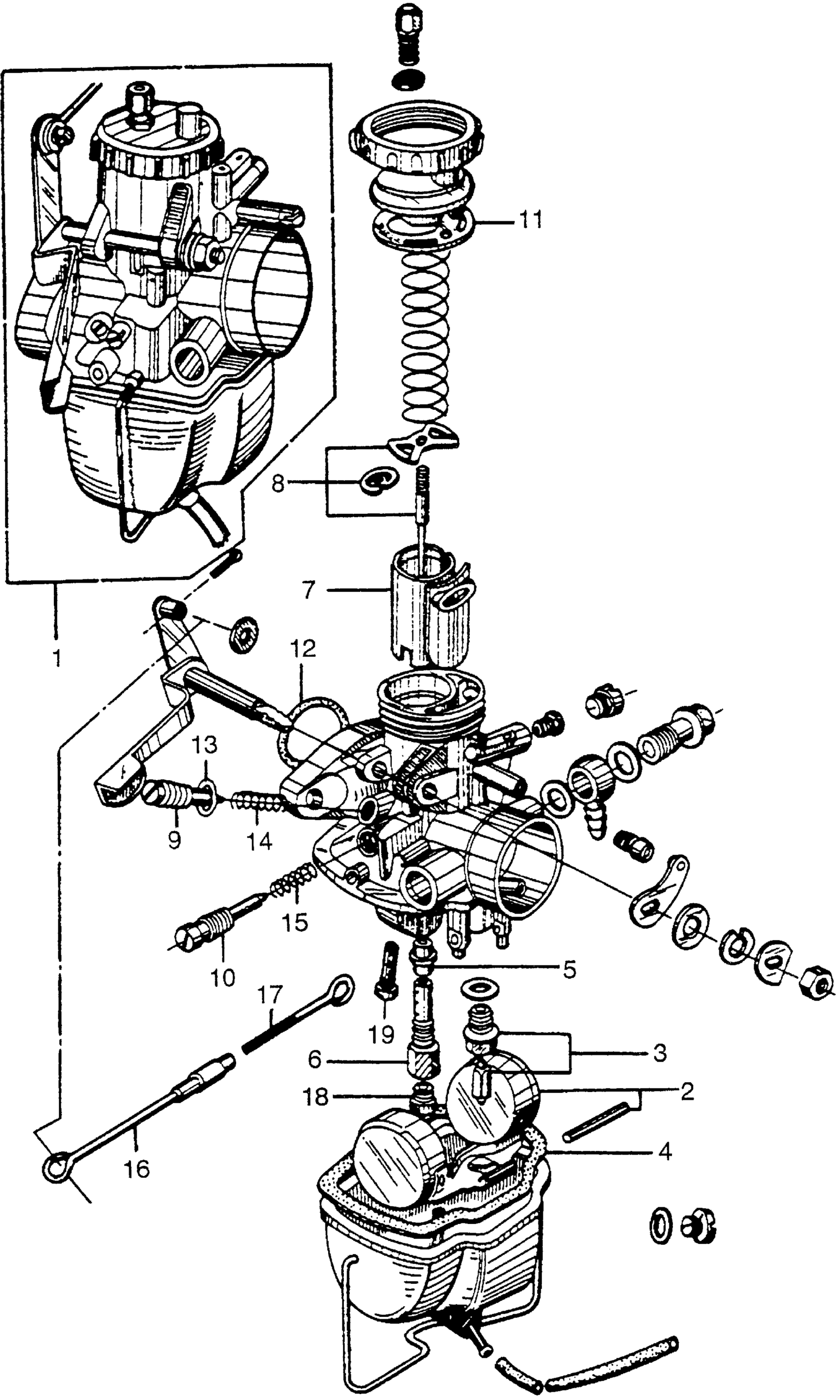

Honda CL72A MOTORCYCLE, JPN, VIN# CL72-100001 LEFT CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY., L. (NOT AVAILABLE)

16102-273-000

Unavailable

2

FLOAT SET

16013-286-014

$32.28

2

FLOAT SET This part replaces 16122-259-014.

16013-286-014

$32.28

3

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

3

VALVE SET, FLOAT

16011-375-004

$28.96

3

VALVE SET, FLOAT This part replaces 16125-268-004.

16011-375-004

$28.96

4

WASHER, FLOAT CHAMBER

16129-268-004

Unavailable

5

NEEDLE, JET (NOT AVAILABLE)

16133-259-004

$8.48

6

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-273-004

Unavailable

7

VALVE, THROTTLE (NOT AVAILABLE)

16146-273-004

Unavailable

8

NEEDLE, JET (NOT AVAILABLE)

16151-273-004

Unavailable

9

SCREW, AIR (NOT AVAILABLE)

16162-259-004

Unavailable

10

SCREW, THROTTLE STOP (NOT AVAILABLE) This part replaces 16163-011-004.

16163-217-004

Unavailable

10

SCREW, THROTTLE STOP

16163-217-004

Unavailable

11

WASHER, TOP (NOT AVAILABLE)

16171-250-004

Unavailable

11

WASHER, TOP (NOT AVAILABLE) This part replaces 16171-259-004.

16171-250-004

Unavailable

12

O-RING (27X2.4)

16173-253-004

Unavailable

13

O-RING (2.8MM) (NOT AVAILABLE)

16175-260-004

Unavailable

14

SPRING, AIR SCREW (NOT AVAILABLE)

16181-202-004

$3.70

15

SPRING, THROTTLE STOP (NOT AVAILABLE)

16182-011-004

Unavailable

16

ROD A, CHOKE LEVER (NOT AVAILABLE)

17941-268-010

Unavailable

17

ROD B, CHOKE LEVER (NOT AVAILABLE)

17942-268-010

Unavailable

18

JET, MAIN (#105) (NOT AVAILABLE)

99102-10504

Unavailable

18

JET, MAIN (#110) (NOT AVAILABLE)

99102-11004

Unavailable

18

JET, MAIN (#115) (NOT AVAILABLE)

99102-11504

Unavailable

18

JET, MAIN (#120) (NOT AVAILABLE)

99102-12004

Unavailable

18

JET, MAIN (#125) (NOT AVAILABLE)

99102-12504

Unavailable

19

JET, SLOW (#35) (NOT AVAILABLE)

99134-03504

Unavailable

19

JET, SLOW (#38) (NOT AVAILABLE)

99134-03804

Unavailable

19

JET, SLOW (#40) (NOT AVAILABLE)

99134-04004

Unavailable

19

JET, SLOW (#45) (NOT AVAILABLE) This part replaces 99134-04504.

99132-04504

Unavailable
