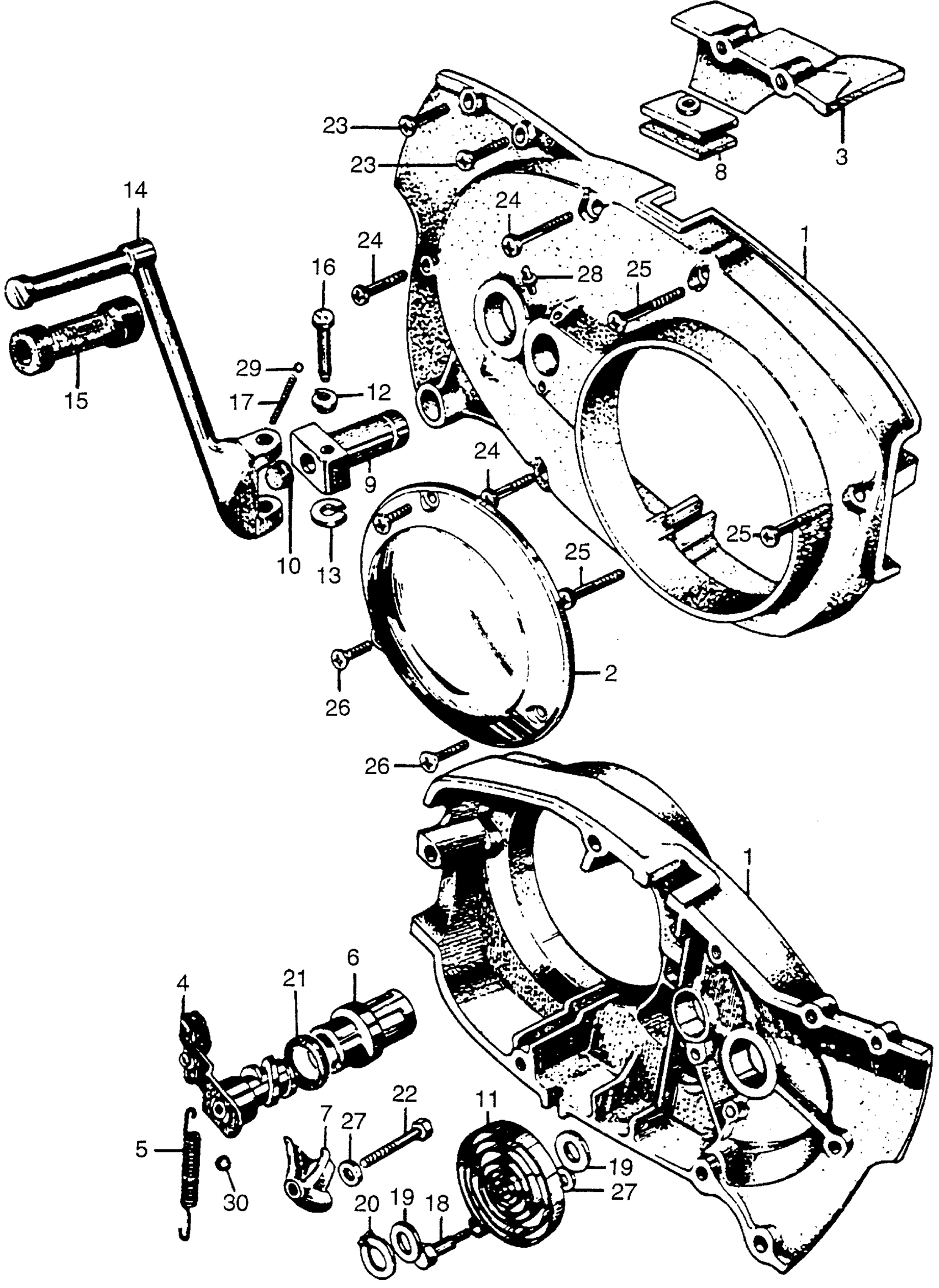

Honda CL72A MOTORCYCLE, JPN, VIN# CL72-100001 KICK STARTER + RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, R. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 0210002 to 0317995

11330-273-000

Unavailable

1

COVER, R. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 1000458

11330-273-010

Unavailable

2

COVER, ALTERNATOR (NOT AVAILABLE)

11631-268-020

Unavailable

3

COVER, DRIVE SPROCKET (NOT AVAILABLE)

11661-268-010

Unavailable

4

THREAD, CLUTCH LIFTER

22810-266-000

Unavailable

5

SPRING, CLUTCH LEVER (NOT AVAILABLE) | Use from Engine SN 0210002 to 0317995

22815-259-010

Unavailable

5

SPRING, CLUTCH LEVER (NOT AVAILABLE) | Use from Engine SN 1000458

22815-268-000

Unavailable

6

ADJUSTER, CLUTCH

22841-266-000

Unavailable

7

PIECE, ADJUSTER FIXING This part replaces 22844-200-000.

22844-200-010

Unavailable

7

PIECE, ADJUSTER FIXING

22844-200-010

Unavailable

7

PIECE, ADJUSTER FIXING (NOT AVAILABLE)

22844-323-000

Unavailable

8

JOINT, CLUTCH CABLE (NOT AVAILABLE) | Use from Engine SN 0210002 to 0317995

22875-259-020

Unavailable

8

JOINT, CLUTCH CABLE (NOT AVAILABLE) | Use from Engine SN 1000458

22875-268-000

Unavailable

9

JOINT, KICK STARTER

28241-259-000

Unavailable

10

PLUG, KICK JOINT SEALING (NOT AVAILABLE)

28248-259-010

Unavailable

11

SPRING, KICK STARTER (NOT AVAILABLE)

28281-250-000

Unavailable

12

SPRING, KICK STARTER (NOT AVAILABLE)

28292-250-010

Unavailable

13

CLIP, KICK STARTER KNUCKLE PIN

28293-250-000

Unavailable

14

ARM, KICK STARTER

28300-259-000

Unavailable

14

ARM, KICK STARTER This part replaces 28300-273-000.

28300-259-000

Unavailable

15

RUBBER B, KICK STARTER This part replaces 28310-216-000.

95011-52000

$4.12

15

RUBBER B, KICK STARTER This part replaces 28311-200-000.

95011-52000

$4.12

15

RUBBER B, KICK STARTER This part replaces 28311-250-000.

95011-52000

$4.12

15

RUBBER B, KICK STARTER

95011-52000

$4.12

16

PIN, KICK STARTER KNUCKLE (NOT AVAILABLE)

28321-250-000

Unavailable

17

SPRING, KICK STARTER STOPPER (NOT AVAILABLE)

28333-250-000

Unavailable

18

BOLT, KICK SPRING CLAMP (NOT AVAILABLE)

90029-250-000

Unavailable

19

WASHER, SPRING (NOT AVAILABLE)

90423-250-000

Unavailable

20

CIRCLIP (OUTER) (22MM) This part replaces 90661-250-000.

94510-22000

$1.49

20

CIRCLIP (OUTER) (22MM)

94510-22000

$1.49

21

OIL SEAL (22X26X29X8) This part replaces 91205-200-000.

91205-200-005

Unavailable

21

OIL SEAL (22X26X29X8)

91205-200-005

Unavailable

22

BOLT, HEX. (6X45) This part replaces 92000-06045.

92101-06045-0A

$1.49

22

BOLT, HEX. (6X45) This part replaces 92000-06045-0A.

92101-06045-0A

$1.49

22

BOLT, HEX. (6X45)

92101-06045-0A

$1.49

23

SCREW, PAN (6X20) This part replaces 93500-06020-0B.

93500-06020-0H

$1.49

23

SCREW, PAN (6X20)

93500-06020-0H

$1.49

23

SCREW, PAN (6X20) This part replaces 93500-06020-02.

93500-06020-0H

$1.49

23

SCREW, PAN (6X20) This part replaces 93500-06020-08.

93500-06020-0H

$1.49

24

SCREW, PAN (6X30) This part replaces 93500-06030.

93500-06030-0A

$1.49

24

SCREW, PAN (6X30)

93500-06030-0A

$1.49

25

SCREW, PAN (6X40) This part replaces 93500-06040.

93500-06040-0A

$1.49

25

SCREW, PAN (6X40)

93500-06040-0A

$1.49

26

SCREW, OVAL (5X12) This part replaces 93700-05012.

93700-05012-0A

$1.49

26

SCREW, OVAL (5X12)

93700-05012-0A

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

FITTING, GREASE (A.45) This part replaces 96201-30000.

96201-30001

$1.49

28

FITTING, GREASE (A.45)

96201-30001

$1.49

29

BALL, STEEL (#8) (1/4)

96211-08000

$1.49

30

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
