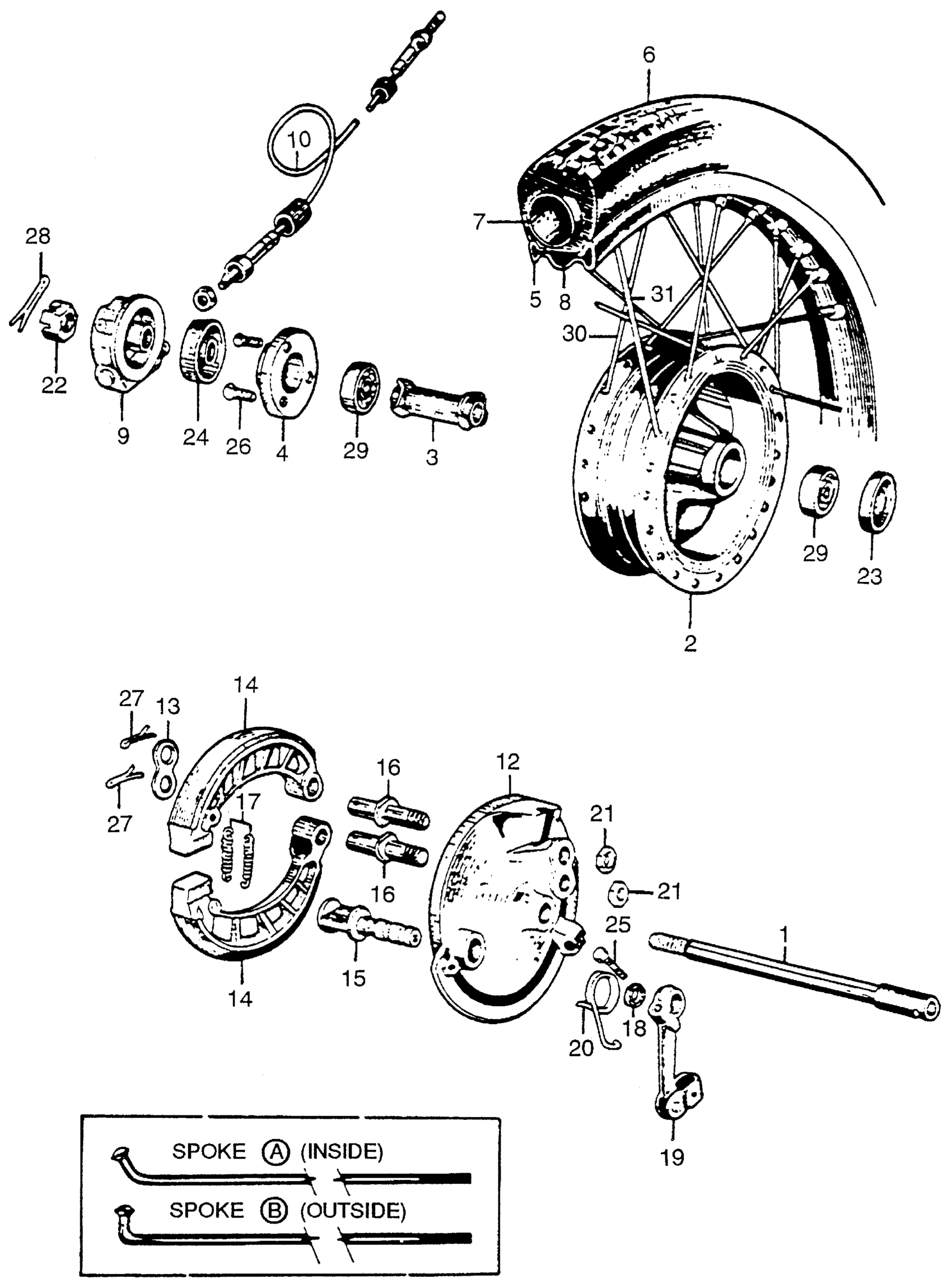

Honda CL72A MOTORCYCLE, JPN, VIN# CL72-100001 FRONT WHEEL I Diagram

#

Description
Price

1

AXLE, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

44301-273-000

Unavailable

1

AXLE, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

44301-273-000

Unavailable

1

AXLE, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

44301-273-000

Unavailable

2

HUB, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

44601-273-000

Unavailable

2

HUB, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

44601-273-000

Unavailable

2

HUB, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

44601-273-000

Unavailable

3

COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

44620-273-000

Unavailable

3

COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

44620-273-000

Unavailable

3

COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

44620-273-000

Unavailable

4

RETAINER, FR. WHEEL BEARING (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

44641-273-000

Unavailable

4

RETAINER, FR. WHEEL BEARING (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

44641-273-000

Unavailable

4

RETAINER, FR. WHEEL BEARING (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

44641-273-000

Unavailable

5

RIM, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995 This part replaces 44701-273-000.

44701-273-305

Unavailable

5

RIM, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 1000001 to 1008850 This part replaces 44701-273-000.

44701-273-305

Unavailable

5

RIM, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459 This part replaces 44701-273-000.

44701-273-305

Unavailable

5

RIM, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196 This part replaces 44701-273-000.

44701-273-305

Unavailable

5

RIM, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

44701-273-305

Unavailable

5

RIM, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

44701-273-305

Unavailable

5

RIM, FR. WHEEL (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

44701-273-305

Unavailable

6

TIRE, FR. (3.00-19) (4PR) (INOUE) (NOT AVAILABLE) This part replaces 44711-273-000.

44711-313-003

Unavailable

6

TIRE, FR. (3.00-19) (4PR) (INOUE) (NOT AVAILABLE) This part replaces 44711-290-003.

44711-313-003

Unavailable

6

TIRE, FR. (3.00-19) (4PR) (INOUE) (NOT AVAILABLE)

44711-313-003

Unavailable

7

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 08400-31310.

44712-110-003

Unavailable

7

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 08400-41310.

44712-110-003

Unavailable

7

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-273-000.

44712-110-003

Unavailable

7

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-290-000.

44712-110-003

Unavailable

7

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-294-004.

44712-110-003

Unavailable

7

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-300-000.

44712-110-003

Unavailable

7

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-310-004.

44712-110-003

Unavailable

7

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-312-003.

44712-110-003

Unavailable

7

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-401-681.

44712-110-003

Unavailable

7

TUBE, TIRE (19) (BS) (NOT AVAILABLE) This part replaces 44712-413-009.

44712-110-003

Unavailable

8

FLAP, TIRE (NOT AVAILABLE)

44713-273-000

Unavailable

9

BOX ASSY., SPEEDOMETER GEAR This part replaces 44800-273-000.

44800-273-010

Unavailable

9

BOX ASSY., SPEEDOMETER GEAR

44800-273-010

Unavailable

10

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE) This part replaces 44830-216-000.

44830-346-750

Unavailable

10

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE) This part replaces 44830-273-000.

44830-346-750

Unavailable

10

CABLE ASSY., SPEEDOMETER (NOT AVAILABLE)

44830-346-750

Unavailable

12

PANEL, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

45100-273-000

Unavailable

12

PANEL, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

45100-273-000

Unavailable

12

PANEL, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

45100-273-000

Unavailable

13

WASHER, ANCHOR PIN SETTING (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

45106-273-300

Unavailable

13

WASHER, ANCHOR PIN SETTING (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

45106-273-300

Unavailable

13

WASHER, ANCHOR PIN SETTING (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

45106-273-300

Unavailable

14

SHOE, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

45120-273-000

Unavailable

14

SHOE, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

45120-273-000

Unavailable

14

SHOE, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

45120-273-000

Unavailable

15

CAM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

45131-273-000

Unavailable

15

CAM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

45131-273-000

Unavailable

15

CAM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

45131-273-000

Unavailable

16

PIN, FR. SHOE (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

45132-273-300

Unavailable

16

PIN, FR. SHOE (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

45132-273-300

Unavailable

16

PIN, FR. SHOE (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

45132-273-300

Unavailable

17

SPRING, BRAKE SHOE (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

45133-273-000

Unavailable

17

SPRING, BRAKE SHOE (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

45133-273-000

Unavailable

17

SPRING, BRAKE SHOE (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

45133-273-000

Unavailable

18

DUST SEAL, BRAKE CAM | Use from Frame SN 0020002 to 0317995

45134-250-000

$2.92

18

DUST SEAL, BRAKE CAM | Use from Frame SN 1000001 to 1008850

45134-250-000

$2.92

18

DUST SEAL, BRAKE CAM | Use from Frame SN 1100001 to 1109459

45134-250-000

$2.92

18

DUST SEAL, BRAKE CAM | Use from Frame SN 4000001 to 4003196

45134-250-000

$2.92

19

ARM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

45410-273-000

Unavailable

19

ARM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

45410-273-000

Unavailable

19

ARM, FR. BRAKE (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

45410-273-000

Unavailable

20

SPRING, BRAKE ARM RETURN (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

45435-273-000

Unavailable

20

SPRING, BRAKE ARM RETURN (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

45435-273-000

Unavailable

20

SPRING, BRAKE ARM RETURN (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

45435-273-000

Unavailable

21

NUT, ANCHOR PIN LOCKING (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

90316-273-000

Unavailable

21

NUT, ANCHOR PIN LOCKING (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

90316-273-000

Unavailable

21

NUT, ANCHOR PIN LOCKING (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

90316-273-000

Unavailable

22

NUT, CASTLE (4MM) (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

90359-273-000

Unavailable

22

NUT, CASTLE (4MM) (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

90359-273-000

Unavailable

22

NUT, CASTLE (4MM) (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

90359-273-000

Unavailable

23

OIL SEAL (53X65X7) (NOT AVAILABLE) | Use from Frame SN 0020002 to 0317995

91251-273-000

Unavailable

23

OIL SEAL (53X65X7) (NOT AVAILABLE) | Use from Frame SN 1100001 to 1109459

91251-273-000

Unavailable

23

OIL SEAL (53X65X7) (NOT AVAILABLE) | Use from Frame SN 4000001 to 4003196

91251-273-000

Unavailable

24

OIL SEAL (35X47X10.5) | Use from Frame SN 0020002 to 0317995

91255-273-000

Unavailable

24

OIL SEAL (35X47X10.5) | Use from Frame SN 1000001 to 1008850

91255-273-000

Unavailable

24

OIL SEAL (35X47X10.5) | Use from Frame SN 1100001 to 1109459

91255-273-000

Unavailable

24

OIL SEAL (35X47X10.5) | Use from Frame SN 4000001 to 4003196

91255-273-000

Unavailable

25

BOLT, HEX. (6X22) This part replaces 92000-06022-0B.

92101-06022-0B

$1.49

25

BOLT, HEX. (6X22) This part replaces 92000-06022-02.

92101-06022-0B

$1.49

25

BOLT, HEX. (6X22)

92101-06022-0B

$1.49

26

SCREW, FLAT (6X16) This part replaces 93600-06016.

93600-06016-0A

$1.49

26

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

27

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$1.49

27

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

27

PIN, COTTER (2.5MM)

94201-25300

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

28

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

28

PIN, COTTER (3.0X45)

94201-30450

$1.49

29

BEARING, RADIAL BALL (6302Z) (SOURCE: VINTAGE PARTS INC.)

96120-63020

Unavailable

29

BEARING, RADIAL BALL (6302U)

96140-63020

$16.99

30

SPOKE A, FR. This part replaces 97282-53164-1.

97282-GHBP0-00

Unavailable

31

SPOKE SET,B FR This part replaces 97491-53168-1.

97491-GHBP0-00

Unavailable
