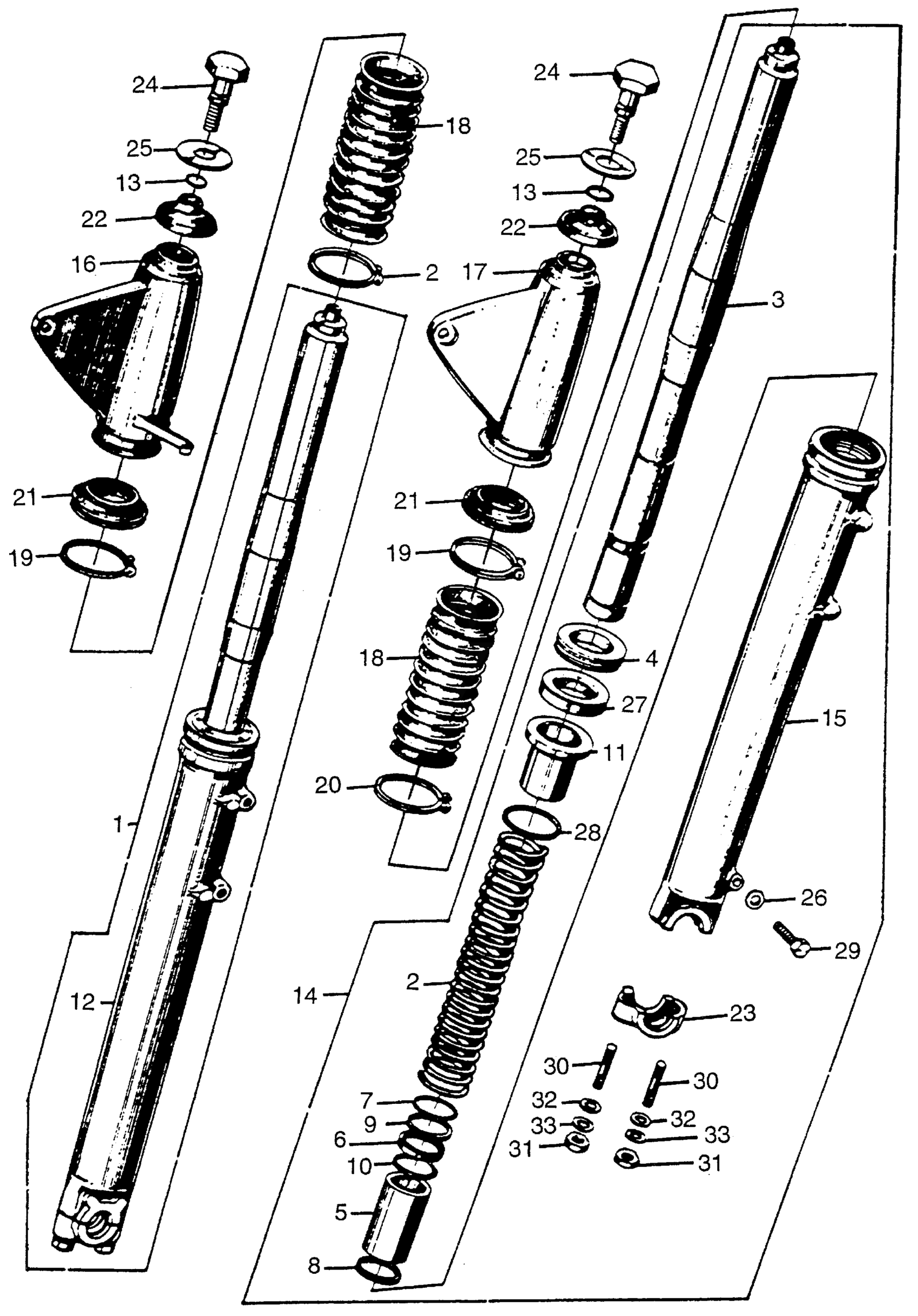

Honda CL72A MOTORCYCLE, JPN, VIN# CL72-100001 FRONT FORK II Diagram

#

Description
Price

1

FORK ASSY., R. FR. *NH10M* (DARK SILVER METALLIC) | Use from Frame SN 1008851

51400-273-010S

Unavailable

2

SPRING, FR. FORK (NOT AVAILABLE)

51401-273-000

Unavailable

3

PIPE, FR. FORK (NOT AVAILABLE)

51410-273-020

Unavailable

4

RETAINER, OIL SEAL (NOT AVAILABLE) | Use from Frame SN 1008851

51432-273-010

Unavailable

5

PISTON, FR. FORK (NOT AVAILABLE)

51442-273-010

Unavailable

6

VALVE, FR. DAMPER (NOT AVAILABLE)

51443-273-000

Unavailable

7

RING, FR. FORK STOPPER (NOT AVAILABLE)

51444-273-000

Unavailable

8

RING, FR. FORK PISTON SNAP (NOT AVAILABLE)

51445-273-000

Unavailable

9

RING, SHOCK VALVE STOPPER (NOT AVAILABLE)

51446-273-000

Unavailable

10

RING, PISTON STOPPER (NOT AVAILABLE) | Use from Frame SN 1008851

51447-273-000

Unavailable

11

GUIDE, FR. FORK PIPE (NOT AVAILABLE) | Use from Frame SN 1008851

51451-273-010

Unavailable

12

CASE, R. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) | Use from Frame SN 1008851

51460-273-010S

Unavailable

13

O-RING (8.4X2.4) This part replaces 51493-273-000.

94608-10000

$1.49

13

O-RING (8.4X2.4)

94608-10000

$1.49

14

FORK ASSY., L. FR. *NH10M* (DARK SILVER METALLIC)

51500-273-010S

Unavailable

15

CASE, L. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) | Use from Frame SN 1008851

51520-273-010S

Unavailable

16

COVER, R. FR. FORK | Use from Frame SN 1007214

51602-273-010Z

Unavailable

17

COVER, L. FR. FORK (NOT AVAILABLE) | Use from Frame SN 1007214

51606-273-010Z

Unavailable

18

BOOT, FR. FORK (NOT AVAILABLE) | Use from Frame SN 1008851

51611-273-010

Unavailable

19

RING, FR. FORK BOOT SETTING (NOT AVAILABLE) | Use from Frame SN 1008851

51613-273-000

Unavailable

20

SET-RING, FR. FORK BOOTS (NOT AVAILABLE) | Use from Frame SN 1008851

51619-273-000

Unavailable

21

DUST SEAL, FR. FORK (NOT AVAILABLE)

51621-273-000

Unavailable

22

CAP, FR. FORK COVER (NOT AVAILABLE) This part replaces 51623-273-000.

51623-273-670

Unavailable

22

CAP, FR. FORK COVER (NOT AVAILABLE)

51623-273-670

Unavailable

23

HOLDER 1C, FR. FORK AXLE | Use from Frame SN 1008851 This part replaces 51634-283-000T.

95014-41000

$13.38

23

HOLDER 1C, FR. FORK AXLE | Use from Frame SN 1008851

95014-41000

$13.38

24

BOLT, FR. FORK (NOT AVAILABLE)

90123-273-000

Unavailable

25

WASHER, FR. FORK (NOT AVAILABLE)

90506-273-000

Unavailable

26

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

27

OIL SEAL (35X46X11) | Use from Frame SN 1008851 This part replaces 91255-273-010.

91255-292-003

$14.61

27

OIL SEAL (35X46X11) | Use from Frame SN 1008851

91255-292-003

$14.61

28

O-RING (38X17) (NOT AVAILABLE) | Use from Frame SN 1008851

91355-273-000

Unavailable

29

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

29

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

29

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

30

BOLT, STUD (8X32) This part replaces 92700-08049.

92900-08032-0B

$2.30

30

BOLT, STUD (8X32)

92900-08032-0B

$2.30

31

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

31

NUT, HEX. (8MM)

94030-08000

$1.49

31

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

32

WASHER, PLAIN (8MM)

94101-08000

$1.49

33

WASHER, SPRING (8MM)

94111-08000

$1.49
