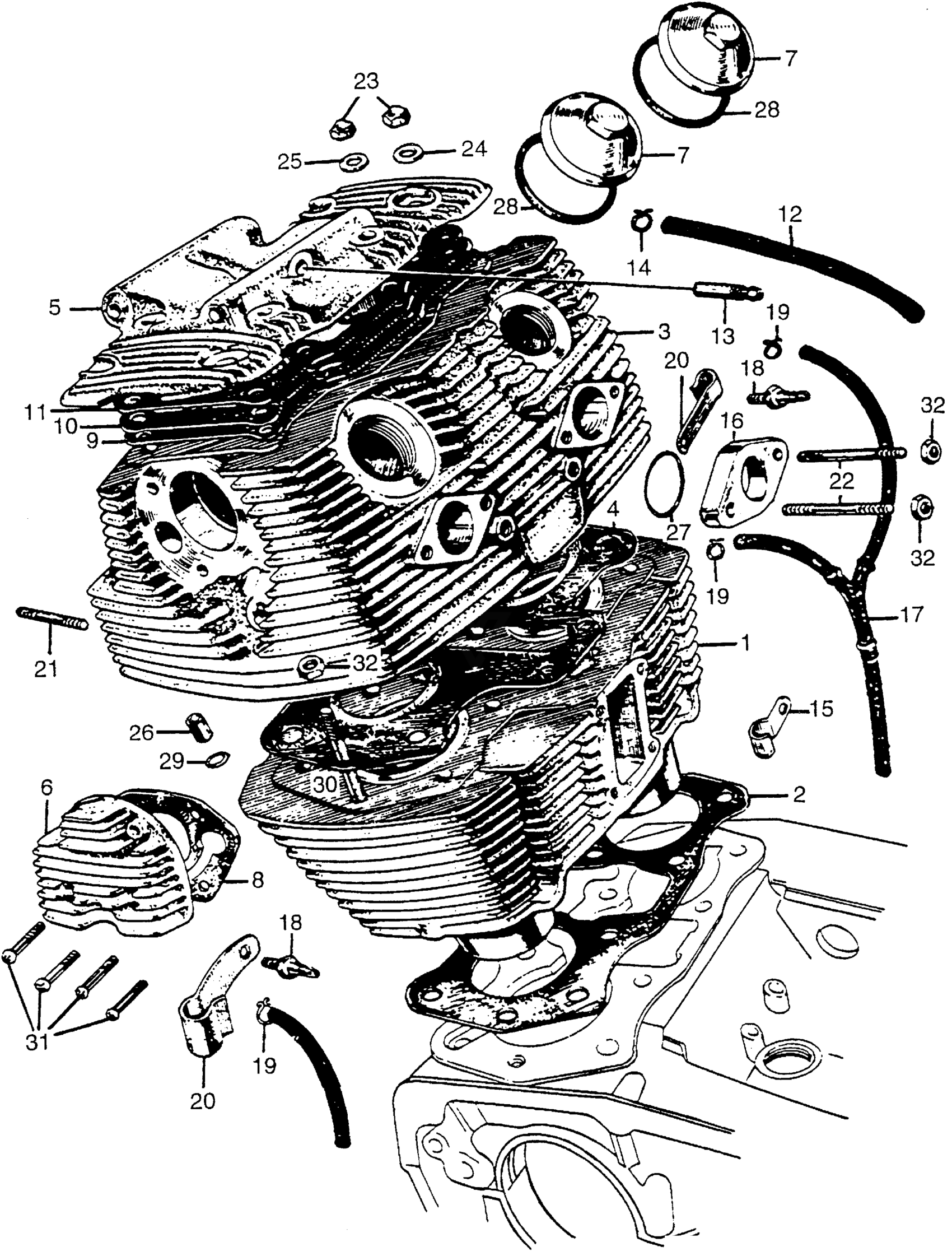

Honda CL72A MOTORCYCLE, JPN, VIN# CL72-100001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE)

12100-262-010

Unavailable

2

GASKET, CYLINDER (NOT AVAILABLE)

12191-259-010

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-268-030.

12200-268-040

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE)

12200-268-040

Unavailable

4

GASKET, CYL HD This part replaces 12251-268-000.

12251-268-306

Unavailable

5

COVER, CYLINDER HEAD (NOT AVAILABLE) | Use from Engine SN 0210002 to 0317995

12301-273-000

Unavailable

5

COVER, CYLINDER HEAD (NOT AVAILABLE) | Use from Engine SN 4000001 to 4001596

12301-273-000

Unavailable

5

COVER, CYLINDER HEAD (NOT AVAILABLE) | Use from Engine SN 1000001

12301-273-020

Unavailable

6

COVER, L. CYLINDER HEAD SIDE (NOT AVAILABLE) | Use from Engine SN 0210002 to 0311270

12341-259-010

Unavailable

6

COVER, L. CYLINDER HEAD SIDE | Use from Engine SN 0311271 to 0317995

12341-259-020

Unavailable

6

COVER, L. CYLINDER HEAD SIDE | Use from Engine SN 1000001

12341-259-020

Unavailable

6

COVER, L. CYLINDER HEAD SIDE | Use from Engine SN 1100001 to 1109459

12341-259-020

Unavailable

6

COVER, L. CYLINDER HEAD SIDE | Use from Engine SN 4000001 to 4003437

12341-259-020

Unavailable

7

CAP, CYLINDER HEAD (NOT AVAILABLE)

12361-259-000

Unavailable

8

GASKET, CYLINDER HEAD SIDE COVER (NOT AVAILABLE)

12391-258-000

Unavailable

9

GASKET, CYLINDER HEAD COVER (NOT AVAILABLE)

12391-259-000

Unavailable

10

PLATE, BREATHER SHIELD (NOT AVAILABLE)

15755-259-000

Unavailable

11

GASKET, BREATHER SHIELD PLATE (NOT AVAILABLE)

15759-259-000

Unavailable

12

TUBE A, BREATHER (NOT AVAILABLE)

15761-259-000

Unavailable

12

TUBE A, BREATHER (NOT AVAILABLE) | Use from Engine SN 0210002 to 0317995

15761-259-010

Unavailable

12

TUBE A, BREATHER (NOT AVAILABLE) | Use from Engine SN 4000001 to 4001885

15761-259-010

Unavailable

13

JOINT, BREATHER (NOT AVAILABLE)

15766-259-000

Unavailable

14

CLIP, BREATHER TUBE (NOT AVAILABLE)

15772-259-000

Unavailable

15

SUPPORTER, TUBE (NOT AVAILABLE)

15775-259-000

Unavailable

16

INSULATOR, CARBURETOR (NOT AVAILABLE)

16211-268-000

Unavailable

17

TUBE, AIR VENT (NOT AVAILABLE) This part replaces 16230-268-000.

16230-268-010

Unavailable

17

TUBE, AIR VENT (NOT AVAILABLE)

16230-268-010

Unavailable

17

TUBE, AIR VENT (NOT AVAILABLE) This part replaces 16230-273-000.

16230-268-010

Unavailable

18

JOINT, AIR VENT TUBE (NOT AVAILABLE)

16241-253-000

Unavailable

19

CLIP, TUBE (B7) This part replaces 16242-259-000.

95002-02070

$1.80

19

CLIP, TUBE (B7)

95002-02070

$1.80

20

HOLDER, IGNITION WIRE (NOT AVAILABLE)

32908-268-000

Unavailable

21

BOLT 2, STUD (6X28) This part replaces 92700-06038-10.

92900-06028-1B

Unavailable

21

BOLT 2, STUD (6X28)

92900-06028-1B

Unavailable

22

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.89

22

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

22

BOLT, STUD (6X28)

92900-06028-0B

$1.89

22

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.89

23

NUT, CAP (8MM) (NOT AVAILABLE)

90281-259-000

Unavailable

24

WASHER, SEAL (8MM) This part replaces 90441-216-000.

90441-286-000

$1.90

24

WASHER, SEAL (8MM) This part replaces 90441-259-000.

90441-286-000

$1.90

24

WASHER, SEAL (8MM)

90441-286-000

$1.90

25

WASHER, SEALING (8MM) (NOT AVAILABLE) | Use from Engine SN 1005205

90482-259-000

Unavailable

26

PIN, KNOCK (11X18) (NOT AVAILABLE)

90707-259-000

Unavailable

27

O-RING (26.9X2.4) (NOK) This part replaces 91301-253-000.

91302-PF0-003

$2.92

27

O-RING (26.9X2.4)

91302-PF0-003

$2.92

28

O-RING (47X3.2)

91302-250-010

$7.30

29

O-RING (11X2.0)

91303-259-000

$3.26

30

BOLT, STUD (6X28) This part replaces 90038-250-000.

92900-06028-0B

$1.89

30

BOLT, STUD (6X28) This part replaces 90051-200-000.

92900-06028-0B

$1.89

30

BOLT, STUD (6X35)

92700-06035

$1.89

30

BOLT, STUD (6X28) This part replaces 92700-06035-0B.

92900-06028-0B

$1.89

30

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.89

30

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.89

30

BOLT, STUD (6X28)

92900-06028-0B

$1.89

30

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.89

31

SCREW, PAN (6X18) (SOURCE: VINTAGE PARTS INC.)

93500-06018-0B

Unavailable

31

SCREW, PAN (6X18) (SOURCE: VINTAGE PARTS INC.) This part replaces 93500-06018-02.

93500-06018-0B

Unavailable

32

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

32

NUT, HEX. (6MM)

94001-06200-0S

$1.49

32

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49
