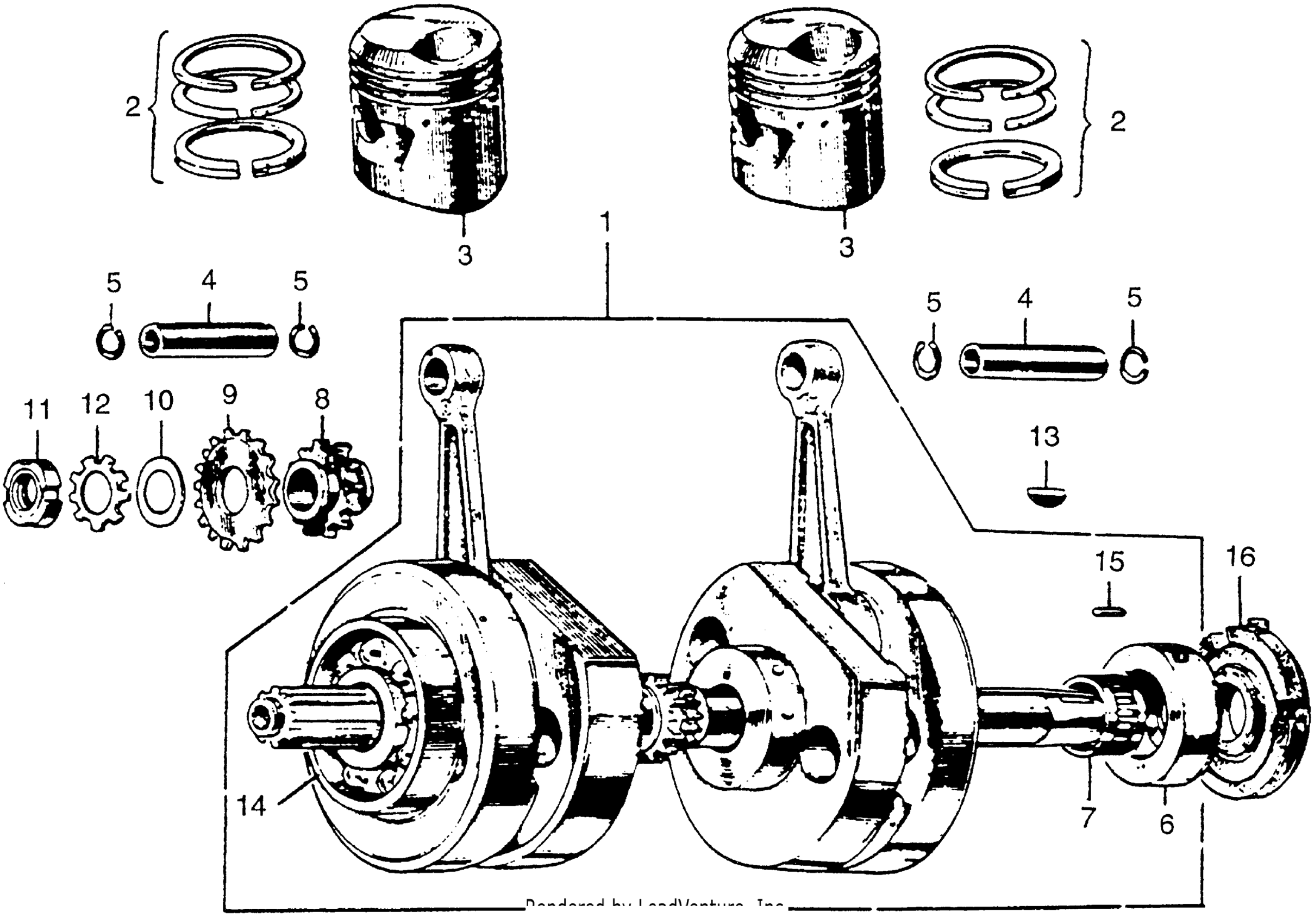

Honda CL72A MOTORCYCLE, JPN, VIN# CL72-100001 CRANKSHAFT + PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY. (NOT AVAILABLE) This part replaces 13000-273-000.

13000-273-010

Unavailable

1

CRANKSHAFT ASSY. (NOT AVAILABLE)

13000-273-010

Unavailable

2

RING SET, PISTON (STD)

13010-268-000

Unavailable

2

RING SET (OS) (0.25) | (Optional). This part replaces 13020-268-000.

13021-504-305

Unavailable

2

RING SET (OS) (0.50) | (Optional). This part replaces 13030-268-000.

13031-504-305

Unavailable

2

RING SET (OS) (0.75) | (Optional). This part replaces 13040-268-000.

13041-504-305

Unavailable

2

RING SET (1.00) | (Optional). This part replaces 13050-268-000.

13051-504-305

Unavailable

3

PISTON (STD) | Use from Engine SN 0210002 to 0317995

13101-268-010

$177.54

3

PISTON (STD) | Use from Engine SN 1100001 to 1106906

13101-268-010

$177.54

3

PISTON (STD) | (Optional). Use from Engine SN 1000001

13101-268-030

Unavailable

3

PISTON (STD) | (Optional). Use from Engine SN 1106907 to 1109459

13101-268-030

Unavailable

3

PISTON (STD) | (Optional). Use from Engine SN 4000001 to 4003437

13101-268-030

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional). Use from Engine SN 0210002 to 0317995

13102-268-010

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional). Use from Engine SN 1000001

13102-268-030

Unavailable

3

PISTON (OS 0.25) (NOT AVAILABLE) | (Optional). Use from Engine SN 4000001 to 4003437

13102-268-030

Unavailable

3

PISTON (OS 0.50) (NOT AVAILABLE) | (Optional). Use from Engine SN 0210002 to 0317995

13103-268-010

Unavailable

3

PISTON (OS 0.50) | (Optional). Use from Engine SN 1000001

13103-268-030

Unavailable

3

PISTON (OS 0.50) | (Optional). Use from Engine SN 1106907 to 1109459

13103-268-030

Unavailable

3

PISTON (OS 0.50) | (Optional). Use from Engine SN 4000001 to 4003437

13103-268-030

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional). Use from Engine SN 0210002 to 0317995

13104-268-010

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional). Use from Engine SN 1000001

13104-268-030

Unavailable

3

PISTON (0.75) (NOT AVAILABLE) | (Optional). Use from Engine SN 4000001 to 4003437

13104-268-030

Unavailable

3

PISTON (1.00) | (Optional). Use from Engine SN 0210002 to 0317995

13105-268-010

Unavailable

3

PISTON (1.00) | (Optional). Use from Engine SN 1100001 to 1106906

13105-268-010

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional). Use from Engine SN 1000001

13105-268-030

Unavailable

3

PISTON (1.00) (NOT AVAILABLE) | (Optional). Use from Engine SN 4000001 to 4003437

13105-268-030

Unavailable

4

PIN, PISTON

13111-MA7-000

Unavailable

4

PIN, PISTON This part replaces 13111-250-000.

13111-MA7-000

Unavailable

4

PIN, PISTON (OS) (NOT AVAILABLE)

13112-250-305

Unavailable

5

CLIP, PISTON PIN (15MM) This part replaces 13115-250-010.

94601-15000

$1.49

5

CLIP, PISTON PIN (15MM) This part replaces 90551-883-000.

94601-15000

$1.49

5

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

6

RACE, BEARING (OUTER) This part replaces 13411-268-010.

13411-268-020

Unavailable

6

RACE, BEARING (OUTER)

13411-268-020

Unavailable

7

RETAINER, ROLLER

13481-268-010

Unavailable

8

SPROCKET, PRIMARY DRIVE This part replaces 13611-259-010.

13611-259-020

Unavailable

8

SPROCKET, PRIMARY DRIVE

13611-259-020

Unavailable

9

SPROCKET, OIL FILTER DRIVE (NOT AVAILABLE)

13621-259-010

Unavailable

10

SPRING, FILTER DRIVE SPROCKET (NOT AVAILABLE)

13692-259-000

Unavailable

11

NUT, LOCK (20MM) (NOT AVAILABLE)

90231-259-010

Unavailable

12

WASHER, LOCK (20MM) (NOT AVAILABLE)

90431-259-010

Unavailable

13

KEY, WOODRUFF

90741-253-000

Unavailable

14

BEARING, BALL (6306) This part replaces 91001-259-020.

91001-286-003

Unavailable

14

BEARING, BALL (6306)

91001-286-003

Unavailable

15

ROLLER (4X10) This part replaces 91101-268-000.

96220-40100

$1.49

15

ROLLER (4X10) This part replaces 91103-222-000.

96220-40100

$1.49

15

ROLLER (4X10)

96220-40100

$1.49

16

OIL SEAL, LOCK (20X65X6.5) (NOT AVAILABLE)

91201-273-000

Unavailable
