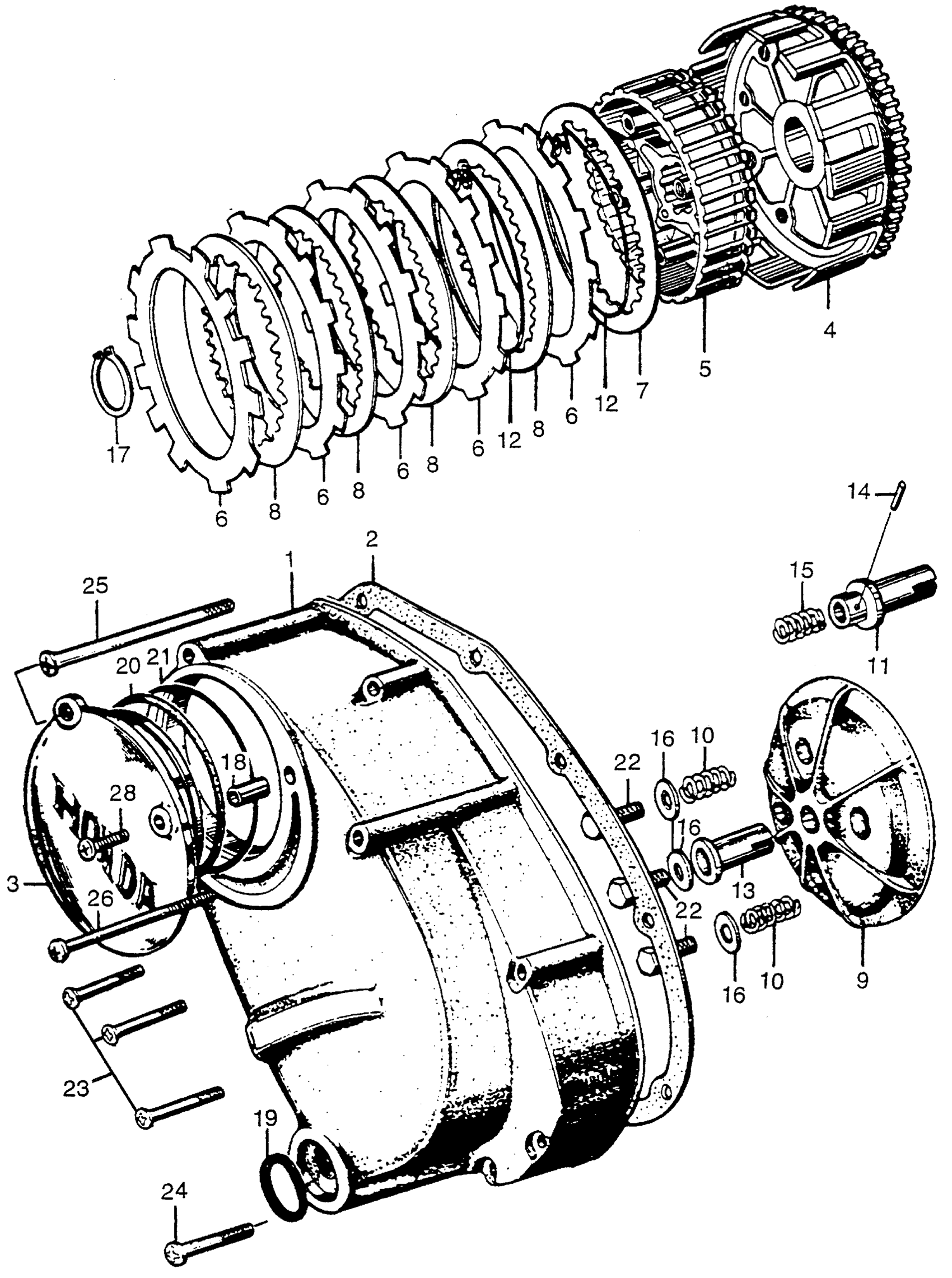

Honda CL72A MOTORCYCLE, JPN, VIN# CL72-100001 CLUTCH + LEFT CRANKCASE COVER Diagram

#

Description
Price

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 0210002 to 0317995

11340-259-020

Unavailable

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 1000001

11340-259-030

Unavailable

1

COVER, L. CRANKCASE (NOT AVAILABLE) | Use from Engine SN 4000001 to 4003437

11340-259-030

Unavailable

2

GASKET, COVER This part replaces 11395-259-000.

11395-259-306

Unavailable

2

GASKET, COVER

11395-259-306

Unavailable

3

COVER, OIL FILTER | Use from Engine SN 0210002 to 0317995

15481-259-010

Unavailable

3

COVER, OIL FILTER | Use from Engine SN 1100001 to 1105084

15481-259-010

Unavailable

3

COVER, OIL FILTER (NOT AVAILABLE) | Use from Engine SN 1000001

15481-259-020

Unavailable

3

COVER, OIL FILTER (NOT AVAILABLE) | Use from Engine SN 4000001 to 4003437

15481-259-020

Unavailable

4

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 0210002 to 0317995

22100-259-000

Unavailable

4

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 1100001 to 1109459

22100-259-000

Unavailable

4

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 4000001 to 4003437

22100-259-000

Unavailable

4

CLUTCH (OUTER) (NOT AVAILABLE) | Use from Engine SN 1005979

22100-259-010

Unavailable

5

CLUTCH, CENTER (NOT AVAILABLE) | Use from Engine SN 0210002 to 0317995

22121-268-020

Unavailable

5

CLUTCH, CENTER (NOT AVAILABLE) | Use from Engine SN 1100001 to 1109459

22121-268-020

Unavailable

5

CLUTCH, CENTER (NOT AVAILABLE) | Use from Engine SN 4000001 to 4003437

22121-268-020

Unavailable

5

CLUTCH, CENTER (NOT AVAILABLE) This part replaces 22121-268-030.

22121-268-040

Unavailable

5

CLUTCH, CENTER (NOT AVAILABLE)

22121-268-040

Unavailable

6

DISK, CLUTCH FRICTION | Use from Engine SN 0210002 to 0317995

22201-MK2-000

$25.24

6

DISK, CLUTCH FRICTION | Use from Engine SN 1000001 to 1007610

22201-MK2-000

$25.24

6

DISK, CLUTCH FRICTION | Use from Engine SN 1100001 to 1109459

22201-MK2-000

$25.24

6

DISK, CLUTCH FRICTION | Use from Engine SN 4000001 to 4003437

22201-MK2-000

$25.24

6

DISK, CLUTCH FRICTION | Use from Engine SN 0210002 to 0317995 This part replaces 22201-268-010.

22201-MK2-000

$25.24

6

DISK, CLUTCH FRICTION | Use from Engine SN 1000001 to 1007610 This part replaces 22201-268-010.

22201-MK2-000

$25.24

6

DISK, CLUTCH FRICTION | Use from Engine SN 1100001 to 1109459 This part replaces 22201-268-010.

22201-MK2-000

$25.24

6

DISK, CLUTCH FRICTION | Use from Engine SN 4000001 to 4003437 This part replaces 22201-268-010.

22201-MK2-000

$25.24

6

DISK, CLUTCH FRICTION | Use from Engine SN 1007611

22201-268-020

Unavailable

7

PLATE, CLUTCH | Use from Engine SN 1007611 This part replaces 22311-259-010.

22321-GHB-811

$12.02

7

PLATE, CLUTCH | Use from Engine SN 1007611 This part replaces 22311-259-315.

22321-GHB-811

$12.02

7

PLATE B, CLUTCH | Use from Engine SN 0210002 to 0317995 This part replaces 22311-266-000.

22321-329-000

$16.92

7

PLATE B, CLUTCH | Use from Engine SN 1000001 to 1007610 This part replaces 22311-266-000.

22321-329-000

$16.92

7

PLATE B, CLUTCH | Use from Engine SN 1100001 to 1109459 This part replaces 22311-266-000.

22321-329-000

$16.92

7

PLATE B, CLUTCH | Use from Engine SN 4000001 to 4003437 This part replaces 22311-266-000.

22321-329-000

$16.92

7

PLATE A, CLUTCH (NOT AVAILABLE) This part replaces 22311-268-000.

22311-286-000

Unavailable

7

PLATE, CLUTCH | Use from Engine SN 1007611 This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

7

PLATE B, CLUTCH | Use from Engine SN 0210002 to 0317995

22321-329-000

$16.92

7

PLATE B, CLUTCH | Use from Engine SN 1000001 to 1007610

22321-329-000

$16.92

7

PLATE B, CLUTCH | Use from Engine SN 1100001 to 1109459

22321-329-000

$16.92

7

PLATE B, CLUTCH | Use from Engine SN 4000001 to 4003437

22321-329-000

$16.92

8

PLATE, CLUTCH | Use from Engine SN 0210002 to 0317995 This part replaces 22311-259-010.

22321-GHB-811

$12.02

8

PLATE, CLUTCH | Use from Engine SN 1000001 to 1007610 This part replaces 22311-259-010.

22321-GHB-811

$12.02

8

PLATE, CLUTCH | Use from Engine SN 1100001 to 1109459 This part replaces 22311-259-010.

22321-GHB-811

$12.02

8

PLATE, CLUTCH | Use from Engine SN 4000001 to 4003437 This part replaces 22311-259-010.

22321-GHB-811

$12.02

8

PLATE, CLUTCH | Use from Engine SN 0210002 to 0317995 This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

8

PLATE, CLUTCH | Use from Engine SN 1000001 to 1007610 This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

8

PLATE, CLUTCH | Use from Engine SN 1100001 to 1109459 This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

8

PLATE, CLUTCH | Use from Engine SN 4000001 to 4003437 This part replaces 22321-MT3-000.

22321-GHB-811

$12.02

8

PLATE, CLUTCH | Use from Engine SN 0210002 to 0317995 This part replaces 22321-259-000.

22321-GHB-811

$12.02

8

PLATE, CLUTCH | Use from Engine SN 1000001 to 1007610 This part replaces 22321-259-000.

22321-GHB-811

$12.02

8

PLATE, CLUTCH | Use from Engine SN 1100001 to 1109459 This part replaces 22321-259-000.

22321-GHB-811

$12.02

8

PLATE, CLUTCH | Use from Engine SN 4000001 to 4003437 This part replaces 22321-259-000.

22321-GHB-811

$12.02

8

PLATE B, CLUTCH | Use from Engine SN 1007611 This part replaces 22321-266-000.

22321-329-000

$16.92

8

PLATE B, CLUTCH | Use from Engine SN 1007611

22321-329-000

$16.92

9

PLATE, CLUTCH PRESSURE (NOT AVAILABLE)

22350-259-000

Unavailable

10

SPRING, CLUTCH This part replaces 22401-275-000.

22401-323-003

$7.70

10

SPRING, CLUTCH This part replaces 22401-323-000.

22401-323-003

$7.70

10

SPRING, CLUTCH

22401-323-003

$7.70

10

SPRING, CLUTCH

22401-323-003

$7.70

11

PIECE, CLUTCH LIFTER JOINT (NOT AVAILABLE)

22838-259-020

Unavailable

12

RING, CLUTCH PLATE STOPPER (NOT AVAILABLE) | Use from Engine SN 0210002 to 0317995

22431-259-000

Unavailable

12

RING, CLUTCH PLATE STOPPER (NOT AVAILABLE) | Use from Engine SN 1007611

22431-259-000

Unavailable

12

RING, CLUTCH PLATE STOPPER (NOT AVAILABLE) | Use from Engine SN 1100001 to 1109459

22431-259-000

Unavailable

12

RING, CLUTCH PLATE STOPPER (NOT AVAILABLE) | Use from Engine SN 4000001 to 4003437

22431-259-000

Unavailable

13

METAL, OIL GUIDE (NOT AVAILABLE)

25571-259-010

Unavailable

14

PIN, OIL GUIDE METAL (NOT AVAILABLE)

25572-259-000

Unavailable

15

SPRING, OIL GUIDE METAL (NOT AVAILABLE)

25573-259-000

Unavailable

16

WASHER (6X19)

90481-259-000

Unavailable

17

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

18

PIN A, DOWEL (8X12) This part replaces 90701-001-000.

94301-08120

$2.19

18

PIN A, DOWEL (8X12)

94301-08120

$2.19

19

OIL SEAL (14X25X7)

91202-250-000

Unavailable

20

O-RING (57X3) (NOT AVAILABLE) | Use from Engine SN 0210002 to 0317995

91301-259-000

Unavailable

20

O-RING (74.5X3) (NOT AVAILABLE) | Use from Engine SN 1000001

91309-700-010

Unavailable

20

O-RING (74.5X3) (NOT AVAILABLE) | Use from Engine SN 4000001 to 4003437

91309-700-010

Unavailable

21

O-RING (79.4X3.1) This part replaces 91302-259-000.

91303-PH8-010

Unavailable

21

O-RING (79.4X3.1)

91303-PH8-010

Unavailable

22

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

22

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

23

SCREW, PAN (6X35) (SOURCE: VINTAGE PARTS INC.)

93500-06035-0B

Unavailable

23

SCREW, PAN (6X35) (SOURCE: VINTAGE PARTS INC.) This part replaces 93500-06035-02.

93500-06035-0B

Unavailable

24

SCREW, PAN (6X45) This part replaces 93500-06045.

93500-06045-0A

$1.49

24

SCREW, PAN (6X45)

93500-06045-0A

$1.49

25

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

25

SCREW, PAN (6X60)

93500-06060-0A

$1.49

26

SCREW, PAN (6X75) This part replaces 93500-06075.

93500-06075-0A

$1.73

26

SCREW, PAN (6X75)

93500-06075-0A

$1.73

27

SCREW, OVAL (6X16)

93700-06016-0B

$1.49
