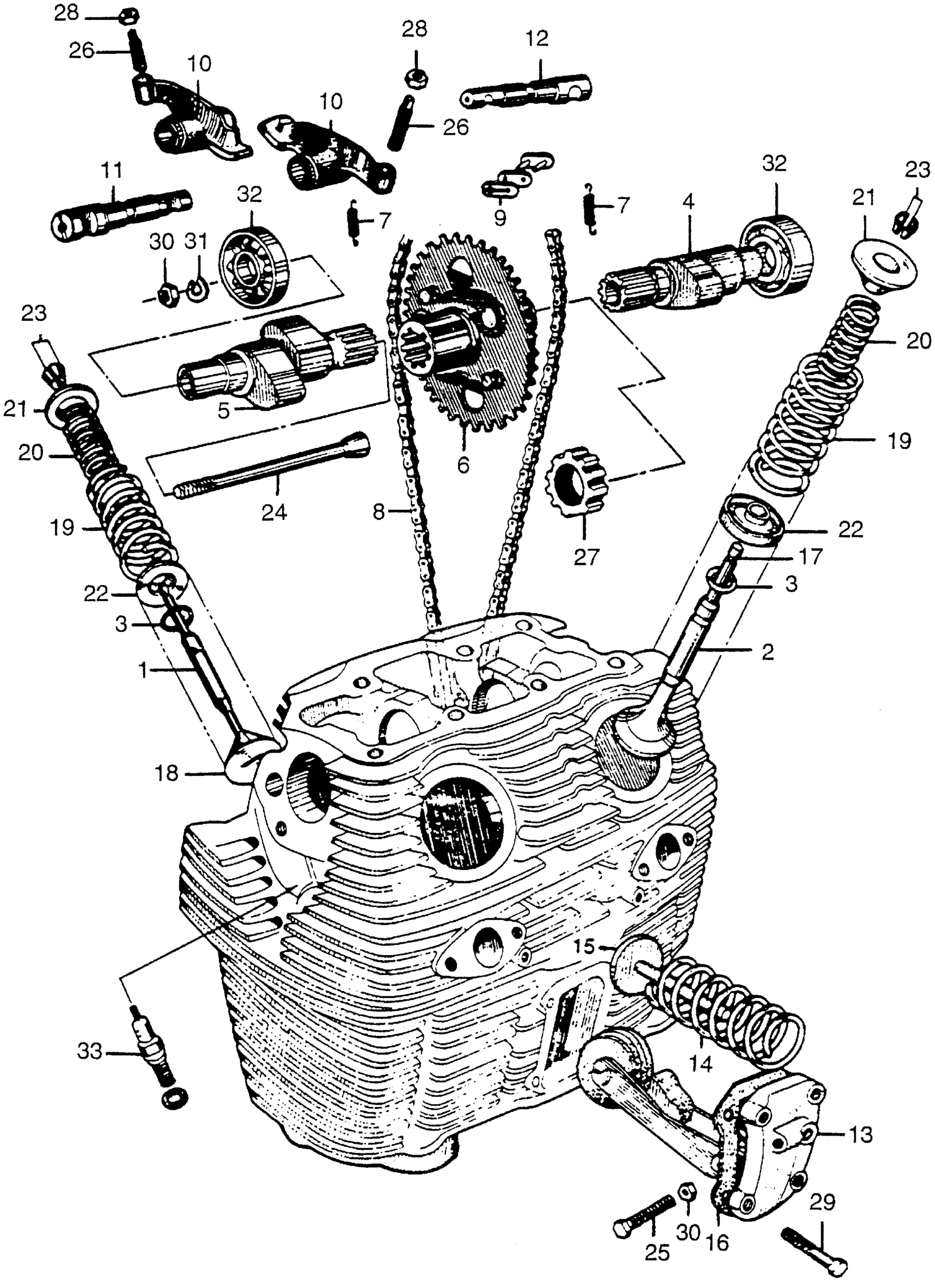

Honda CL72A MOTORCYCLE, JPN, VIN# CL72-100001 CAMSHAFT + VALVE + CAM CHAIN Diagram

#

Description
Price

1

GUIDE, VALVE (NOT AVAILABLE)

12021-268-000

Unavailable

2

GUIDE, EX. VALVE (NOT AVAILABLE)

12023-259-000

Unavailable

3

CLIP, VALVE GUIDE

12211-250-310

$4.39

4

CAMSHAFT, R. (NOT AVAILABLE) This part replaces 14111-268-010.

14111-268-030

Unavailable

4

CAMSHAFT, R. (NOT AVAILABLE) This part replaces 14111-268-020.

14111-268-030

Unavailable

4

CAMSHAFT, R. (NOT AVAILABLE)

14111-268-030

Unavailable

5

CAMSHAFT, L. This part replaces 14121-273-000.

14121-273-010

Unavailable

5

CAMSHAFT, L.

14121-273-010

Unavailable

6

SPROCKET, CAM (NOT AVAILABLE)

14320-268-030

Unavailable

7

SPRING, GOVERNOR (NOT AVAILABLE)

14329-268-320

Unavailable

8

CHAIN, CAM (DK219, 94L) (NOT AVAILABLE)

14401-259-000

Unavailable

8

CHAIN, CAM (DK219, 94L) (NOT AVAILABLE) This part replaces 14401-259-003.

14401-259-000

Unavailable

9

JOINT, CAM CHAIN (DK219)

14411-259-000

Unavailable

10

ARM, VALVE ROCKER

14431-268-305

Unavailable

11

PIN, IN. ROCKER ARM (NOT AVAILABLE)

14451-259-010

$105.15

12

PIN, EX. ROCKER ARM (NOT AVAILABLE)

14461-259-010

$105.15

13

TENSION, CAM CHAIN (NOT AVAILABLE)

14500-268-010

Unavailable

14

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-258-010

Unavailable

15

BAR, CAM CHAIN TENSIONER (NOT AVAILABLE)

14551-259-000

Unavailable

16

GASKET This part replaces 14591-258-000.

14591-258-306

Unavailable

17

VALVE, EX.

14721-268-000

Unavailable

18

VALVE, IN. (NOT AVAILABLE)

14711-268-010

Unavailable

19

SPRING, VALVE (OUTER) (NOT AVAILABLE)

14751-265-010

$19.25

20

SPRING, VALVE (INNER) (NOT AVAILABLE)

14761-265-010

$14.18

21

RETAINER, VALVE SPRING (NOT AVAILABLE)

14771-268-000

Unavailable

22

SEAT, VALVE SPRING (NOT AVAILABLE)

14775-259-000

Unavailable

23

COTTER, VALVE

14781-253-010

Unavailable

24

BOLT, CAMSHAFT LOCK (NOT AVAILABLE)

90008-259-000

Unavailable

25

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE)

90009-259-000

Unavailable

26

SCREW, TAPPET ADJ. (NOT AVAILABLE)

90012-258-000

Unavailable

27

NUT, CAMSHAFT LOCKING

90205-259-010

Unavailable

28

NUT, TAPPET ADJ.

90206-250-000

$2.94

29

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

29

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

30

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

30

NUT, HEX. (6MM)

94001-06200-0S

$1.49

30

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

31

WASHER, SPRING (6MM)

94111-06000

$1.49

32

BEARING, RADIAL BALL (6004) This part replaces 96100-60040.

96100-60040-00

$15.58

32

BEARING, RADIAL BALL (6004)

96100-60040-00

$15.58

33

SPARK PLUG (D8HA) (NGK) This part replaces 98066-58714.

98066-58717

$2.44

33

SPARK PLUG (D8HA) (NGK)

98066-58717

$2.44
