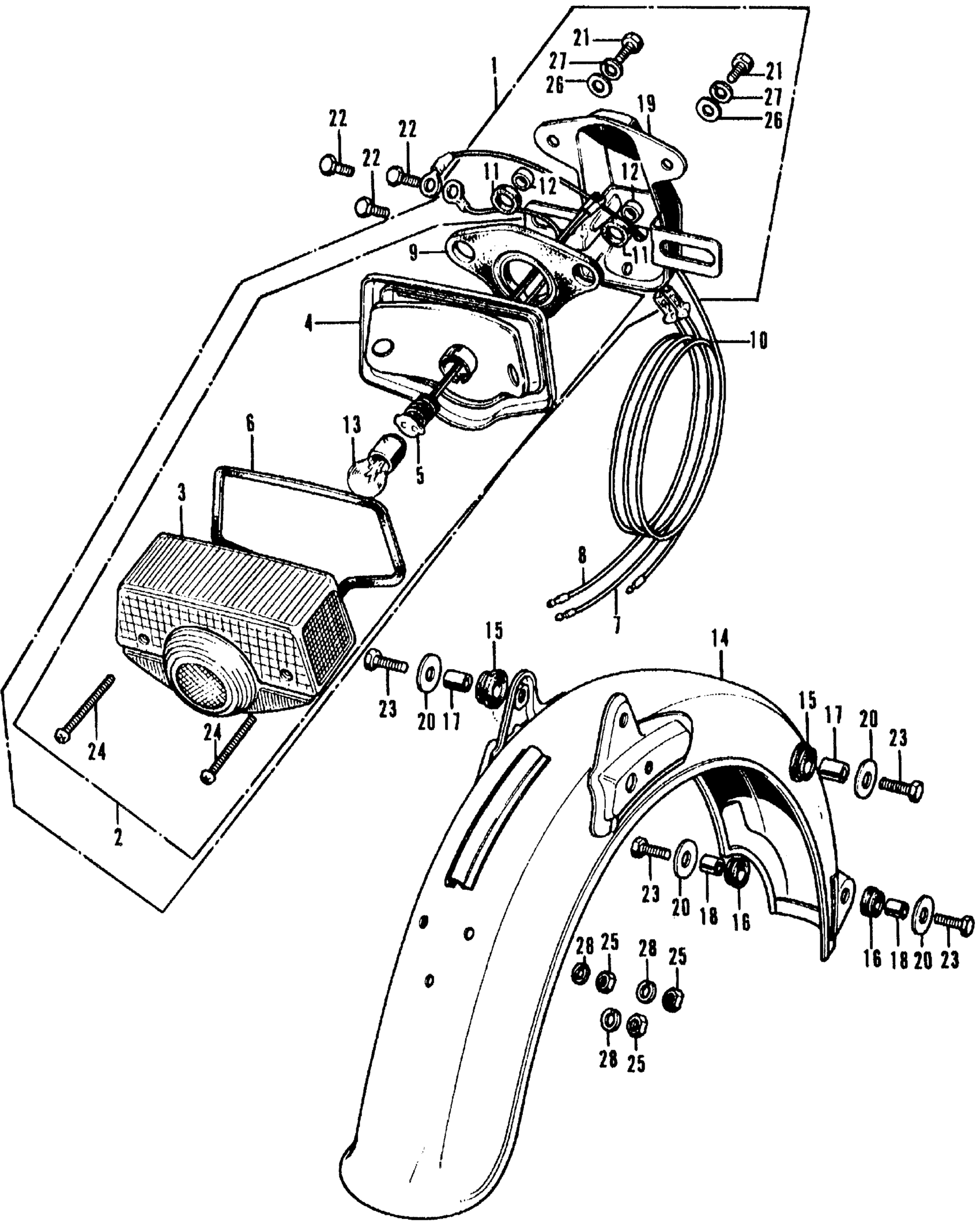

Honda CL70K2A MOTORCYCLE, JPN, VIN# CL70-300001 TO CL70-313700 TAILLIGHT + REAR FENDER K0-K2 Diagram

#

Description
Price

1

TAILLIGHT ASSY. (NOT AVAILABLE)

33700-056-671

Unavailable

2

TAILLIGHT, UNIT (NOT AVAILABLE)

33701-077-671

Unavailable

3

LENS, TAILLIGHT

33702-077-671

$36.90

4

BASE, TAILLIGHT

33703-077-671

Unavailable

5

WIRE, TAILLIGHT

33708-077-671

Unavailable

6

GASKET, TAILLIGHT

33709-077-671

$3.41

7

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

33711-028-671

Unavailable

8

SUB-WIRE, TAILLIGHT (N/A: USE TAILLIGHT UNIT)

33713-028-670

Unavailable

9

GASKET, TAILLIGHT BASE (NOT AVAILABLE)

33718-077-671

Unavailable

10

WIRE, RR. FENDER GROUND (NOT AVAILABLE)

33720-089-670

Unavailable

11

GASKET B, TAILLIGHT BASE (NOT AVAILABLE)

33719-107-671

Unavailable

12

COLLAR, NUMBER PLATE SETTING (NOT AVAILABLE)

84706-107-671

Unavailable

13

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-041-671.

34906-202-670

$11.50

13

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY)

34906-202-670

$11.50

13

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-205-222.

34906-202-670

$11.50

13

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34911-001-810.

34906-202-670

$11.50

14

FENDER, RR. *MRCR2* (CHROME PLATING)

80100-089-670XW

Unavailable

15

RUBBER A, RR. FENDER

80105-061-000

$4.01

16

RUBBER B, RR. FENDER (NOT AVAILABLE)

80106-061-010

Unavailable

17

COLLAR A, RR. FENDER

80108-061-010

$4.12

18

COLLAR B, RR. FENDER

80109-061-010

$3.15

19

BRACKET, NUMBER PLATE (NOT AVAILABLE) This part replaces 84701-028-671.

84701-028-671Z

Unavailable

19

BRACKET, NUMBER PLATE (NOT AVAILABLE)

84701-028-671Z

Unavailable

19

BRACKET, NUMBER PLATE (NOT AVAILABLE) This part replaces 84701-056-670B.

84701-028-671Z

Unavailable

19

BRACKET, NUMBER PLATE (NOT AVAILABLE) This part replaces 84701-056-670Z.

84701-028-671Z

Unavailable

19

BRACKET, NUMBER PLATE (NOT AVAILABLE) This part replaces 84701-056-671B.

84701-028-671Z

Unavailable

20

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

20

WASHER, PLAIN (6MM)

94103-06800

$1.49

21

BOLT, HEX. (5X16) This part replaces 92000-05016-0B.

92101-05016-0B

Unavailable

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

23

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

23

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

23

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

24

SCREW, PAN (4X50)

93500-04050-0B

$1.49

25

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

25

NUT, HEX. (6MM)

94002-06000-0S

$1.49

26

WASHER, PLAIN (5MM)

94101-05000

$1.49

27

WASHER, SPRING (5MM)

94111-05000

$1.49

28

WASHER, SPRING (6MM)

94111-06000

$1.49
