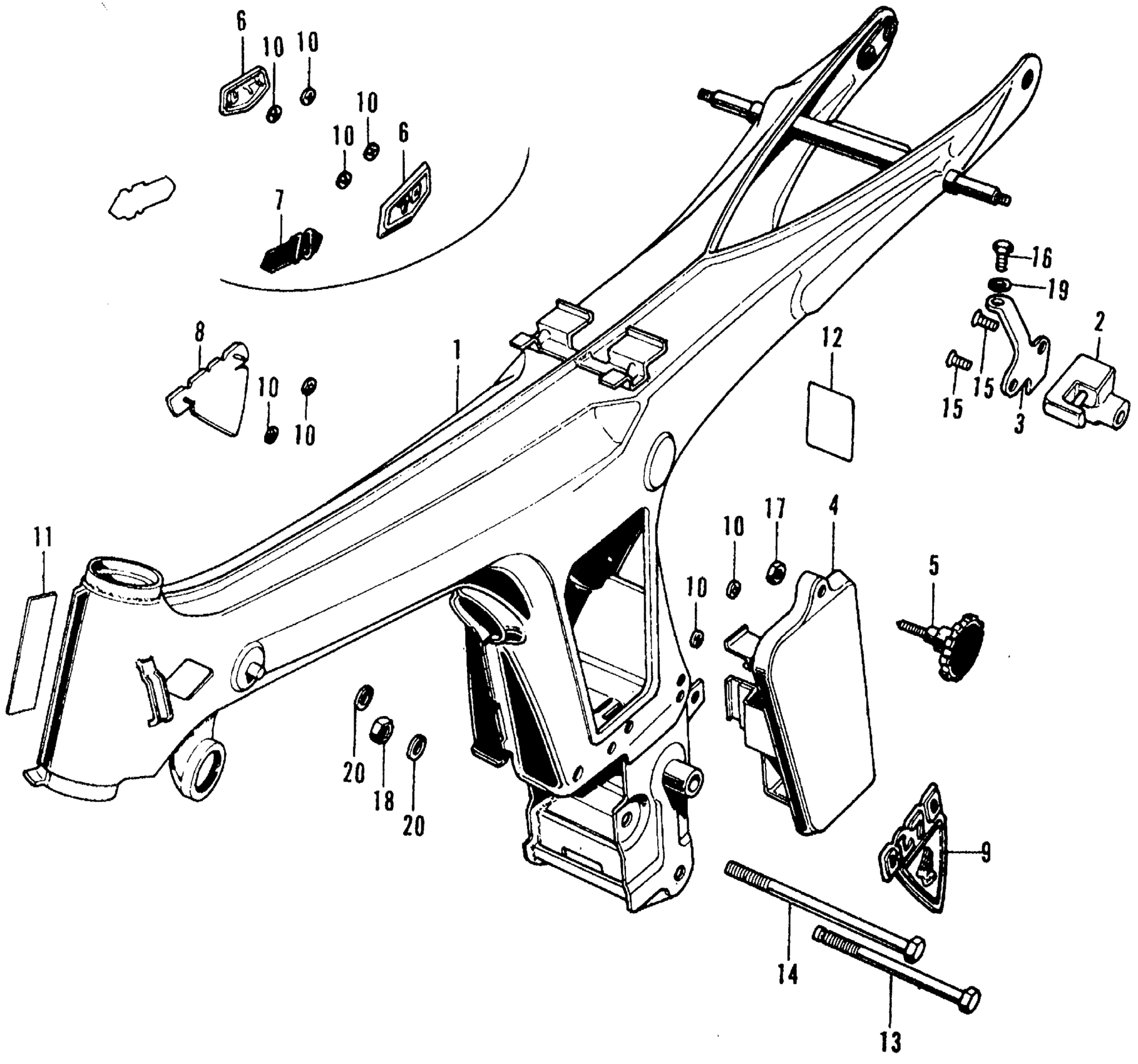

Honda CL70K2A MOTORCYCLE, JPN, VIN# CL70-300001 TO CL70-313700 FRAME Diagram

FRAME

50100-111-770Z

Unavailable

COVER, BATTERY (NOT AVAILABLE)

83600-111-770Z

Unavailable

LATCH, BATTERY COVER (NOT AVAILABLE)

83650-051-000

Unavailable

EMBLEM, SIDE COVER (NOT AVAILABLE)

87128-111-000

Unavailable

BOLT, RR. ENGINE (LOWER)

90116-001-010

$8.83

BOLT, HEX. ENGINE HANGER (8X151) (NOT AVAILABLE)

90130-051-000

Unavailable

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

NUT, HEX. (8MM)

94030-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
