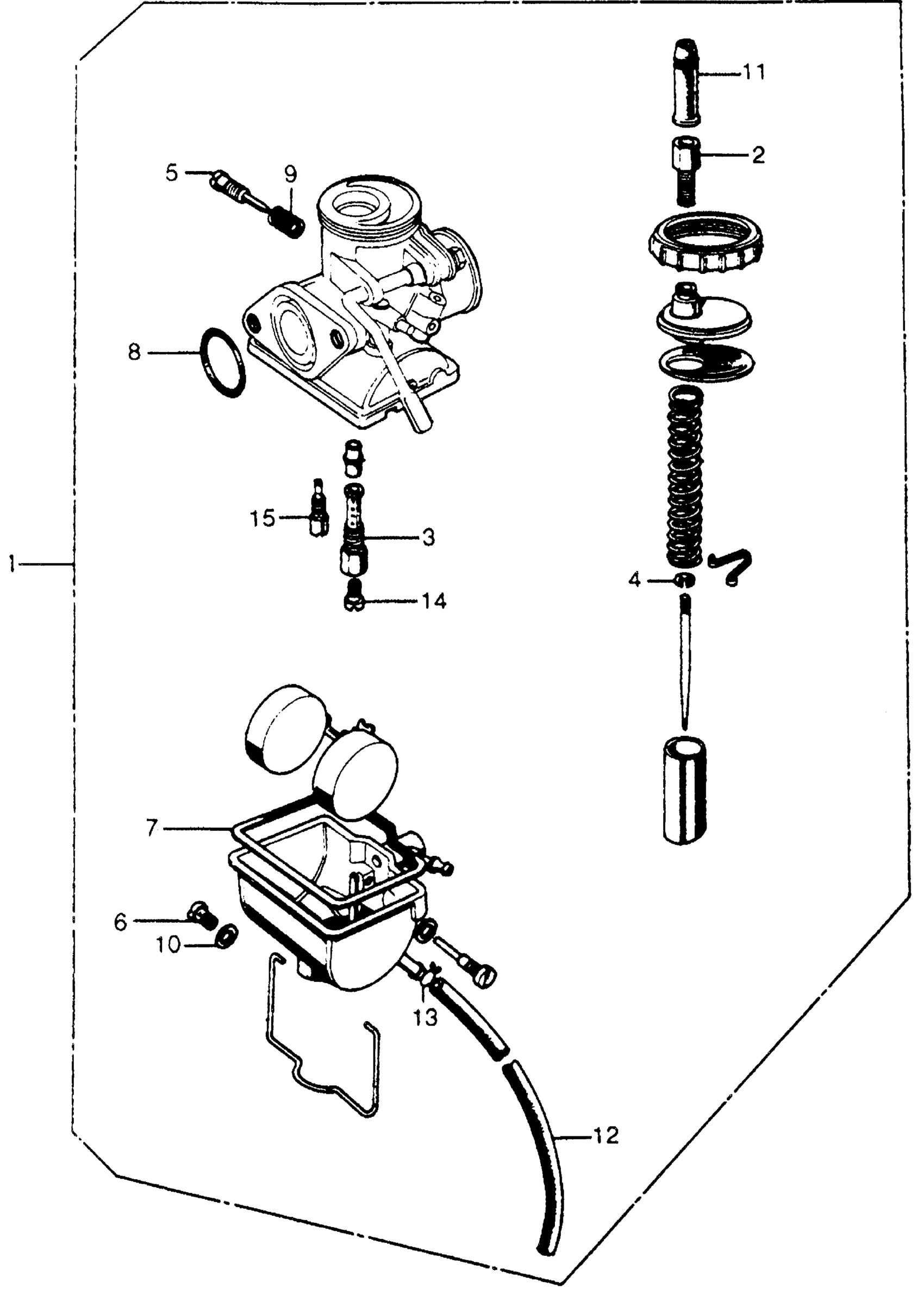

Honda CL70K2A MOTORCYCLE, JPN, VIN# CL70-300001 TO CL70-313700 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY. (NOT AVAILABLE)

16100-111-014

Unavailable

2

ADJUSTER, CABLE (NOT AVAILABLE)

16118-217-004

Unavailable

3

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-089-004

Unavailable

4

CLIP, BAR

16157-259-004

$5.36

6

SCREW, DRAIN (NOT AVAILABLE)

16164-202-004

Unavailable

7

WASHER, FLOAT CHAMBER

16172-030-004

Unavailable

8

O-RING (23X2.4)

16176-001-004

Unavailable

9

SPRING, AIR SCREW (NOT AVAILABLE)

16181-202-004

$3.70

10

WASHER, FIBER

16189-056-004

Unavailable

11

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

11

CAP, CABLE SEALING

16118-166-004

$8.08

12

BULK HOSE, FUEL (3.5X3000) (3.5X300)

95001-35003-60M

$20.85

13

CLIP, TUBE (B7)

95002-02070

$1.80

14

JET, MAIN (#70) (NOT AVAILABLE)

99114-056-0701

Unavailable

14

JET, MAIN (#72) (NOT AVAILABLE) This part replaces 99114-056-0721.

99114-246-0720

Unavailable

14

JET, MAIN (#75) This part replaces 99114-056-0751.

99114-246-0750

Unavailable

14

JET, MAIN (#78) This part replaces 99114-056-0781.

99114-246-0780

Unavailable

14

JET, MAIN (#72) (NOT AVAILABLE)

99114-246-0720

Unavailable

14

JET, MAIN (#75)

99114-246-0750

Unavailable

14

JET, MAIN (#78)

99114-246-0780

Unavailable

14

JET, MAIN (#80) (NOT AVAILABLE) This part replaces 99114-056-0801.

99114-246-0800

Unavailable

14

JET, MAIN (#80) (NOT AVAILABLE)

99114-246-0800

Unavailable

15

JET, SLOW (#38) | Use from Engine SN 103412

99124-089-0381

Unavailable

15

JET, SLOW (#40) (NOT AVAILABLE) | Use from Engine SN 103412 This part replaces 99124-089-0401.

99124-303-0400

Unavailable

15

JET, SLOW (#42) | Use from Engine SN 103412 This part replaces 99124-089-0421.

99124-303-0420

Unavailable

15

JET, SLOW (#42) | Use from Engine SN 103412

99124-303-0420

Unavailable
