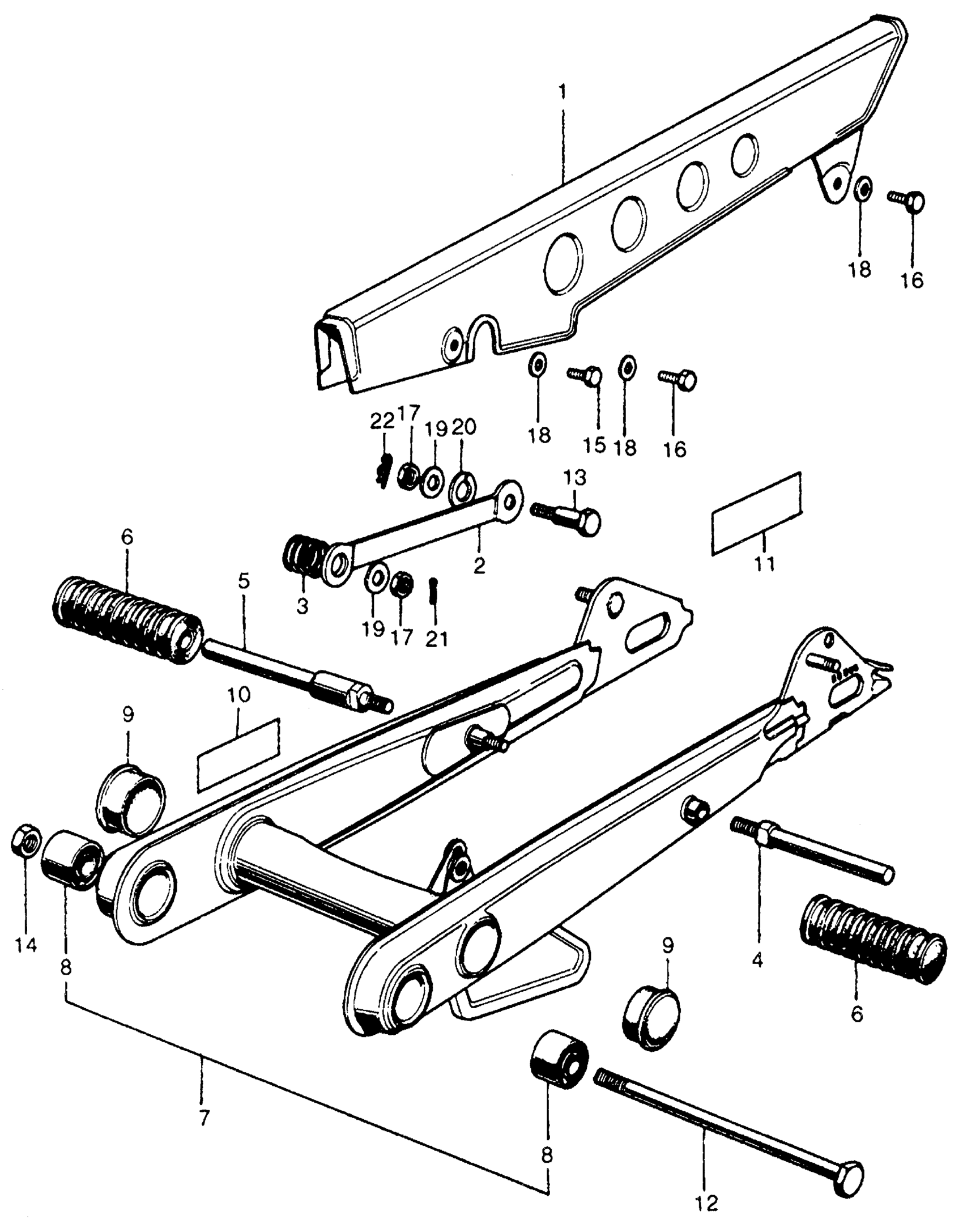

Honda CL70K1A MOTORCYCLE, JPN, VIN# CL70-200001 TO CL70-214061 SWINGARM + CHAIN CASE Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *MRCR2* (CHROME PLATING)

40525-061-000XW

Unavailable

2

ARM, TORQUE LINK (NOT AVAILABLE)

43431-001-020

Unavailable

3

SPRING, STOPPER ARM

43434-250-000

$2.00

7

SWINGARM, RR.

52100-051-720Z

Unavailable

7

SWINGARM, RR. *PB3C* (CANDY SAPPHIRE BLUE) (NOT AVAILABLE)

52100-051-720CN

Unavailable

8

BUSH, SWINGARM PIVOT This part replaces 52108-028-000.

52147-028-300

$17.90

8

BUSH, SWINGARM PIVOT

52147-028-300

$17.90

9

CAP, CROSSMEMBER SIDE

52161-051-000

$2.33

9

CAP, CROSSMEMBER SIDE This part replaces 52161-051-000B.

52161-051-000

$2.33

10

LABEL, MUFFLER CAUTION

87504-028-670

$2.92

12

BOLT, SWINGARM PIVOT (NOT AVAILABLE) This part replaces 90121-035-010.

90121-111-970

Unavailable

12

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-111-970

Unavailable

13

BOLT, RR. BRAKE STOPPER This part replaces 90127-001-010.

90127-400-000

$8.89

13

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

14

NUT, SWINGARM PIVOT (NOT AVAILABLE)

90308-051-000

Unavailable

15

BOLT, HEX. (6X6) This part replaces 92000-06006.

92101-06006-0A

$1.49

15

BOLT, HEX. (6X6) This part replaces 92000-06006-0A.

92101-06006-0A

$1.49

15

BOLT, HEX. (6X6)

92101-06006-0A

$1.49

16

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

16

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

17

NUT, HEX. (8MM)

94001-08000-0S

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

18

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

18

WASHER, PLAIN (6MM)

94101-06800

$1.49

19

WASHER, PLAIN (8MM)

94101-08000

$1.49

20

WASHER, SPRING (8MM)

94111-10000

$1.49

21

PIN, COTTER (2.0X15)

94201-20150

$1.49

22

PIN, LOCK (8MM)

94251-08000

$1.49
