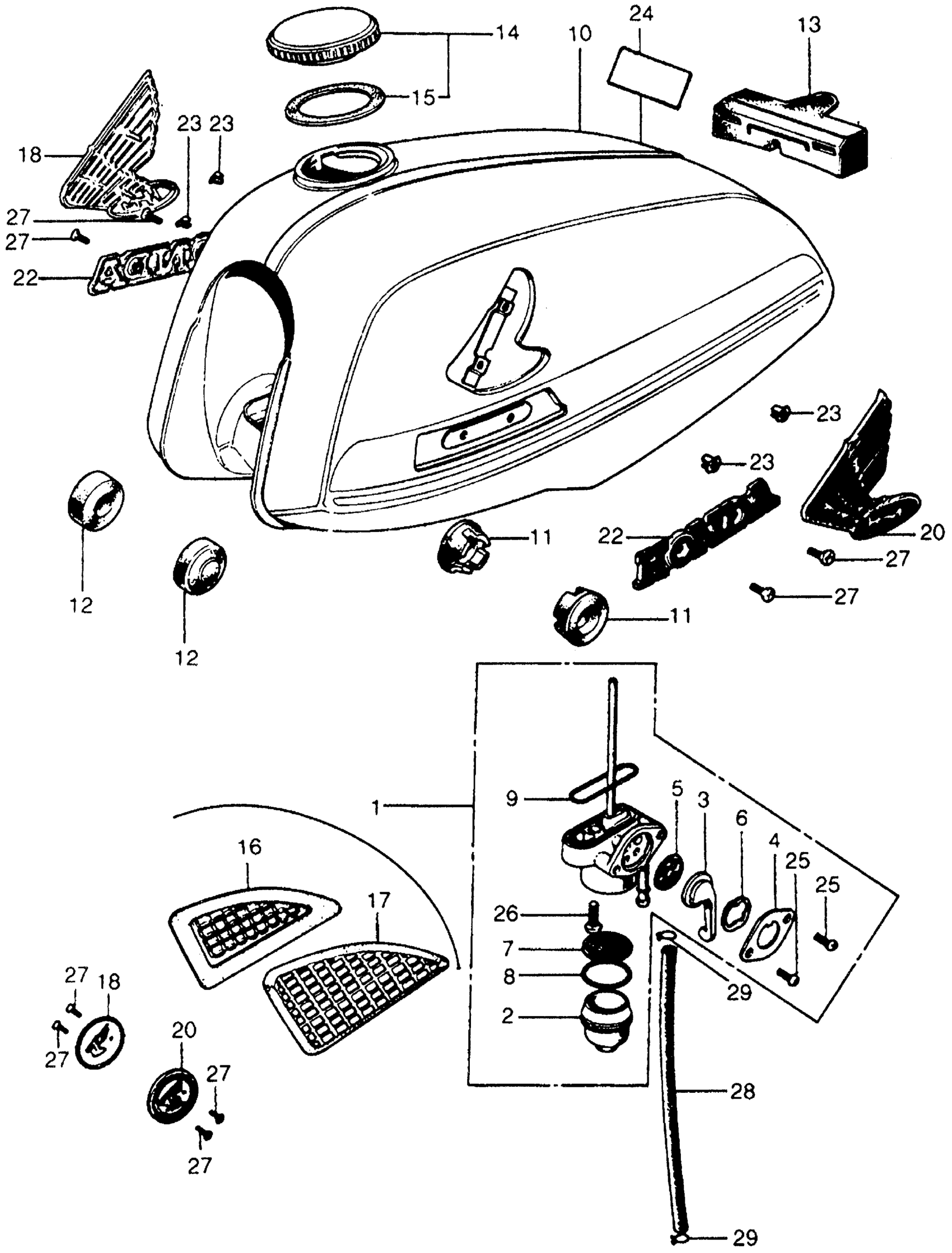

Honda CL70K1A MOTORCYCLE, JPN, VIN# CL70-200001 TO CL70-214061 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. This part replaces 16950-028-010.

16950-070-700

$38.41

1

PETCOCK ASSY. This part replaces 16950-028-015.

16950-070-700

$38.41

1

PETCOCK ASSY.

16950-070-700

$38.41

2

CUP, FUEL STRAINER

16952-028-000

Unavailable

3

LEVER, PETCOCK

16953-028-004

Unavailable

4

PLATE, PETCOCK LEVER SETTING

16954-028-000

Unavailable

5

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$2.93

5

GASKET, VALVE

16957-ZE1-812

$2.93

6

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.06

6

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.06

6

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.06

6

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.06

7

SCREEN, FUEL STRAINER

16957-028-000

$14.91

8

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$20.32

8

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.47

8

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.47

8

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.47

9

GASKET, PETCOCK BODY

16997-273-006

Unavailable

10

TANK, FUEL (A3M/PB1C) (NOT AVAILABLE)

17500-111-670CV

Unavailable

10

TANK, FUEL *A3M* (METALLIC SILVER) (NOT AVAILABLE)

17500-111-670DG

Unavailable

11

SPACER, FUEL TANK

17602-028-000

Unavailable

12

RUBBER, FR. FUEL TANK

17611-051-000

$4.63

13

RUBBER, RR. FUEL TANK

17613-051-010

$9.00

14

CAP, FUEL FILLER This part replaces 17620-292-020.

17620-402-020

Unavailable

14

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

Unavailable

14

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

Unavailable

14

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

Unavailable

14

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

Unavailable

14

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

Unavailable

15

GASKET (39X58X3) This part replaces 17631-259-000.

17631-ZE1-000

Unavailable

15

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

Unavailable

15

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

Unavailable

22

EMBLEM B, FUEL TANK

87123-105-000

$20.37

23

NUT, EMBLEM CLAMP This part replaces 87311-516-000.

87311-634-600

$4.56

23

NUT, EMBLEM CLAMP

87311-634-600

$4.56

25

SCREW, PAN (3X6)

93500-03006-0A

$0.84

26

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.06

26

SCREW, PAN (6X16)

93500-06016-0A

$1.06

28

TUBE (4.5) This part replaces 95001-45000.

95001-45000-40

Unavailable

28

BULK HOSE, FUEL (4.5X3000) (4.5)

95001-45003-60M

$36.73

28

TUBE (4.5) This part replaces 95001-45000-90.

95001-45000-40

Unavailable

28

TUBE (4.5) This part replaces 95001-45085.

95001-45000-40

Unavailable

28

TUBE (4.5) This part replaces 95001-45100.

95001-45000-40

Unavailable

28

TUBE (4.5) This part replaces 95001-45100-90.

95001-45000-40

Unavailable

28

TUBE (4.5) This part replaces 95001-45105.

95001-45000-40

Unavailable

28

TUBE (4.5) This part replaces 95001-45120.

95001-45000-40

Unavailable

28

TUBE (4.5) This part replaces 95001-45130.

95001-45000-40

Unavailable

28

TUBE (4.5) This part replaces 95001-45140.

95001-45000-40

Unavailable

28

TUBE (4.5) This part replaces 95001-45150.

95001-45000-40

Unavailable

28

TUBE (4.5) This part replaces 95001-45180.

95001-45000-40

Unavailable

28

TUBE (4.5) This part replaces 95001-45190.

95001-45000-40

Unavailable

28

TUBE (4.5) This part replaces 95001-45210.

95001-45000-40

Unavailable

28

TUBE (4.5) This part replaces 95001-45475.

95001-45000-40

Unavailable

29

CLIP, TUBE (4.5)

95002-45000

$1.15
