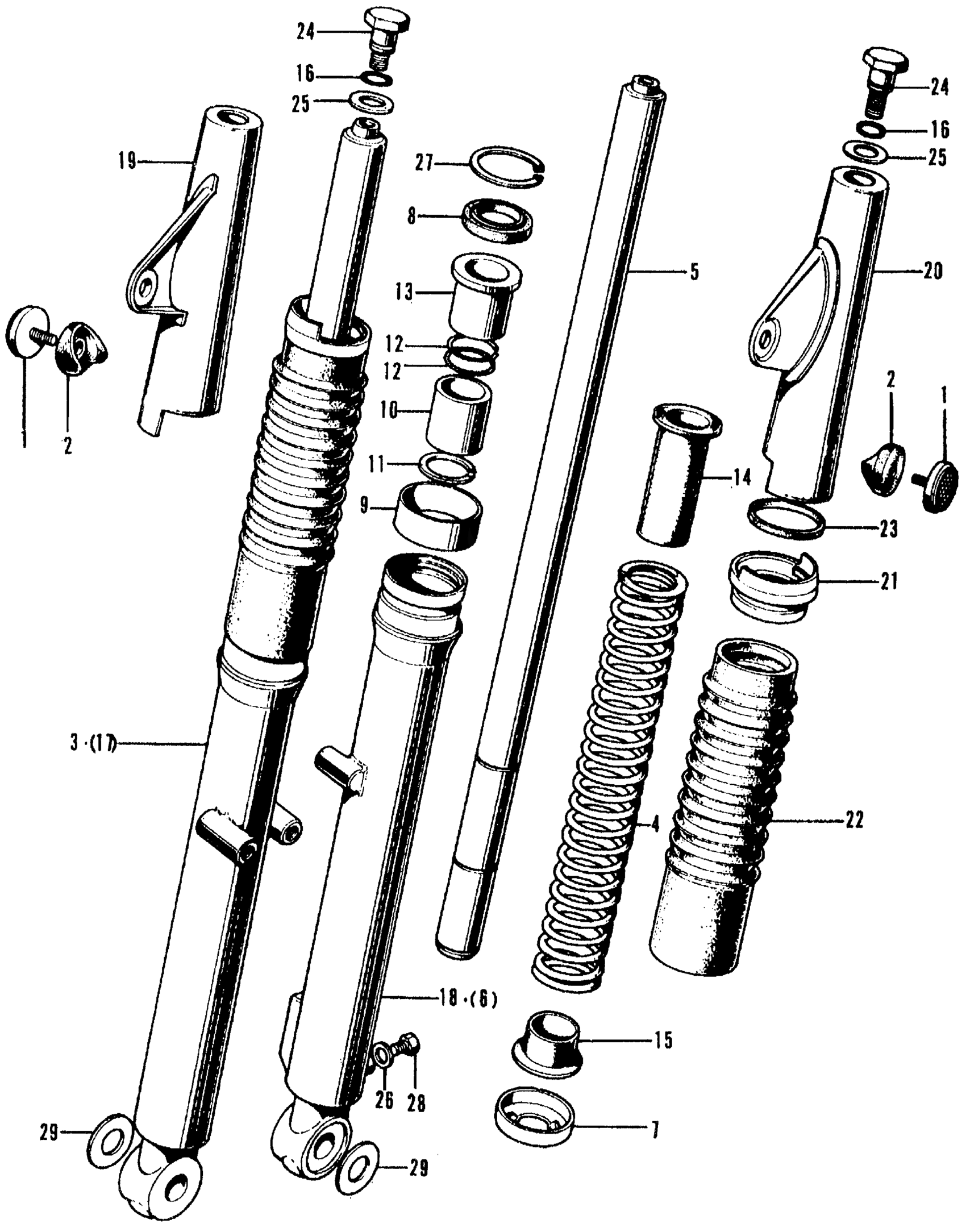

Honda CL70K1A MOTORCYCLE, JPN, VIN# CL70-200001 TO CL70-214061 FRONT FORK Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-045-671.

33741-315-000

$25.26

1

REFLECTOR, FR. REFLEX This part replaces 33741-286-670.

33741-315-000

$25.26

1

REFLECTOR, FR. REFLEX

33741-315-000

$25.26

2

BASE, FR. REFLECTOR (NOT AVAILABLE)

33744-089-670

Unavailable

3

FORK ASSY., R. FR. *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

51400-061-010S

Unavailable

4

SPRING, FR. FORK (NOT AVAILABLE)

51401-061-000

Unavailable

5

PIPE, FR. FORK (NOT AVAILABLE)

51410-061-000

Unavailable

6

CASE, R. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) This part replaces 51420-061-010S.

51420-115-700S

Unavailable

6

CASE, R. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC)

51420-115-700S

Unavailable

7

SEAT, SPRING (LOWER) This part replaces 51424-061-000.

51424-061-505

Unavailable

8

OIL SEAL, FR. FORK

51432-051-000

$13.38

9

RING, CASE (LOWER) (NOT AVAILABLE)

51435-061-000

Unavailable

10

PISTON, FR. FORK

51442-051-010

Unavailable

11

RING B, SNAP (25MM) (NOT AVAILABLE) This part replaces 51444-031-000.

94580-25000

Unavailable

11

RING B, SNAP (25MM) (NOT AVAILABLE) This part replaces 51527-031-000.

94580-25000

Unavailable

12

RING, FR. FORK PISTON STOPPER (NOT AVAILABLE)

51446-031-000

Unavailable

13

GUIDE, FORK (25MM) This part replaces 51451-031-000.

94602-25001

Unavailable

13

GUIDE, FORK (25MM) This part replaces 51476-031-000.

94602-25001

Unavailable

14

GUIDE, FR. FORK SPRING (NOT AVAILABLE)

51475-061-010

Unavailable

15

GUIDE A, FR. FORK SPRING (NOT AVAILABLE)

51476-061-000

Unavailable

16

O-RING (8.4X2.4) This part replaces 51493-273-000.

94608-10000

$1.49

16

O-RING (8.4X2.4)

94608-10000

$1.49

17

FORK ASSY., L. FR.

51500-051-691S

Unavailable

17

FORK ASSY., L. FR. This part replaces 51500-061-010S.

51500-051-691S

Unavailable

18

CASE, L. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 51520-061-010S.

51520-115-700S

Unavailable

18

CASE, L. FR. FORK (LOWER) *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

51520-115-700S

Unavailable

19

COVER, R. FR. FORK (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

51602-111-670XW

Unavailable

20

COVER, L. FR. FORK (UPPER) *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

51606-111-670XW

Unavailable

21

RIB, FR. FORK (NOT AVAILABLE)

51608-051-691

Unavailable

22

BOOT, FR. FORK

51611-061-000

Unavailable

23

GASKET, FR. FORK RIB (NOT AVAILABLE)

51624-242-000

Unavailable

24

BOLT, FORK A This part replaces 90123-051-000.

94605-10101

$5.21

24

BOLT, FORK A

94605-10101

$5.21

25

WASHER, ADJUST HANDLE THRUST

90553-702-000

Unavailable

26

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

27

CIRCLIP (INNER) (35MM) (NOT AVAILABLE) This part replaces 90661-031-000.

94536-35120

Unavailable

27

CIRCLIP (INNER) (35MM) (SOURCE: VINTAGE PARTS INC.)

94536-35120

Unavailable

28

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

28

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

28

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

29

WASHER, PLAIN (10MM)

94101-10000

$1.49
