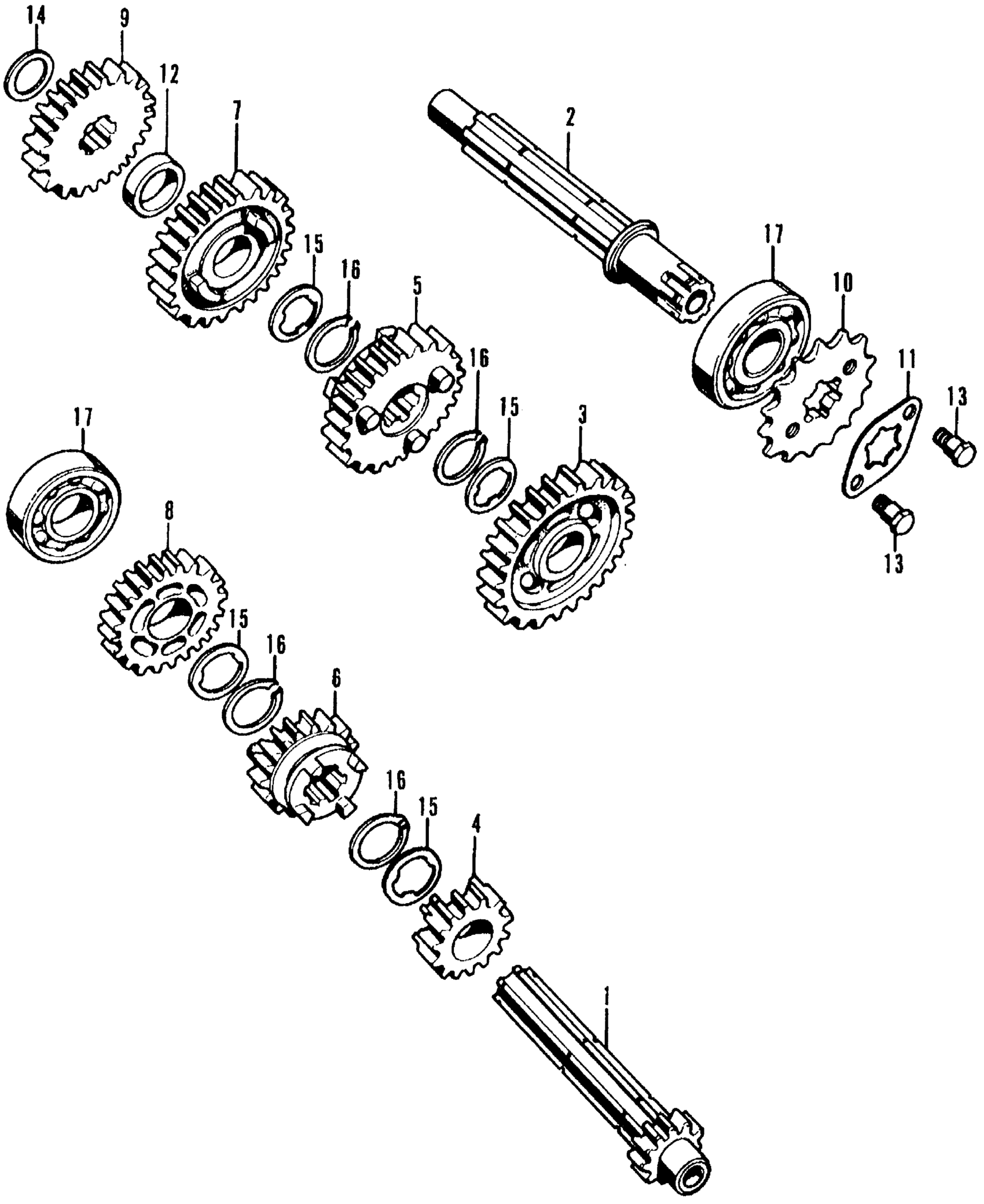

Honda CL70A MOTORCYCLE, JPN, VIN# CL70-100001 TO CL70-108641 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION (13T) (NOT AVAILABLE)

23211-065-010

Unavailable

2

COUNTERSHAFT, TRANSMISSION This part replaces 23221-065-010.

23221-065-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION

23221-065-020

Unavailable

3

GEAR, COUNTERSHAFT LOW (35T) (NOT AVAILABLE)

23421-065-010

Unavailable

4

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)

23431-041-040

Unavailable

5

GEAR, COUNTERSHAFT SECOND (31T) This part replaces 23441-065-010.

23441-065-020

Unavailable

5

GEAR, COUNTERSHAFT SECOND (31T)

23441-065-020

Unavailable

6

GEAR, MAINSHAFT THIRD (20T)

23451-065-000

Unavailable

7

GEAR, COUNTERSHAFT THIRD (26T)

23461-065-000

Unavailable

8

GEAR, MAINSHAFT TOP (24T)

23471-065-010

$43.10

9

GEAR, COUNTERSHAFT TOP (23T)

23481-065-010

Unavailable

10

SPROCKET, DRIVE (13T)

23800-GB4-000

$16.99

10

SPROCKET, DRIVE (13T) This part replaces 23800-041-010.

23800-GB4-000

$16.99

11

PLATE, DRIVE SPROCKET FIXING

23802-041-010

$2.02

12

COLLAR, GEAR This part replaces 23911-065-005.

23911-065-000

Unavailable

13

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

14

WASHER (13.5MM)

90451-035-000

Unavailable

15

WASHER, SPLINE (17MM)

90461-035-000

$2.57

16

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

17

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

17

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
