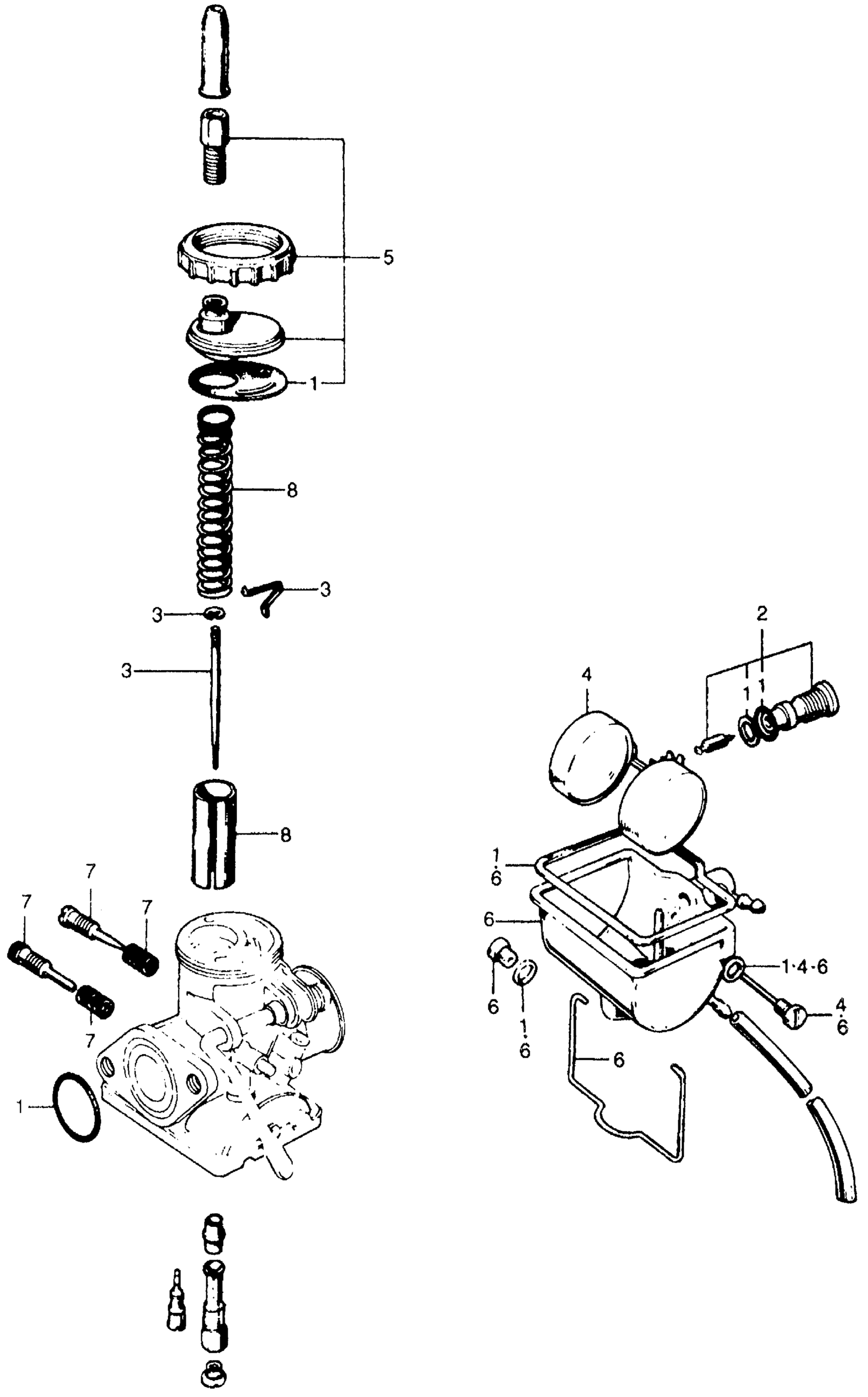

Honda CL70A MOTORCYCLE, JPN, VIN# CL70-100001 TO CL70-108641 CARBURETOR COMPONENT SETS Diagram

#

Description

Price

1

GASKET SET This part replaces 16010-061-004.

16010-061-305

Unavailable

1

GASKET SET

16010-061-305

Unavailable

2

VALVE SET, FLOAT

16011-061-004

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-061-024

$33.36

4

FLOAT SET

16013-051-004

Unavailable

5

TOP SET (NOT AVAILABLE) This part replaces 16014-051-004.

16014-088-004

Unavailable

6

CHAMBER SET, FLOAT (NOT AVAILABLE)

16015-051-690

Unavailable

7

SCREW SET A

16016-KJ2-671

Unavailable

7

SCREW SET A This part replaces 16016-035-004.

16016-KJ2-671

Unavailable

8

VALVE SET A, THROTTLE (NOT AVAILABLE)

16022-088-004

Unavailable
