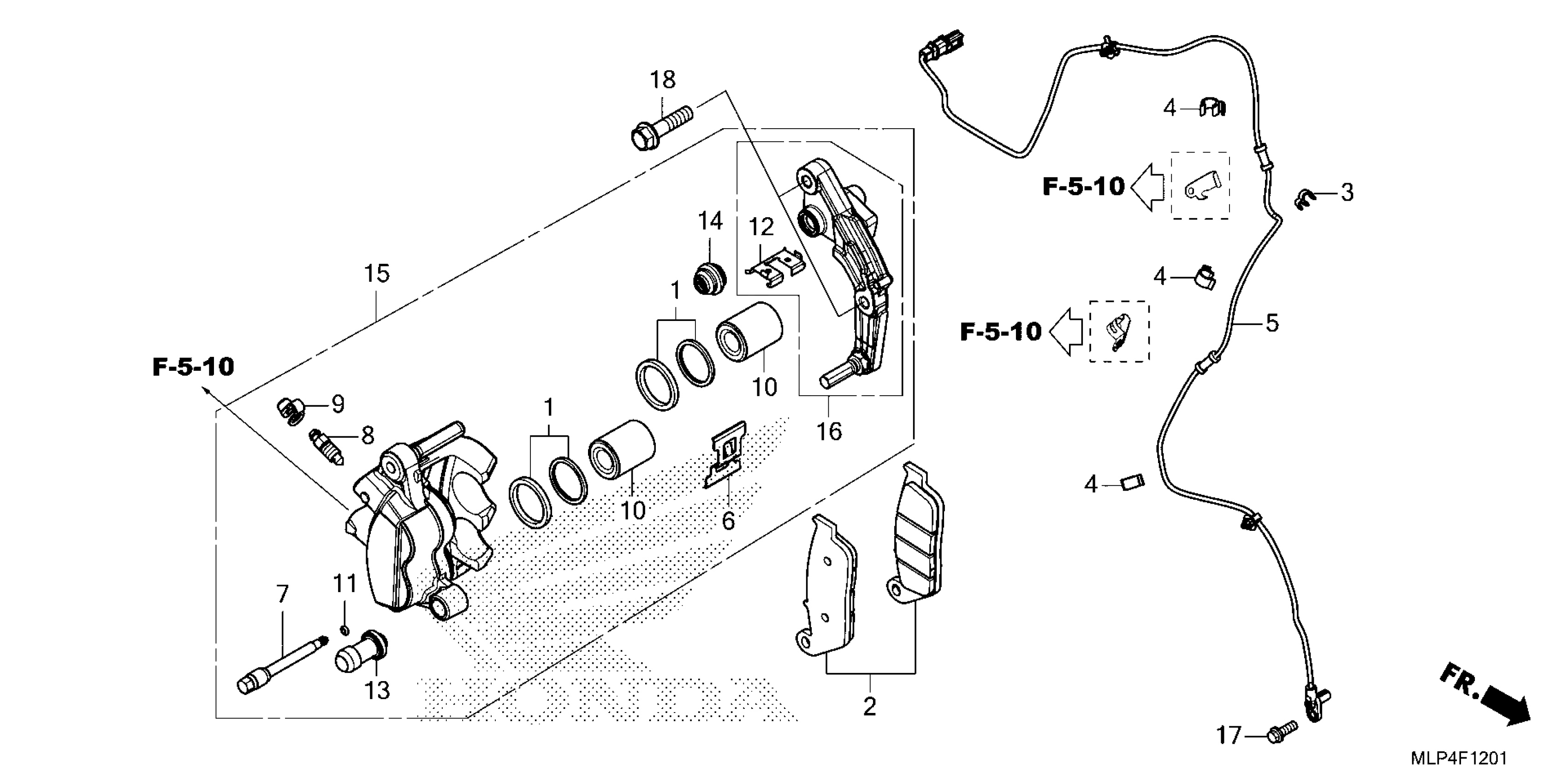

Honda CL500AAC (25) MOTORCYCLE, THA, VIN# MLHPC675-S5200001 TO MLHPC675-S5299999 FRONT BRAKE CALIPER (CL500AS) Diagram

Description

Price

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

PAD SET, FR.

06455-K3S-JA1

$68.77

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$2.87

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.51

SENSOR, FR. SPEED

38520-K3S-JB1

$15.72

SPRING, PAD

43108-MCT-006

$4.69

PIN, HANGER

43215-KZ4-J41

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON (NISSIN)

45107-ML4-006

$34.77

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER

45112-ML7-921

$5.21

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

CALIPER SUB-ASSY.

45250-K3S-JB1

$105.22

BRACKET SUB-ASSY.

45290-K3S-JB1

$22.51

BOLT, FLANGE (6X16)

90116-MKP-DN0

$0.99

BOLT, FLANGE (8X32)

90131-K2Y-A00

$0.93
