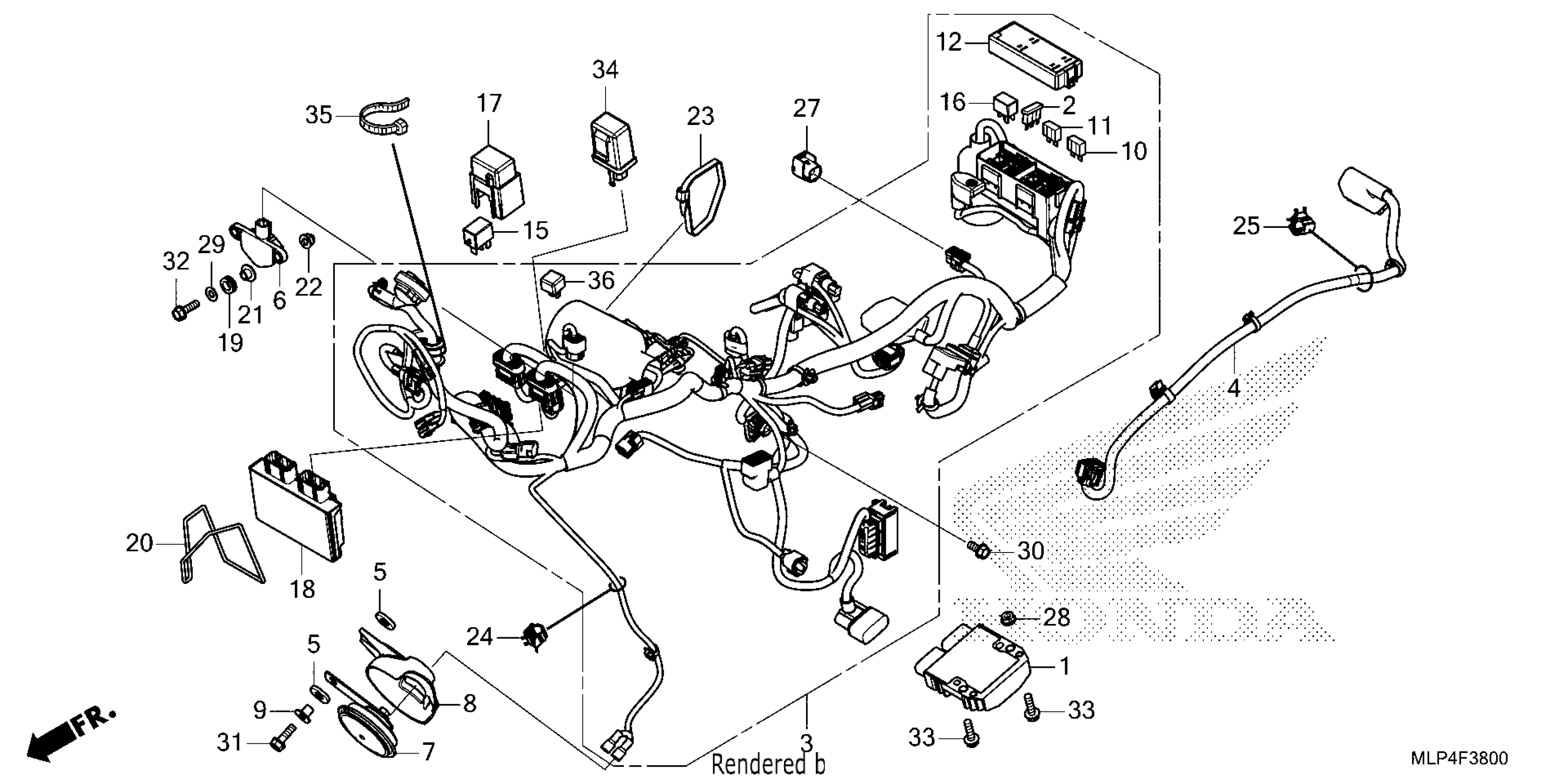

Honda CL500AAC (24) MOTORCYCLE, THA, VIN# MLHPC675-R5100001 TO MLHPC675-R5199999 WIRE HARNESS Diagram

#

Description
Price

1

RECTIFIER ASSY., REGULATOR

31600-MKN-D51

$173.16

2

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

3

WIRE HARNESS

32100-MLP-AA0

$943.93

4

SUB HARN, RR.

32108-K3S-JA0

$24.00

5

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.32

6

SENSOR ASSY., BANK ANGLE (M6)

35160-KVS-751

$100.22

7

HORN (HIGH)

38110-MGZ-J01

$25.68

8

HEAT GUARD, HORN

38111-MGZ-J00

$3.87

9

COLLAR, HORN SETTING

38117-MGZ-J00

$1.60

10

FUSE, BLADE (10A)

38221-SNA-A41

$2.96

11

FUSE, BLADE (30A)

38221-SNA-A81

$2.24

12

COVER COMP (UPPER)

38255-K3S-JA0

$19.76

15

RELAY ASSY., POWER (MICRO ISO 4P) (MITSUBA)

38501-KVZ-631

$9.86

16

RELAY (MICRO ISO 4P)

38501-MKP-DN1

Unavailable

17

COVER, RELAY (2P)

38506-KZZ-900

$3.34

18

UNIT COMP

38770-MLP-AA2

$373.03

19

RUBBER, SIDE COVER

64535-MFJ-D00

$1.79

20

BAND, TOOL

80123-GN5-900

$2.47

21

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.12

22

NUT, CAP (6MM)

90202-KCW-870

$2.69

23

BAND, WIRE HARNESS

90620-SB2-003

$23.88

24

CLIP, CABLE (8MM)

90690-GHB-631

$2.01

25

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.01

27

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$20.76

28

NUT, FLANGE (6MM)

94050-06070

$1.34

29

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable

30

BOLT, FLANGE (6X14)

95701-06014-08

$1.50

31

BOLT, FLANGE (6X20)

95701-06020-07

$1.50

32

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

33

BOLT, FLANGE (6X22)

95701-06022-07

$0.87

34

RELAY, TURN SIGNAL

38301-KZZ-J01

$52.56

35

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.40

36

RECTIFIER, SILICON

31700-MM8-610

$23.09
