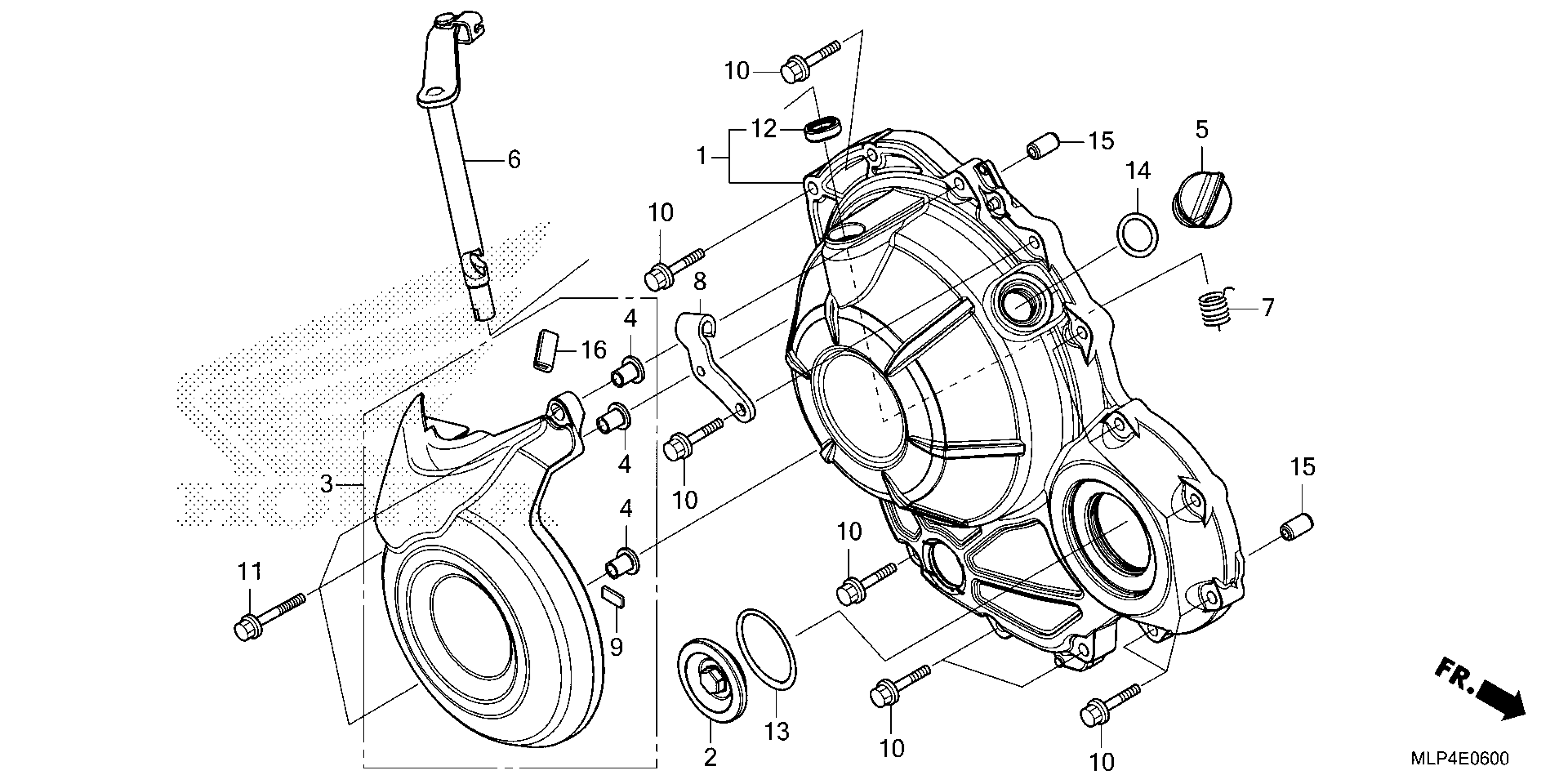

Honda CL500AAC (24) MOTORCYCLE, THA, VIN# MLHPC675-R5100001 TO MLHPC675-R5199999 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-MKP-D80

$88.52

CAP (45MM)

11332-MGZ-J00

$20.30

COVER COMP

11380-MLP-AA0

$18.66

COLLAR (6.5X10.5)

11382-MKG-A00

$1.66

CAP, OIL FILLER

15611-KA4-710

$13.22

LEVER, CLUTCH

22810-MKP-D00

$30.69

SPRING, CLUTCH LEVER

22815-MJE-D00

$1.01

RECEIVER, CLUTCH CABLE

22821-MKP-D00

$5.09

RUBBER, HANDLE COVER

53209-K0G-900

$1.10

BOLT, FLANGE (6X28) (S-NSHF)

90028-GHB-690

$1.01

BOLT, FLANGE (6X40) (S-NSHF)

90028-GHB-740

$2.16

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

Unavailable

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.74

O-RING (18X3)

91307-035-000

$2.75

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.62

PROTECTOR, RUBBER

77212-MFJ-D00

$1.60
