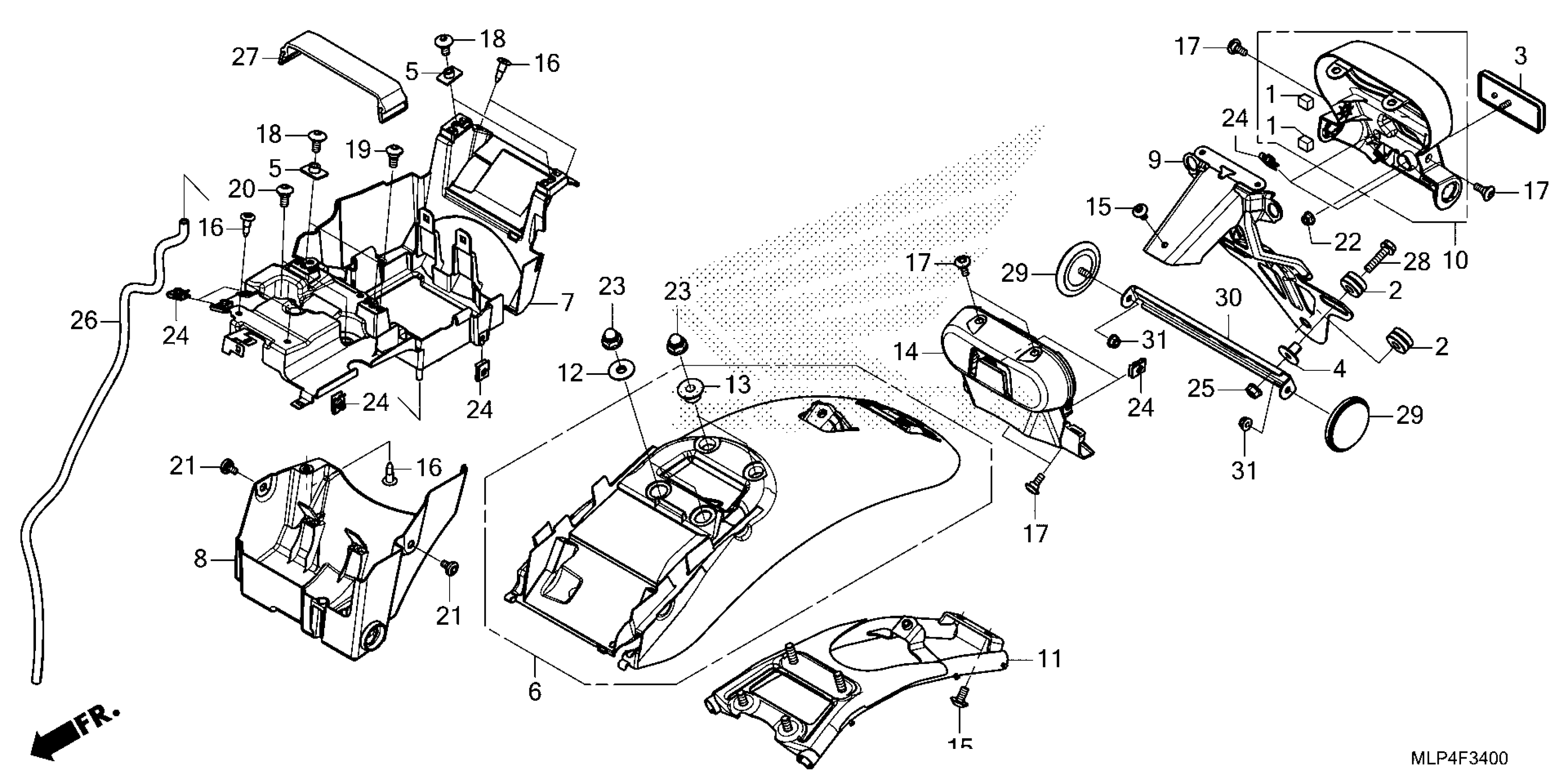

Honda CL500AAC (24) MOTORCYCLE, THA, VIN# MLHPC675-R5100001 TO MLHPC675-R5199999 REAR FENDER Diagram

#

Description
Price

1

RUBBER B, R. COVER

11391-MKG-A00

$3.12

2

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.80

3

REFLECTOR, REFLEX

33741-KPL-902

$7.03

4

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

Unavailable

5

NUT, SPECIAL (6X7)

61304-958-003

$3.10

6

FENDER, RR. *NH436M*

80100-K3S-JA0ZA

$36.18

7

FENDER B, RR.

80105-K3S-JA0

$12.15

8

COVER, CANISTER

80106-K3S-JA0

$7.49

9

BRKT, NUMBER PLATE

80115-K3S-JA0

$40.69

10

FENDER A ASSY., RR.

80120-K3S-JA0

$9.51

11

STAY COMP, RR.

80132-K3S-JA0

$91.41

12

COLLAR, RR. (8.2X2)

80138-K3S-JA0

$2.15

13

COLLAR, RR. (8.2X10)

80139-K3S-JA0

$2.51

14

COVER, TAILLIGHT

80140-K3S-JA0

$6.12

15

BOLT, SOCKET SPECIAL (6X12)

90101-K87-A00

$0.99

16

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

17

SCREW, SPECIAL (5X14)

90124-MKN-D50

$1.24

18

SCREW, PAN (6X14)

90125-MKN-D50

$1.24

19

SCREW, SPECIAL (6X14)

90127-MKN-D50

$1.24

20

SCREW, SPECIAL (6MM)

90137-MCA-000

$2.80

21

BOLT, SPECIAL (5X10)

90138-K87-A30

$1.07

22

NUT, U (5MM)

90301-KWN-901

$0.62

23

NUT, U FLANGE CAP (8MM)

90309-K87-A01

$3.37

24

NUT, CLIP (5MM)

90677-KAN-961

$3.89

25

NUT, FLANGE (6MM)

94050-06000

$0.60

26

BULK HOSE, VACUUM (5X3000) (5X180)

95005-50003-30M

Unavailable

27

BAND F, BATTERY (155MM)

95012-17001

$6.90

28

BOLT, FLANGE (6X25)

95701-06025-00

$1.79

29

REFLECTOR, RR. REFLEX (RED)(THAI STANLEY)

33741-K2E-A01

$21.78

30

STAY, RR. SIDE REFLECTOR

80116-K87-A30

$12.01

31

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.28
