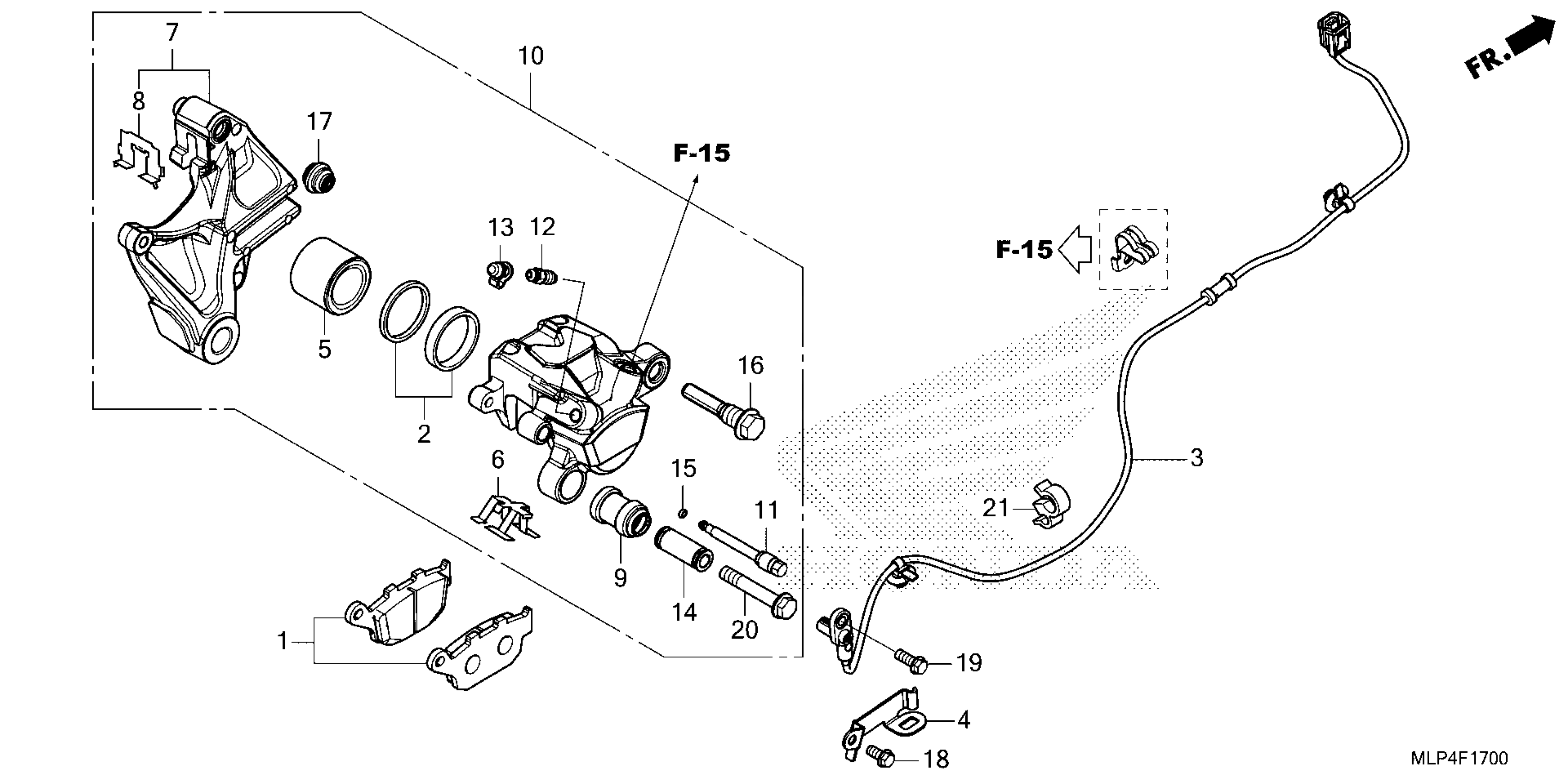

Honda CL500AAC (24) MOTORCYCLE, THA, VIN# MLHPC675-R5100001 TO MLHPC675-R5199999 REAR BRAKE CALIPER Diagram

Description

Price

PAD SET, RR.

06435-MGZ-J02

$27.28

SEAL SET, PISTON

06451-443-405

$11.88

SENSOR, RR.

38510-K3S-JA1

$20.20

STAY, SENSOR WIRE

38515-K87-A00

$7.74

PISTON

43107-KT7-761

$34.00

SPRING, PAD

43108-MBB-006

$5.75

BRACKET COMP, RR.

43110-K3S-JA1

$56.74

RETAINER

43112-KT7-761

$8.46

BOOT, SLEEVE

43132-KT7-761

$7.66

CALIPER SUB-ASSY.

43150-K3S-JA1

$123.51

PIN, HANGER

43215-KZ4-J41

$4.89

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.39

CAP, BLEEDER

43353-461-771

$4.70

SLEEVE

45111-MA3-006

$12.02

RING, STOPPER

45111-MAJ-G41

$3.54

BOLT, PIN

45131-MN9-006

$14.34

BOOT B

45133-MA3-006

$5.07

BOLT, FLANGE (6X10)

90013-GHB-600

$4.07

BOLT, FLANGE (6X16)

90116-MKP-DN0

$0.97

BOLT, FLANGE (8X49)

90180-MN8-006

$5.64

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.48
