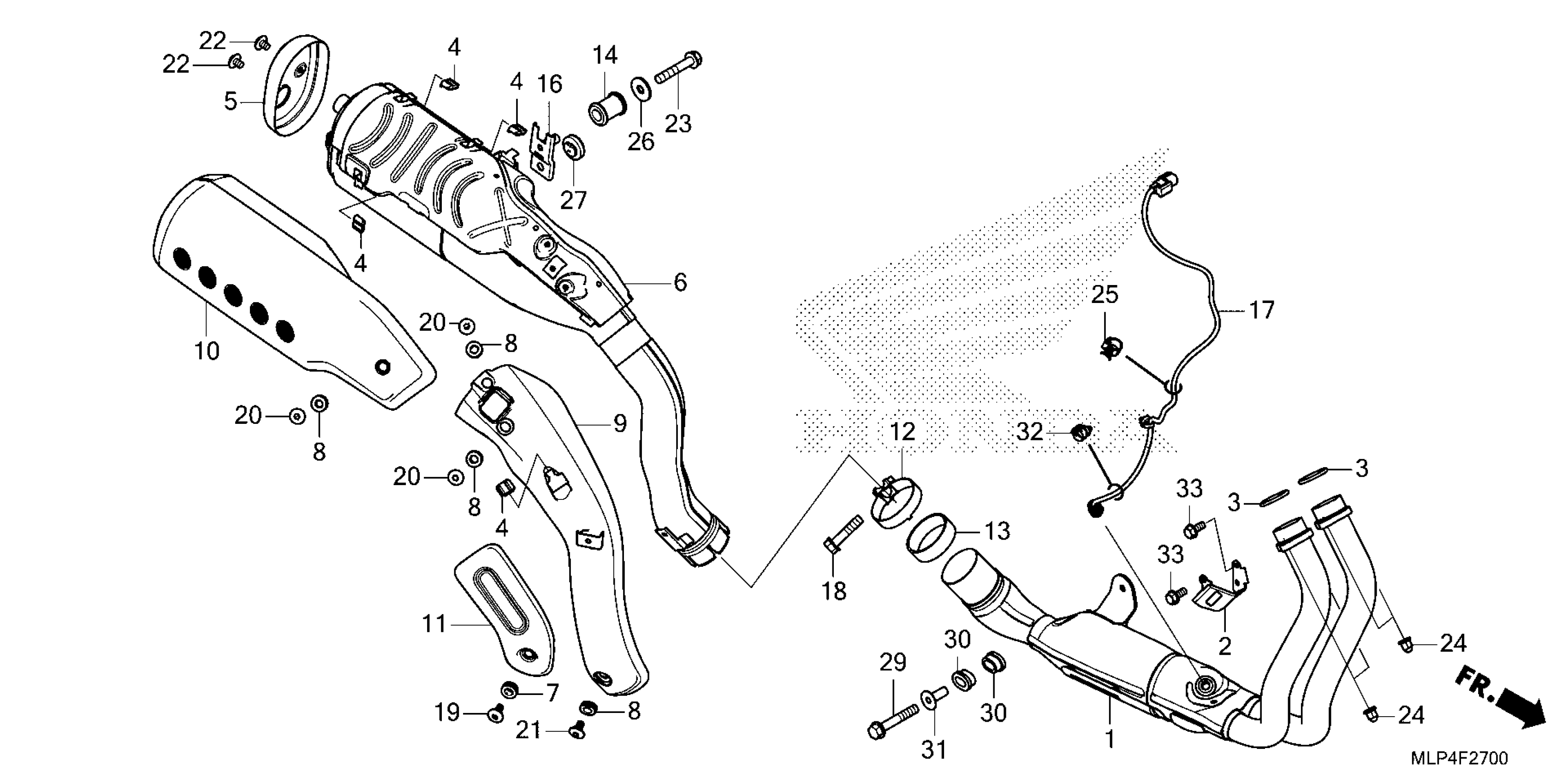

Honda CL500AAC (24) MOTORCYCLE, THA, VIN# MLHPC675-R5100001 TO MLHPC675-R5199999 MUFFLER Diagram

#

Description
Price

1

PIPE COMP, EX.

18150-MLP-AA0

$1,152.97

2

COVER, SENSOR

18190-MGZ-J40

$23.82

3

GASKET, EX. PIPE

18291-MN4-920

$5.31

4

RUBBER, PROTECTOR

18293-MN0-000

$2.13

5

CAP, TAIL

18306-K3S-JA0

$47.74

6

MUFFLER

18310-MLP-DA0

$420.33

7

RUBBER, MOUNT

18345-K15-920

$2.92

8

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

9

COVER, MUFFLER

18350-K3S-JA0

$167.62

10

COVER B, MUFFLER

18360-K3S-JA0

$184.90

11

COVER, MUFFLER

18370-K3S-JA0

$11.46

12

BAND, MUFFLER

18371-K3S-HA0

$20.03

13

GASKET, MUFFLER

18391-MGP-D60

$29.66

14

RUBBER, MUFFLER MOUNTING

18421-MB0-000

$6.34

16

COLR, MUFFLER MOUNT

18423-K3S-JA0

$10.51

17

SENSOR

36533-MKG-D81

$118.38

18

BOLT, FLANGE (8X35)

90103-KCM-620

$1.57

19

SCREW, PAN (6X14)

90113-K3S-HA0

$2.05

20

SCREW, PAN (6X12)

90114-K3S-HA0

$2.05

21

SCREW, PAN (6X12)

90115-K87-H00

$2.16

22

SCREW, PAN (6X8)

90130-MKN-D50

$1.49

23

BOLT (8X45)

90163-K3S-JA0

$1.49

24

NUT, HEX. CAP (8MM)

90304-KPH-700

$1.75

25

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

26

WASHER, PLAIN (8MM)

94103-08700

$1.49

27

RUBBER C, STAND STOPPER

95011-63000

$3.90

29

BOLT, FLANGE (8X50)

95701-08050-00

$2.28

30

RUBBER, EX. PIPE MOUNTING

18422-MGZ-J00

$9.09

31

COLLAR, EX. PIPE MOUNTING

18423-MGZ-J00

$5.10

32

CLIP, HARNESS

90683-MGC-920

$3.11

33

BOLT, FLANGE (6X14)

95701-06014-07

$1.49
