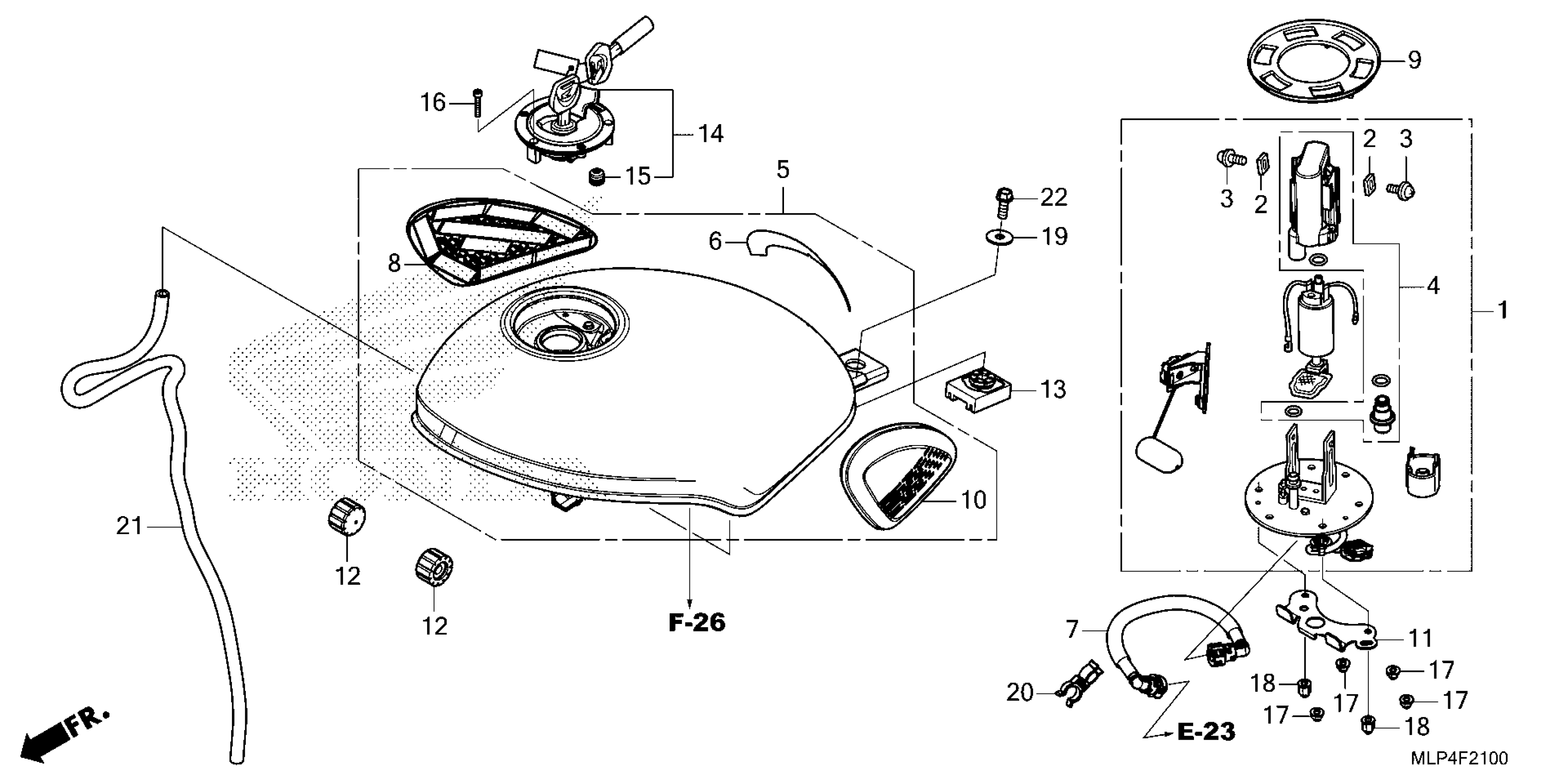

Honda CL500AAC (24) MOTORCYCLE, THA, VIN# MLHPC675-R5100001 TO MLHPC675-R5199999 FUEL TANK@FUEL PUMP (CL500AP/R) Diagram

UNIT, FUEL PUMP

16700-MLP-AA1

$458.72

STOPPER

16711-MGS-D31

$4.84

SCREW (4X6.6)

16712-MGS-D31

$1.89

FILTER ASSY., FUEL

16730-MKT-D01

$42.30

TANK, FUEL (TYPE5)

17500-MLP-AA0ZB

$550.80

TANK, FUEL (TYPE2)

17500-MLP-AA0ZC

$550.80

TANK ASSY., FUEL (TYPE6) (WL)

17500-MLP-AA0ZA

$525.48

FILM, TANK PROTECTOR

17508-K3S-JA0

$12.75

HOSE, FUEL FEED

17570-MKG-A01

$41.05

PAD COMP, R TANK

17571-K3S-JA0

$45.59

GASKET, BASE

17574-KZZ-910

$34.60

PAD COMP, L TANK

17576-K3S-JA0

$45.59

GUARD, FUEL PUMP

17580-MKG-A00

$7.69

CUSHION, FR. FUEL TANK

17611-KPK-900

$2.13

CUSHION, RR.

17613-K3S-JA0

$5.03

CAP COMP

17620-K3S-JA1

$126.89

SEAL, BREATHER

17621-MGP-D62

$5.14

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$1.49

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, HEX. CAP (6MM)

90304-KZZ-900

$5.05

WASHER (8.5X26)

90502-K87-A00

$1.49

CLAMP, FUEL HOSE (BLACK)

91593-MGZ-J01

$2.33

BULK HOSE, VACUUM (8X1000) (8X170) (BULK HOSE: 95005-80008-10M)

95005-80001-20M

$23.91

BOLT, FLANGE (8X22)

95701-08022-07

$2.16
