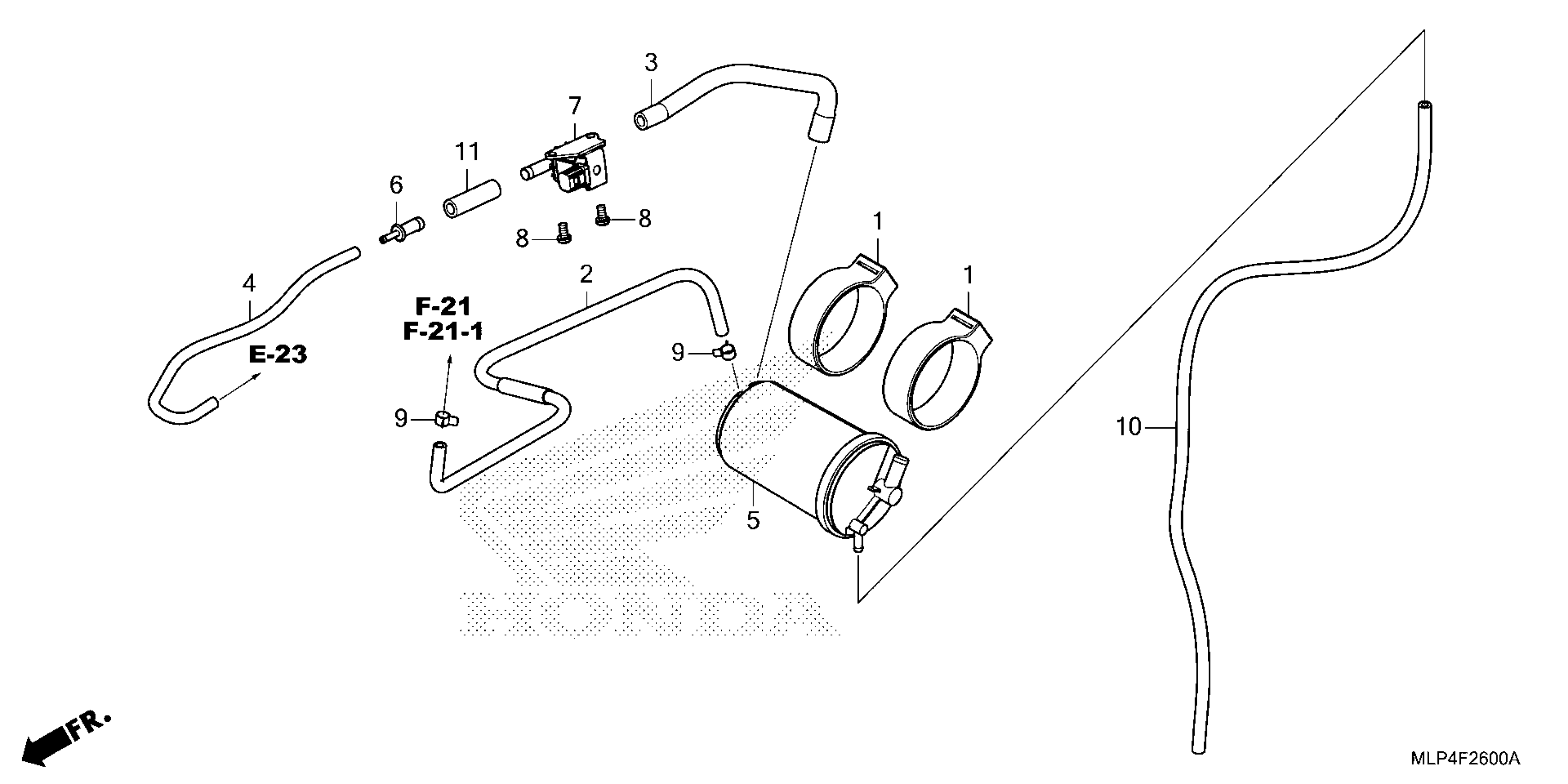

Honda CL500AAC (24) MOTORCYCLE, THA, VIN# MLHPC675-R5100001 TO MLHPC675-R5199999 CANISTER Diagram

RUBBER, CANISTER MOUNTING

17411-KPP-930

$3.84

TUBE, CHARGE

17412-MLP-AA0

$67.38

TUBE, CANISTER-PCSV

17414-K3S-JA0

$6.85

TUBE

17416-MLP-JA0

$5.28

CANISTER

17421-KYJ-902

$90.46

JOINT, TUBE

19126-KM1-010

$3.90

SOL VLV

36162-K0Z-901

$43.48

SCREW-WASHER (5X12) SCREW-WASHER (5X10)

93892-05012-07

$1.49

CLAMP, TUBE (D8)

95002-40800-08

$2.25

BULK HOSE, VACUUM (4.5X1000) (4.5X130) (BULK HOSE: 95005-45001-20M)

95005-45001-20M

$34.14

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45
