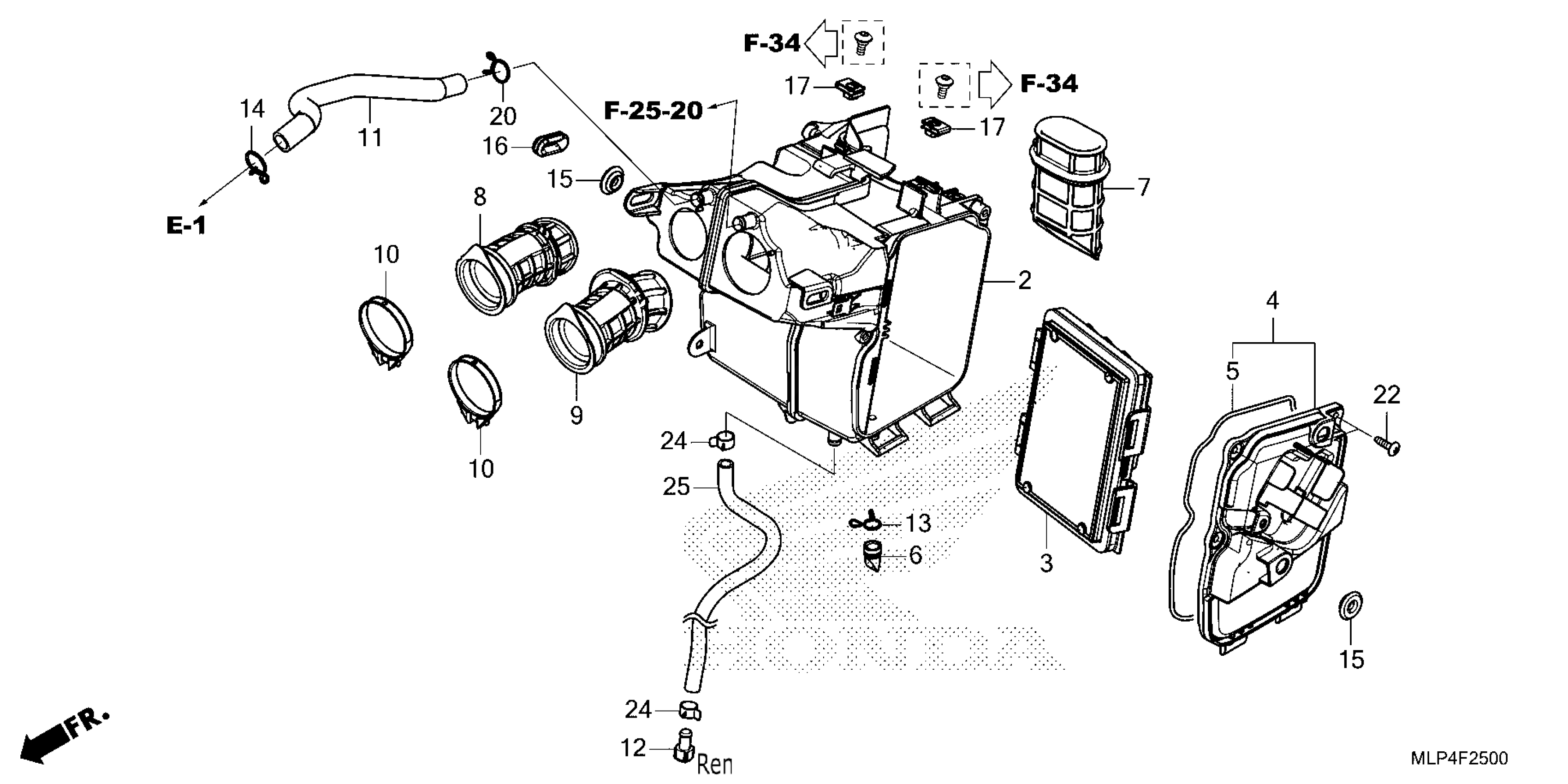

Honda CL500AAC (24) MOTORCYCLE, THA, VIN# MLHPC675-R5100001 TO MLHPC675-R5199999 AIR CLEANER Diagram

CASE COMP, AIR/C

17210-MLP-AA0

$20.25

ELEMENT, AIR CLEANER

17220-KZZ-900

$14.82

COVER, AIR CLEANER

17230-K87-A00

Unavailable

SEAL, AIR CLEANER

17232-K87-A00

$1.99

TUBE, AIR CLEANER DRAIN

17234-KCW-871

$2.38

DUCT, AIR/C

17241-MLP-AA0

$11.49

TUBE R, CONNECTING

17251-MLP-AA0

$15.88

TUBE, L CONNECTING

17252-MLP-AA0

$16.38

BAND 50

17255-K98-E00

$2.88

TUBE, BREATHER

17265-MKG-A00

$7.90

PLUG, BREATHER TUBE

17370-419-700

$3.58

CLIP, BREATHER TUBE

17371-174-670

$2.03

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

GROMMET, SIDE COVER

83551-376-000

Unavailable

GROMMET, RR.

83601-KVN-900

$0.97

NUT, FENDER SETTING (6MM)

84601-HC4-000

$4.09

CLIP, AIR HOSE (16MM)

90646-657-000

$6.99

SCREW, TAPPING (5X20)

93903-25480

$0.84

CLAMP, TUBE (D12)

95002-41200-08

$2.31

BULK HOSE, VINYL (8X12X8000) (Honda Code 4825345) (8X12X600)

95003-23008-60M

Unavailable
