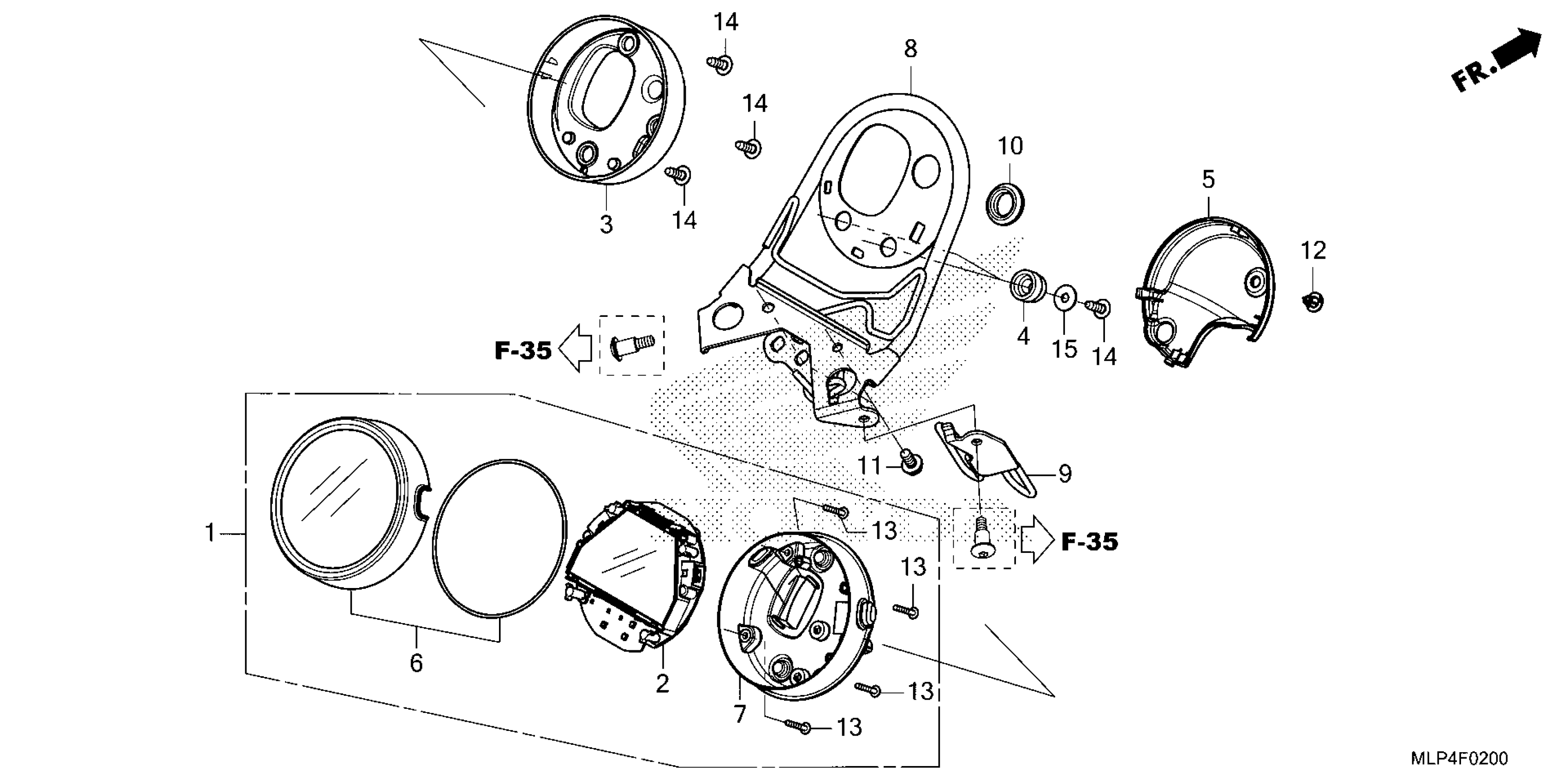

Honda CL500AAC (23) MOTORCYCLE, THA, VIN# MLHPC675-P5000001 TO MLHPC675-P5099999 SPEEDOMETER Diagram

#

Description
Price

1

METER, COMBINATION

37100-MLP-AA2

$201.63

2

METER, LCD

37130-MLP-AA2

$198.32

3

COVER, METER

37215-K3S-JA0

$6.90

4

RUBBER, METER SETTING

37215-MKK-D00

$3.59

5

COVER B, METER

37216-K3S-JA0

$6.35

6

CASE UPPER ASSY.

37610-MKG-C82

$63.50

7

CASE ASSY. (LOWER)

37620-MKG-A32

$17.97

8

STAY COMP, METER

53234-K3S-JA1

$32.06

9

STAY COMP

53240-K3S-JA0

$6.41

10

RUBBER, TAILLIGHT CODE

80103-K87-A00

$2.93

11

BOLT, FLANGE (6X12)

90031-GHB-620

$2.09

12

RIVET, PUSH (6MM)

90116-K0A-E11

$1.19

13

SCREW,TAPPING 3X2

93903-22580

$0.51

14

SCREW, TAPPING (5X16)

93903-25380

$0.90

15

WASHER, PLAIN (5MM)

94103-05700

$0.87
