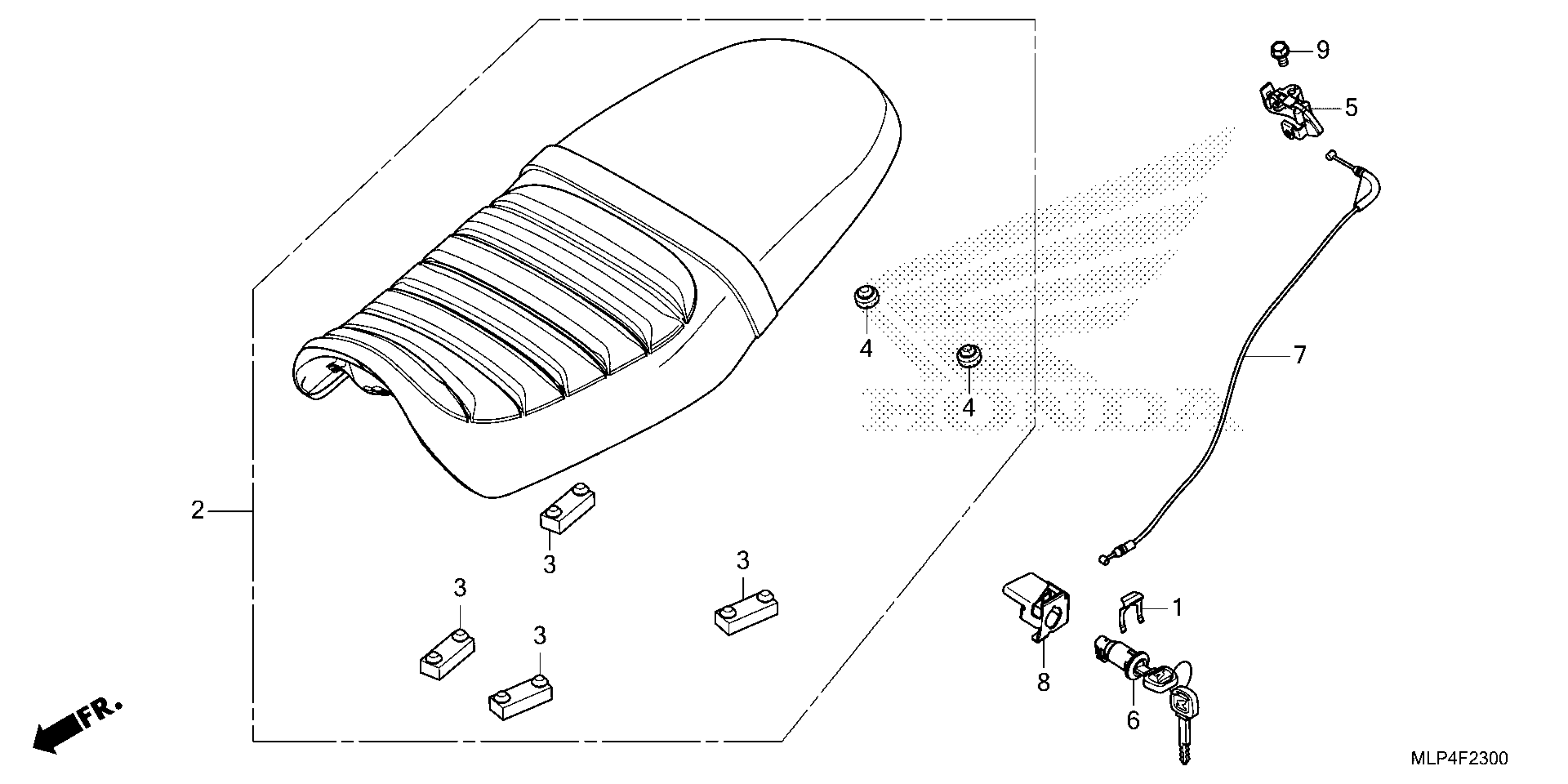

Honda CL500AAC (23) MOTORCYCLE, THA, VIN# MLHPC675-P5000001 TO MLHPC675-P5099999 SEAT Diagram

#

Description
Price

1

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.78

2

SEAT, DOUBLE (TYPE1)

77200-K3S-JA0ZA

$113.89

3

RUBBER, SEAT SETTING

77205-MFE-670

$5.92

4

RUBBER C, SEAT SETTING

77215-KW7-900

$5.44

5

HOOK, SEAT CATCH

77230-K3S-JA1

$26.31

6

KEY, SEAT LOCK

77239-KVB-900

$49.15

7

CABLE COMP

77241-K3S-JA1

$4.39

8

STAY

77321-K3S-JA0

$6.10

9

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
