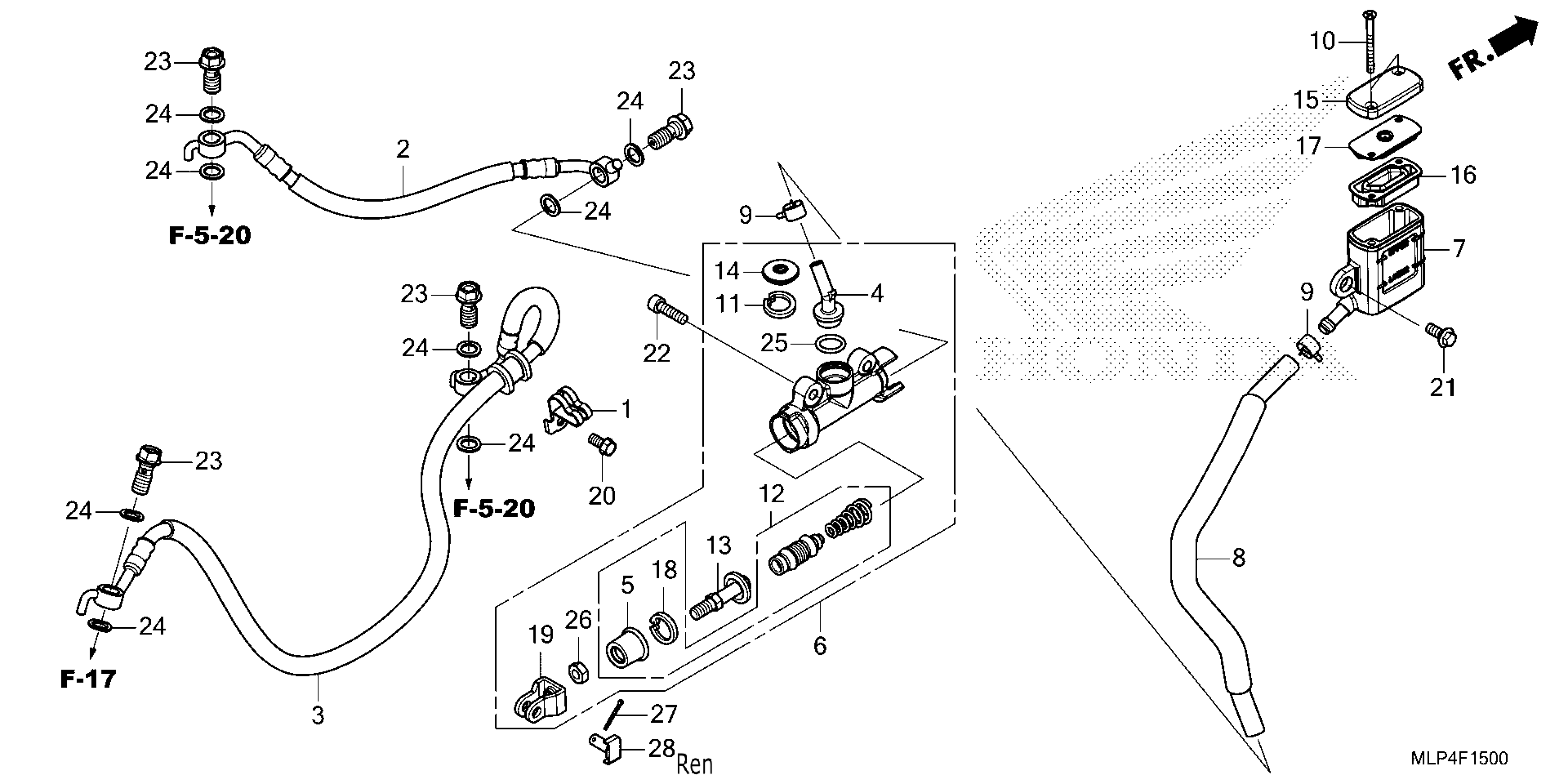

Honda CL500AAC (23) MOTORCYCLE, THA, VIN# MLHPC675-P5000001 TO MLHPC675-P5099999 REAR BRAKE MASTER CYLINDER Diagram

CLAMP, BRAKE HOSE

43155-K3S-JA0

$3.71

HOSE COMP A, RR.

43310-K3S-JA1

$13.54

HOSE COMP B, RR.

43311-K3S-JA1

$24.29

CONNECTOR, MASTER CYLINDER

43503-MFL-006

$4.31

BOOT

43504-MB2-006

$9.24

SUB-ASSY., RR. M/C

43510-MLP-AA1

$85.26

CUP, OIL

43511-K43-911

$15.60

HOSE COMP, RR. M/C

43512-MLP-AA1

$16.74

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$12.04

SCREW, FLAT (4X60)

43516-KYJ-901

$0.84

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.65

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$42.70

ROD, PUSH

43530-KZZ-901

$10.49

COVER, DUST (NISSIN)

45505-KV3-006

$3.97

CAP, MASTER CYLINDER

45513-K33-D01

$15.22

DIAPHRAGM

45520-GW0-911

$6.95

PLATE, DIAPHRAGM

45521-GW0-911

$5.47

CIRCLIP

46182-MEL-D21

$1.79

JOINT, BRAKE ROD

46504-MT8-006

$8.37

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.15

BOLT, FLANGE (6X16) (S-NSHF)

90028-GHB-640

$2.01

BOLT, SOCKET (6X22)

90111-GHB-660

$0.91

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

WASHER, OIL BOLT

90545-300-000

$5.79

O-RING (14.8X2.4)

91212-422-006

$2.37

NUT, HEX. (8MM)

94002-08000-0S

$1.31

PIN, COTTER (2.0X15)

94201-20150

$1.04

PIN D, JOINT

95015-54000

$4.05
