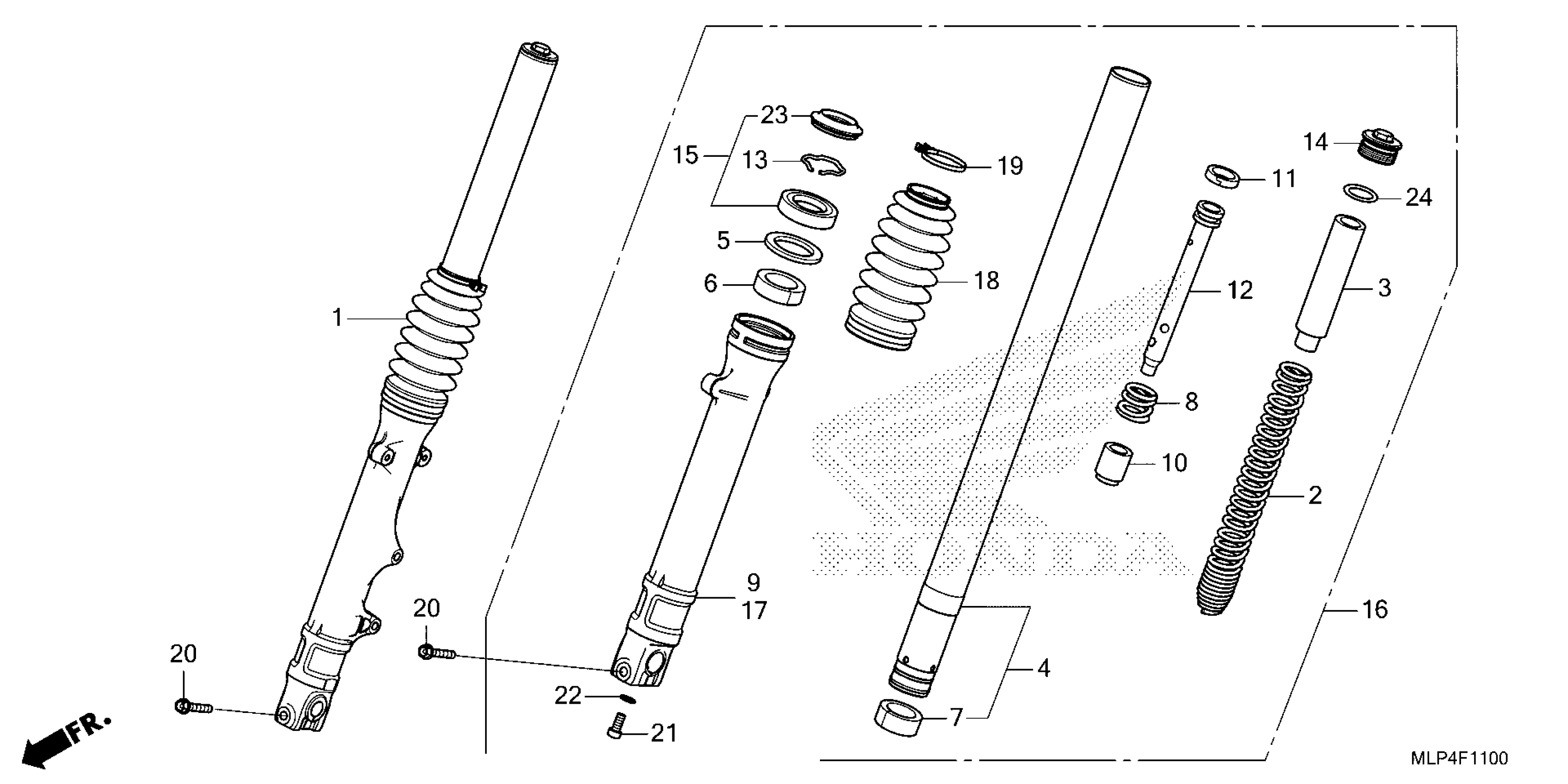

Honda CL500AAC (23) MOTORCYCLE, THA, VIN# MLHPC675-P5000001 TO MLHPC675-P5099999 FRONT FORK Diagram

FORK ASSY., FR. R

51400-MLP-AA1

$292.41

SPRING, FR. FORK

51401-MLP-AA1

$36.79

COLLAR, SPRING

51402-K87-A31

$5.08

PIPE COMP, FR. FORK

51410-K3S-JA1

$122.25

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.88

BUSH, GUIDE

51414-MFJ-A51

$6.93

BUSH, SLIDER

51415-MFJ-A51

$6.93

SPRING, FR. REBOUND (SHOWA)

51416-MM8-881

$5.62

CASE, R (LOWER)

51420-K3S-JA1

$137.21

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$22.78

RING, PISTON (SHOWA)

51437-MM5-003

$5.07

PIPE, SEAT

51440-K3S-JA1

$9.82

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

BOLT, FR. FORK

51454-MM9-671

$35.21

SEAL SET, FR. FORK

51490-MKL-D81

$23.08

FORK ASSY., FR. L

51500-MLP-AA1

$291.16

CASE, L (LOWER)

51520-K3S-JA1

$129.99

BOOT, FR. FORK

51611-K3S-JA1

$24.40

BAND, FR. FORK BOOT

51612-K87-A31

$28.56

BOLT, FLANGE (8X45)

90109-MR7-000

Unavailable

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

DUST SEAL

91251-MKL-D81

Unavailable

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.59
