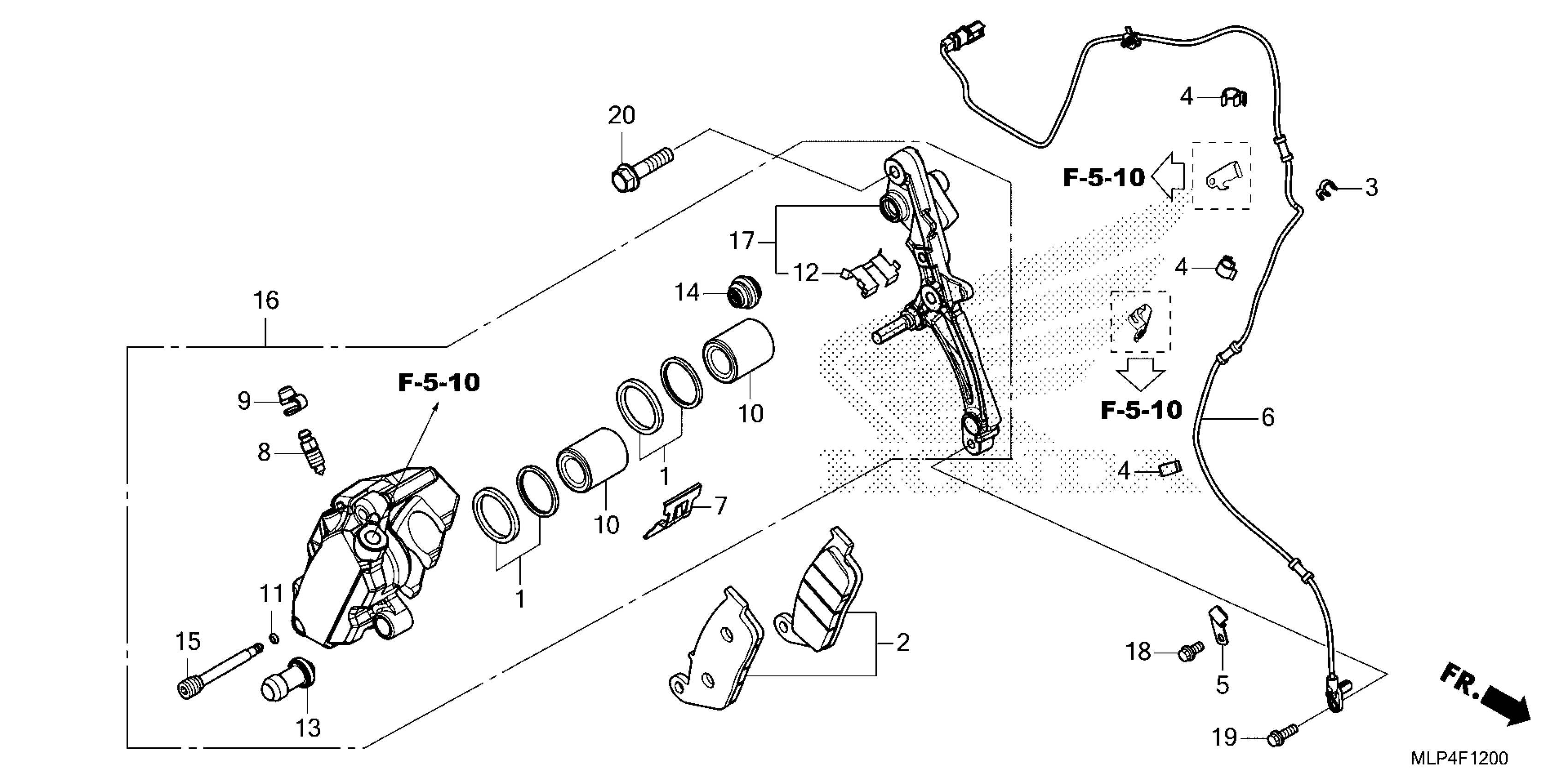

Honda CL500AAC (23) MOTORCYCLE, THA, VIN# MLHPC675-P5000001 TO MLHPC675-P5099999 FRONT BRAKE CALIPER (CL500AP/R) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

PAD SET, FR.

06455-K3S-JA1

$68.77

CLAMP, ABS WIRE (D8.5)

38516-MGE-003

$2.87

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.51

CLAMP, SENSOR WIRE

38517-MKA-D80

$0.97

SENSOR, FR.

38520-K3S-JA1

$18.50

SPRING, PAD

43108-MCT-006

$4.69

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

Unavailable

PISTON (NISSIN)

45107-ML4-006

$34.77

RING, STOPPER

45111-MAJ-G41

$3.63

RETAINER

45112-MS9-611

$5.21

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

BOOT B

45133-MA3-006

$5.21

PIN, HANGER

45215-MAJ-G41

$6.15

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MKP-J81

$165.82

BRACKET SUB-ASSY., R. FR.

45290-MKP-J81

$47.22

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.15

BOLT, FLANGE (6X16)

90116-MKP-DN0

$0.99

BOLT, FLANGE (8X32)

90131-K2Y-A00

$0.93
