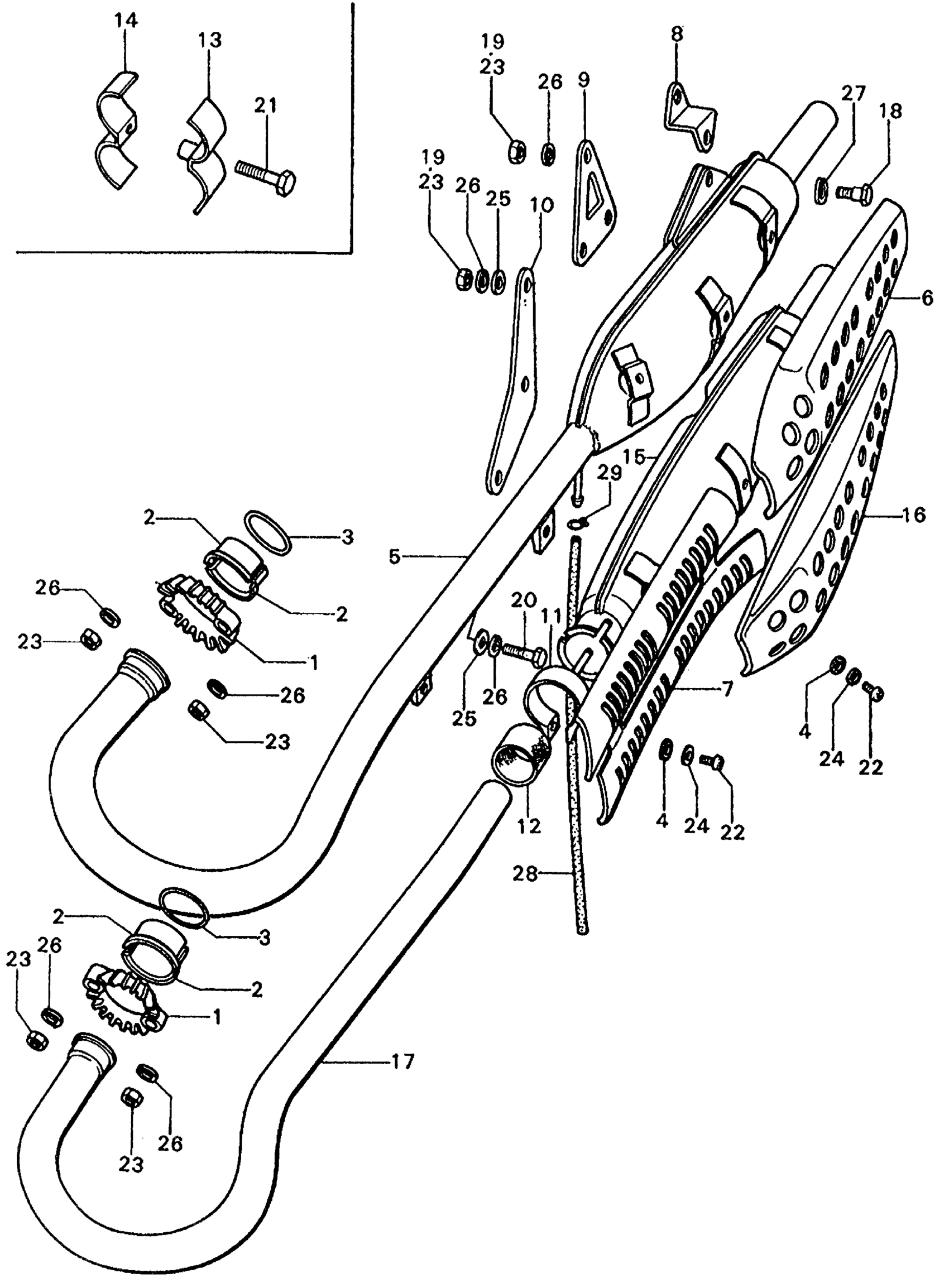

Honda CL450K6A MOTORCYCLE, JPN, VIN# CL450-6000001 TO CL450-6005014 MUFFLER K5-K6 Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-292-020

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-283-010

Unavailable

3

GASKET, EX. PIPE

18291-MM8-880

$7.16

3

GASKET, EX. PIPE This part replaces 18291-283-010.

18291-MM8-880

$7.16

3

GASKET, EX. PIPE This part replaces 18291-283-306.

18291-MM8-880

$7.16

4

GASKET, PROTECTOR

18292-167-890

$1.88

4

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

5

MUFFLER, R. EX. (NOT AVAILABLE) This part replaces 18300-458-670.

18300-458-677

Unavailable

5

MUFFLER, R. EX. (NOT AVAILABLE)

18300-458-677

Unavailable

6

PROTECTOR, R. MUFFLER (NOT AVAILABLE)

18315-347-670

Unavailable

7

PROTECTOR, EX. (NOT AVAILABLE)

18325-347-670

Unavailable

8

STAY A, MUFFLER HANGER (NOT AVAILABLE)

18340-458-670

Unavailable

9

STAY B, MUFFLER HANGER

18341-458-670

Unavailable

10

BRACKET, MUFFLER (NOT AVAILABLE)

18353-347-010

Unavailable

11

BAND, L. MUFFLER (NOT AVAILABLE)

18372-458-670

Unavailable

12

GASKET, MUFFLER This part replaces 18391-317-000.

18392-MK4-000

$13.66

12

GASKET, MUFFLER This part replaces 18391-317-010.

18392-MK4-000

$13.66

12

GASKET, MUFFLER

18392-MK4-000

$13.66

13

HOLDER A, EX. PIPE (NOT AVAILABLE)

18395-294-000

Unavailable

14

HOLDER B, EX. PIPE (NOT AVAILABLE)

18396-294-000

Unavailable

15

MUFFLER, L. This part replaces 18410-458-670.

18410-458-677

$305.49

15

MUFFLER, L.

18410-458-677

$305.49

16

PROTECTOR, L. MUFFLER

18415-347-670

Unavailable

17

PIPE, L. EX.

18420-458-670

Unavailable

18

BOLT, MUFFLER HANGER (NOT AVAILABLE)

90130-294-000

Unavailable

19

NUT, HEX. (8MM)

90309-357-000

$3.40

20

BOLT, FLANGE (8X20) This part replaces 95700-08020.

95701-08020-00

$1.78

20

BOLT, FLANGE (8X20) This part replaces 95700-08020-00.

95701-08020-00

$1.78

20

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

20

BOLT, FLANGE (8X20) This part replaces 95900-08020-00.

95701-08020-00

$1.78

21

BOLT, HEX. (8X28) This part replaces 92000-08028-0A.

92101-08028-0A

$1.80

21

BOLT, HEX. (8X28)

92101-08028-0A

$1.80

22

SCREW, PAN (6X14)

93500-06014-4J

$2.95

22

SCREW, PAN (6X14) This part replaces 93500-06014-49.

93500-06014-4J

$2.95

23

NUT, HEX. (8MM)

94001-08000-0S

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

24

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

24

WASHER, PLAIN (6MM)

94101-06800

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49

27

WASHER, SPRING (12MM)

94111-12000

$1.49

28

TUBE (5.5X350) This part replaces 15761-045-000.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50000.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50000-90.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50180.

95001-55000-40

Unavailable

28

TUBE (5.5X350) This part replaces 95001-50250.

95001-55000-40

Unavailable

28

BULK HOSE, FUEL (5.5X3000) (5.5X350)

95001-55003-60M

$47.32

29

CLIP, TUBE (C9)

95002-50000

$1.49
