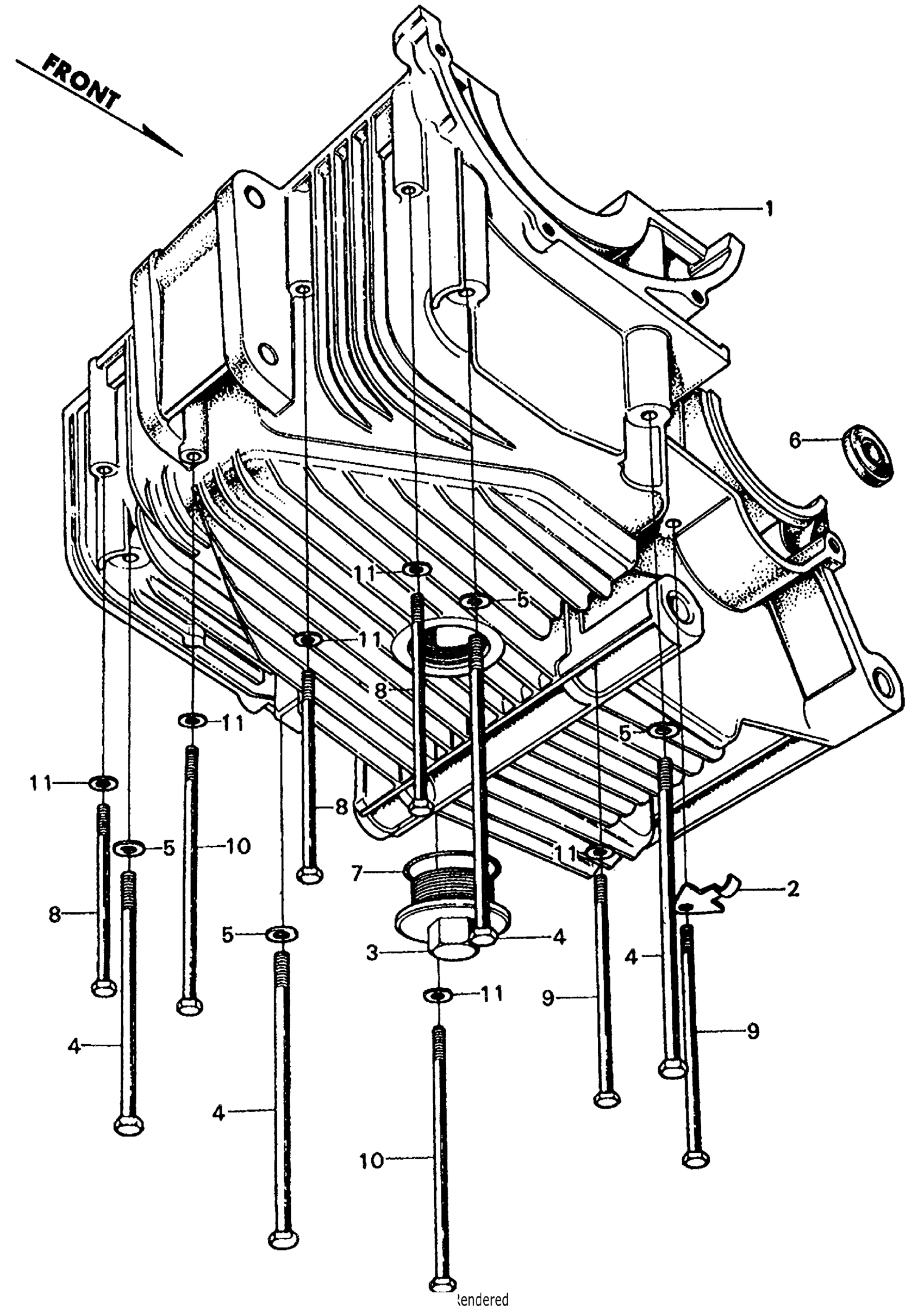

Honda CL450K6A MOTORCYCLE, JPN, VIN# CL450-6000001 TO CL450-6005014 LOWER CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (LOWER) (NOT AVAILABLE)

11200-292-080

Unavailable

2

CLAMP, MOTOR CABLE (NOT AVAILABLE)

32911-283-000

Unavailable

3

BOLT, DRAIN VALVE (NOT AVAILABLE)

90013-312-000

Unavailable

4

BOLT, HEX. (8X132)

90085-292-000

$7.16

5

WASHER, HEAD (8MM) | Use up to Engine SN 6000585

90402-822-000

$1.49

5

WASHER, SEAL (8MM) | Use from Engine SN 6000586

90441-286-000

$1.90

6

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.57

6

OIL SEAL (12X25X4.5) This part replaces 91201-292-003.

91202-426-003

$5.57

6

OIL SEAL (12X25X4.5)

91202-426-003

$5.57

7

O-RING (33.5X3.0) This part replaces 91302-200-000.

91304-HB3-003

$7.70

7

O-RING (33.5X3.0) This part replaces 91302-943-003.

91304-HB3-003

$7.70

7

O-RING (33.5X3.0)

91304-HB3-003

$7.70

9

BOLT, FLANGE (6X90) This part replaces 95700-06090.

95701-06090-00

$1.92

9

BOLT, FLANGE (6X90) This part replaces 95700-06090-00.

95701-06090-00

$1.92

9

BOLT, FLANGE (6X90)

95701-06090-00

$1.92

10

BOLT, FLANGE (6X125) This part replaces 95700-06125.

95701-06125-00

Unavailable

10

BOLT, FLANGE (6X125) This part replaces 95700-06125-00.

95701-06125-00

Unavailable

10

BOLT, FLANGE (6X125)

95701-06125-00

Unavailable

11

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

11

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

11

WASHER, PLAIN (6MM)

94101-06800

$1.49
