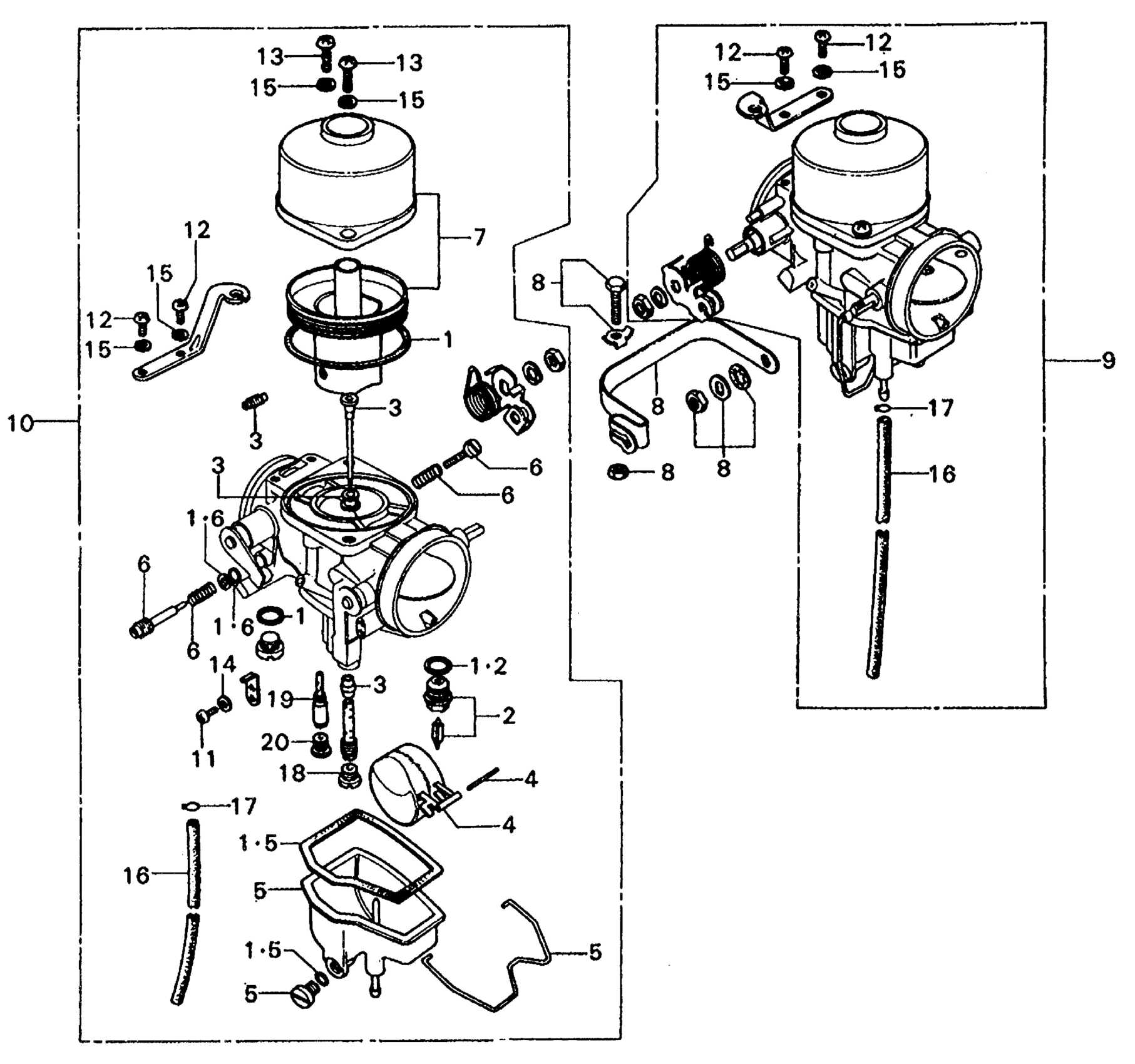

Honda CL450K5A MOTORCYCLE, JPN, VIN# CL450-5000001 TO CL450-5019216 CARBURETOR Diagram

#

Description
Price

1

GASKET SET

16010-346-305

$9.23

1

GASKET SET This part replaces 16010-346-004.

16010-346-305

$9.23

2

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

2

VALVE SET, FLOAT

16011-375-004

$28.96

3

NEEDLE SET, JET (KEIHIN) (NOT AVAILABLE)

16012-346-004

Unavailable

4

FLOAT SET (NOT AVAILABLE)

16013-551-950

Unavailable

5

CHAMBER SET, FLOAT (KEIHIN) (NOT AVAILABLE)

16015-346-004

Unavailable

6

SCREW SET A (NOT AVAILABLE) This part replaces 16016-346-004.

16016-344-690

Unavailable

7

PISTON SET, VACUUM (NOT AVAILABLE)

16022-292-004

Unavailable

8

JOINT SET, CONNECTOR (NOT AVAILABLE)

16025-292-004

Unavailable

9

CARBURETOR ASSY., R. (NOT AVAILABLE)

16101-346-690

Unavailable

10

CARBURETOR ASSY., L.

16102-346-690

Unavailable

11

SCREW, PAN (3X5)

93500-03005-0A

$1.49

12

SCREW, PAN (5X10)

93500-05010-0A

$1.49

13

SCREW, PAN (5X16)

93500-05016-0A

$1.49

14

WASHER, SPRING (3MM)

94111-03000

$1.49

15

WASHER, SPRING (5MM)

94111-05000

$1.49

16

BULK HOSE, FUEL (3.5X3000) (3.5X360)

95001-35003-60M

$20.85

17

CLIP, TUBE (B7)

95002-02070

$1.80

18

JET, MAIN (#145) (NOT AVAILABLE)

99114-292-1450

Unavailable

19

JET, SLOW (#38) (NOT AVAILABLE)

99124-292-0380

Unavailable

20

JET, PILOT (#38) (NOT AVAILABLE)

99144-292-0380

Unavailable
